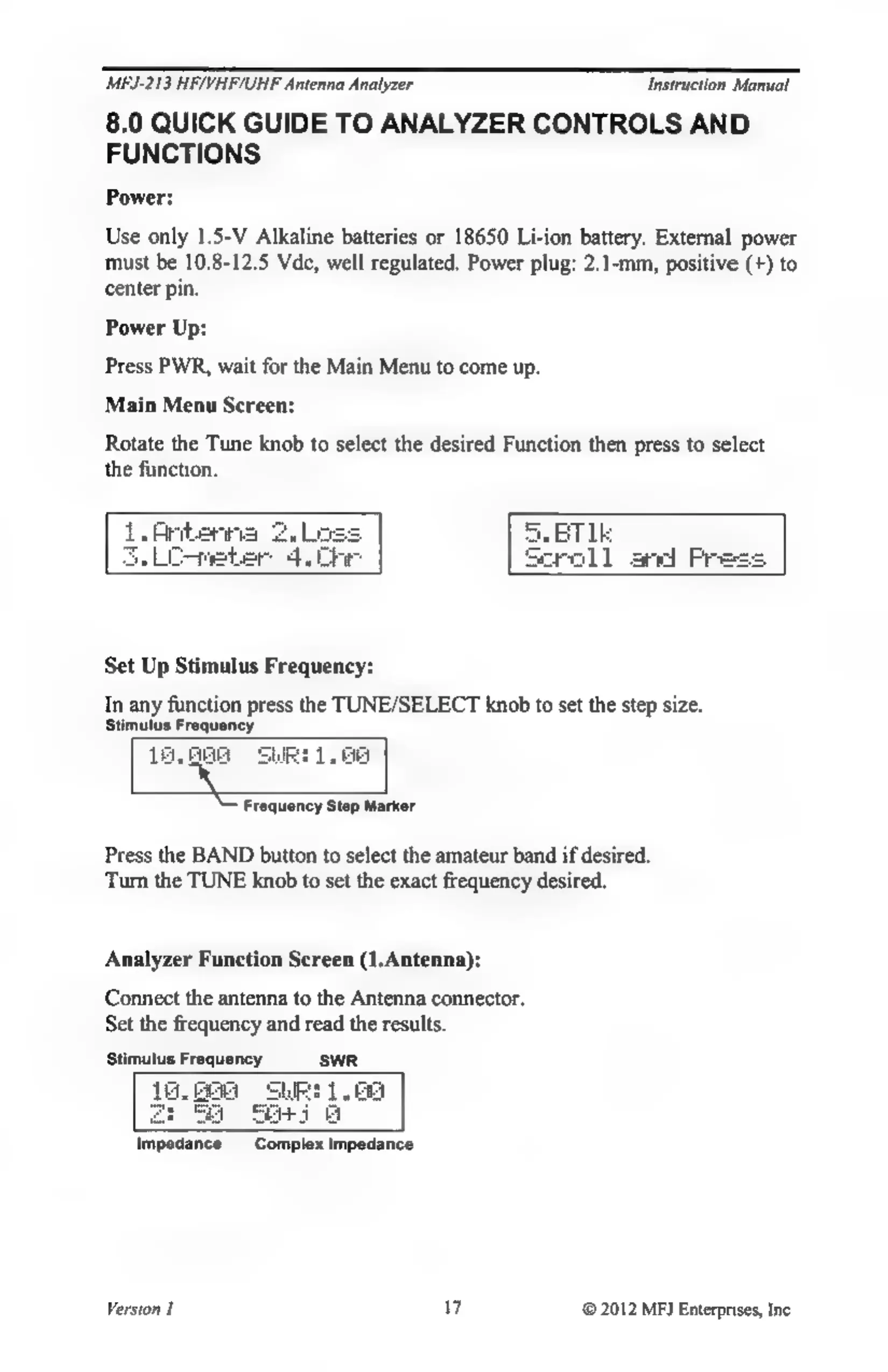

8.0 QUICK GUIDE TO ANALYZER CONTROLS AND
FUNCTIONS
Power:
Use only 1.5-V Alkaline batteries or 18650 Li-ion battery. External power
must be 10.8-12.5 Vdc, well regulated. Power plug: 2.1-mm, positive (+) to
center pin.
Power Up:
Press PWR, wait for the Main Menu to come up.
Main Menu Screen:
Rotate the Tune knob to select the desired Function then press to select
the function.
S.BT1k
Scroll and Pres
Set Up Stimulus Frequency:
In any function press the TUNE/SELECT knob to set the step size.
Stimulus Frequency
1H.6
a 2
Frequency Step Marker
221.68
Press the BAND button to select the amateur band if desired.
Turn the TUNE knob to set the exact frequency desired.
Analyzer Function Screen (1.Antenna):
Connect the antenna to the Antenna connector.
Set the frequency and read the results.
Stimulus Frequency
Impedance Complex Impedance
