MFJ-935C High-Efficiency Magnetic Loop Tuner Instruction & Technical Manual

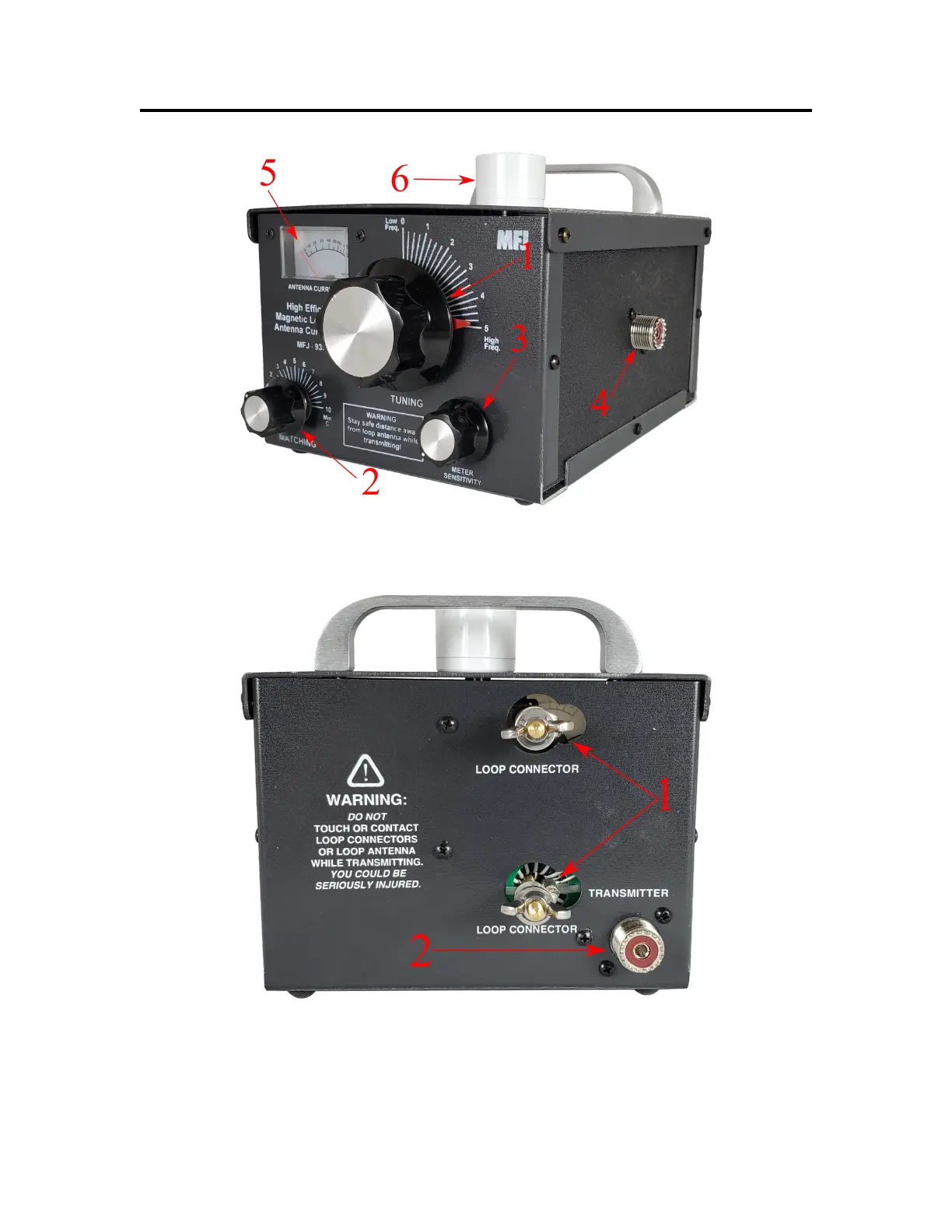

Figure 4: Front-panel Controls: 1.) Tuning Control, 2.) Matching
Control, 3.) Meter Sensitivity, 4.) Coax Output, 5.) Antenna Current
Meter, 6.) PVC Mount
Figure 5: Rear-panel Connections: 1.) Wire loop connectors, 2.) Coax input
This unit is not intended for outdoor installation except during portable operation and must be
protected from the elements.
