Blaze EMS-2 Operating Manual Page 20
Low Caution:
Enter the pressure value for the low caution. This is the upper value of the lower yellow band.
Low Alarm:
This enables or disables the pressure low alarm.
Low Alarm:
Enter the pressure threshold for when the low alarm must be activated. Any pressure below this value will activate the
alarm.
Data:
Select the data source of the pressure signal. Options include internal (using one of the analog channels within the EMS-
2) or from an optional external RDAC unit.
RDAC Address:
Select the CAN address of the RDAC unit.

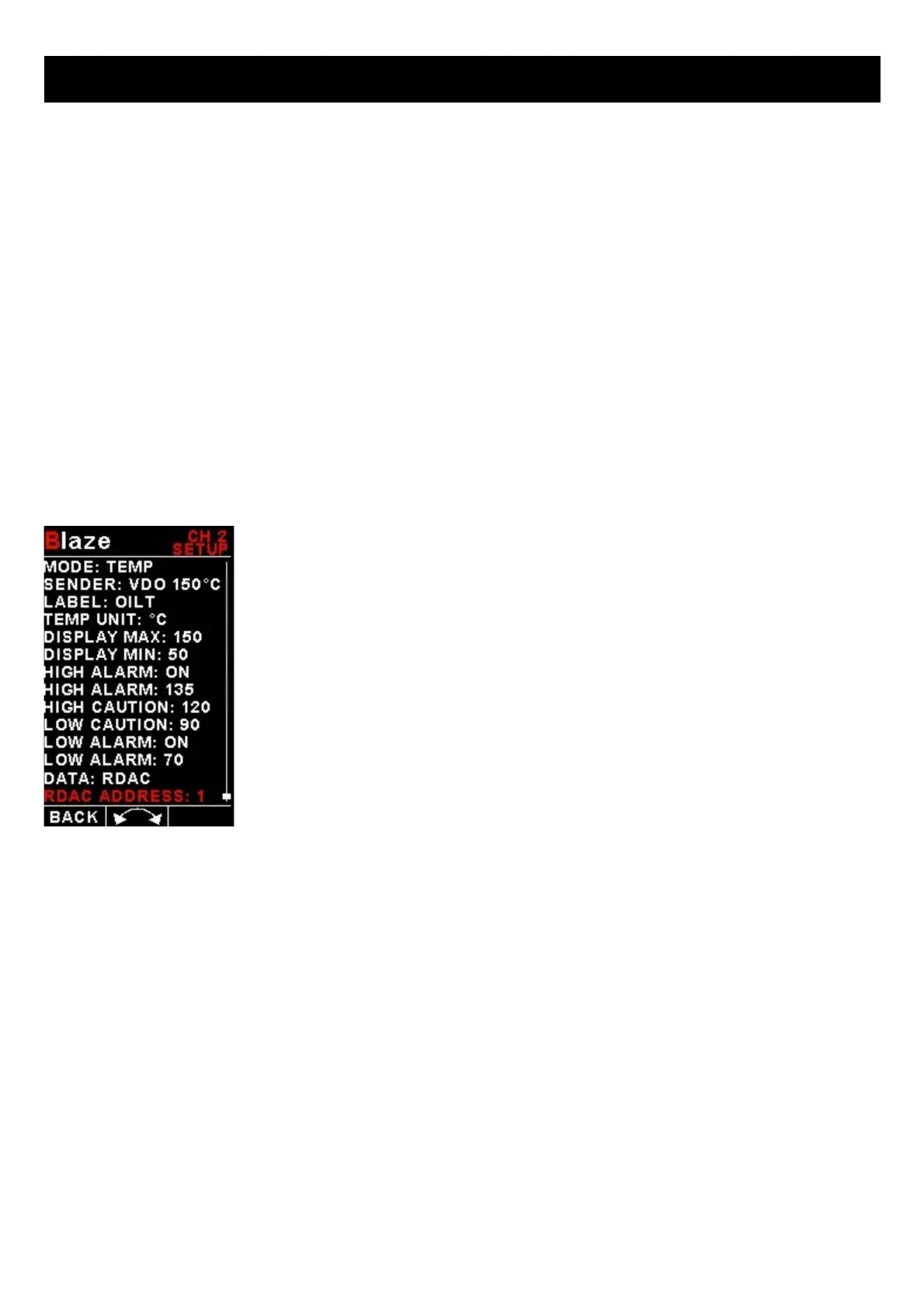

4.6.2 Temperature Setup
Mode:
Select the function for the analog channel. Options are “PRESSURE”, “TEMP”, “CURRENT”, “FUEL LEVEL” or “OFF”.
Sender:
Select what type of sender you are using. Select “VDO 120” for a VDO 120 degree NTC sender, Select “VDO 150” for a
VDO 150 degree NTC sender, “WESTACH” for Westach 339 NTC sender, “MGL” for a MGL NTC sender, “LM335” for a
MGL precision temperature sender or “USER” for a custom sender.
If the sender type is set to “USER"
CALIBRATE SENDER:
If the sender type is set to “USER”, then use this menu option to calibrate your pressure sender. See section 4.2.3 for
more information.
