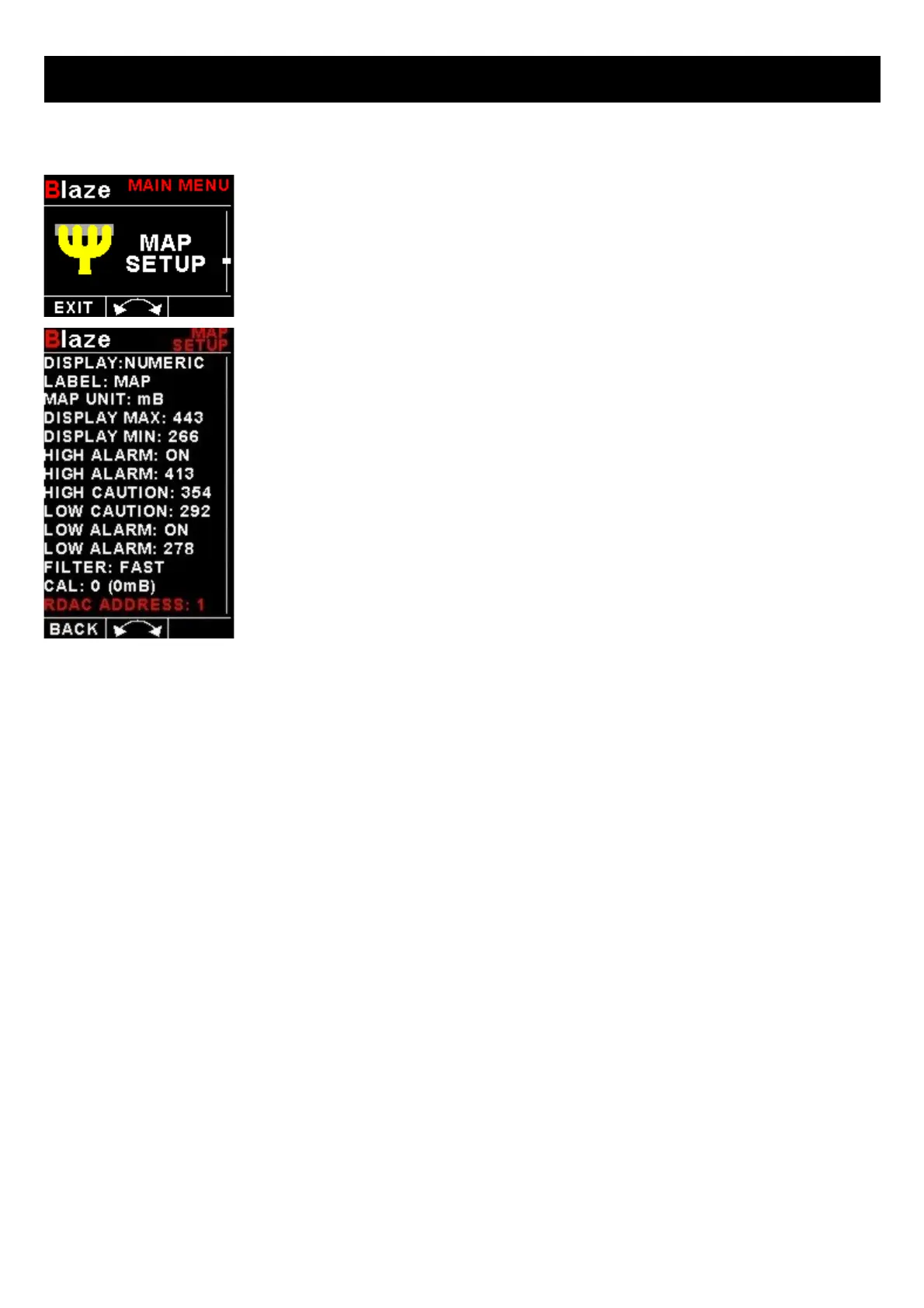

4.8 MAP Setup (Manifold Setup)
Display:
Select is you want the MAP to be displayed as a numeric only value at the top of the display or if you want to have it
displayed as a bargraph. Select “OFF” to disable the MAP display.
Label:
Enter a label to easily identify your MAP reading.
MAP Unit:
Select if you want the manifold pressure displayed in mB (millibars) or “Hg (inches of mercury).
Display Max:
Select the maximum pressure that you want the manifold bargraph to show. This can give you increased display
resolution.
Display Min:
Select the minimum pressure that you want the manifold bargraph dial to show. This can give you increased display
resolution.
High Alarm:
This enables or disables the manifold pressure high alarm.
High Alarm:
Enter the pressure threshold for when the high alarm must be activated. Any pressure above this value will activate the
alarm.
High Caution:
Enter the pressure value for the high caution. This is the lower value of the upper yellow band.
