SF52 User’s Manual
Michell Instruments 5
INSTALLATION
2.3.1 Transmitter Mounting - Sample Block (Optional)
(Applicable to the SF52 G ½ - BSP version ONLY)
The following procedure must be carried out by a qualifi ed
installation engineer.
To mount the transmitter into the sensor block (preferred method), proceed as follows,
refer to Figure 5.
1. Fit the bonded seal (2) over the threaded part of the transmitter body.
NOTE: The bonded seal has a fl at side and a rounded side. It is
important that the fl at side is next to the sensor steel body in
order to give it the correct seal.
Under no circumstances should the fi lter disc be handled with
the fi ngers.
2. Screw the transmitter (1) into the sample block (3) and tighten to the
appropriate torque setting (see Section 2.3). NOTE: Use the fl ats of
the hexagonal body tube and not the sensor body.
3. Connect the SF52 TPE cable wiring connections into the electrical system.
3
2
1

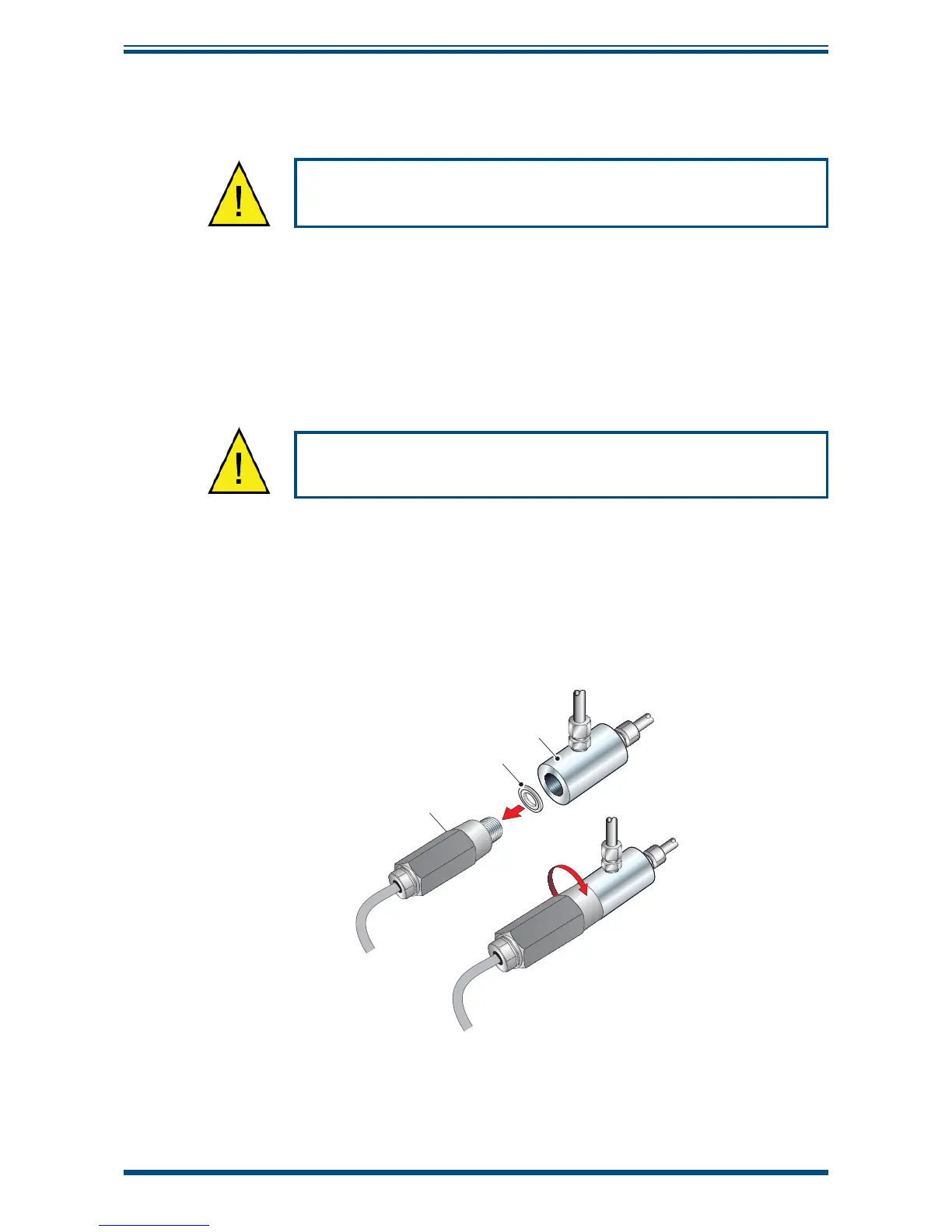

Figure 5 Transmitter Mounting
