Electrode Stick Out
Generally the electrode should not ‘stick out’ more than 10mm from the
welding nozzle.
When an extended arc length is required or to reduce the risk of atmospheric weld
defects due to poor shielding, a gas lens collet body should be used.
Gas Lens bodies oer advantages of:
• Smooth columnar gas ow reducing the risk of atmospheric gas entrainment
• Reduced risk of weld defects in drafty conditions
• Longer arc lengths to improve visibility
• Slightly increased levels of performance and reduced gas consumption

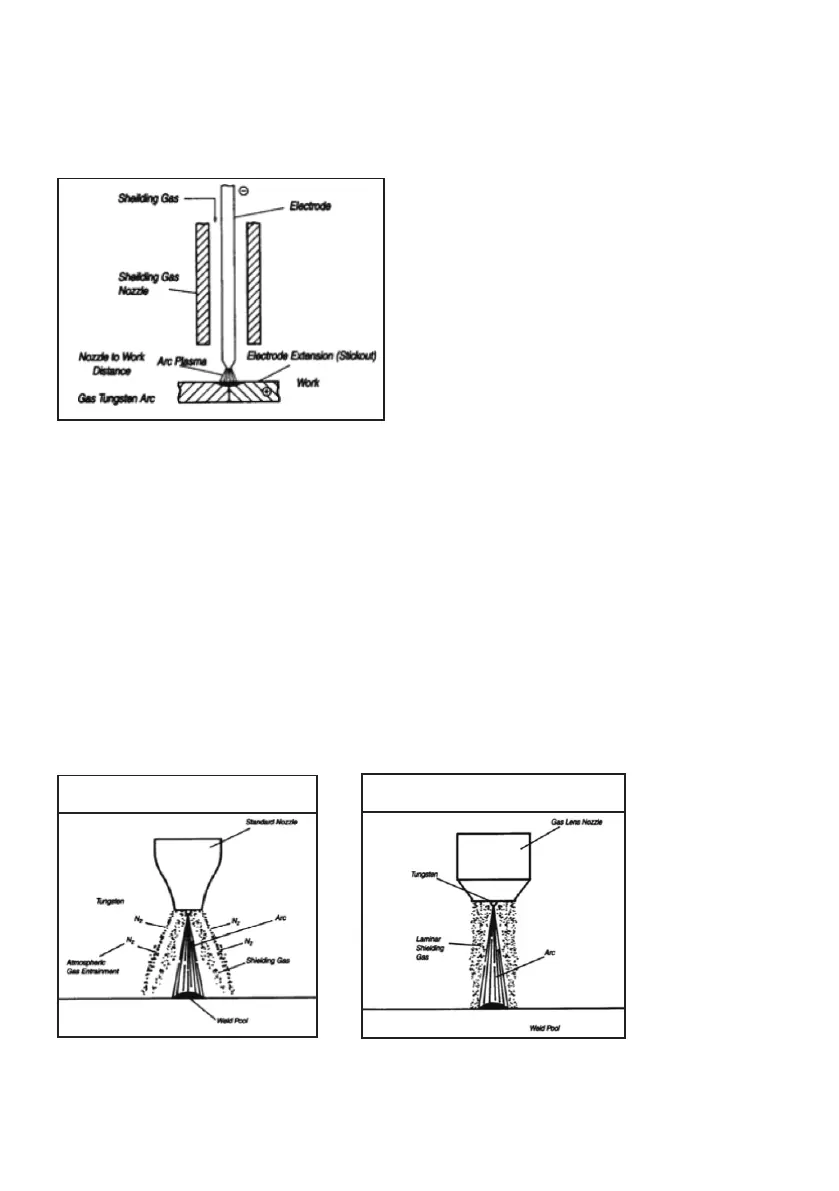

Laminar ow with Normal and Gas Lens Consumables
With Gas Lens
Normal
If any operational problems occur consult the trouble- shooting guide.
