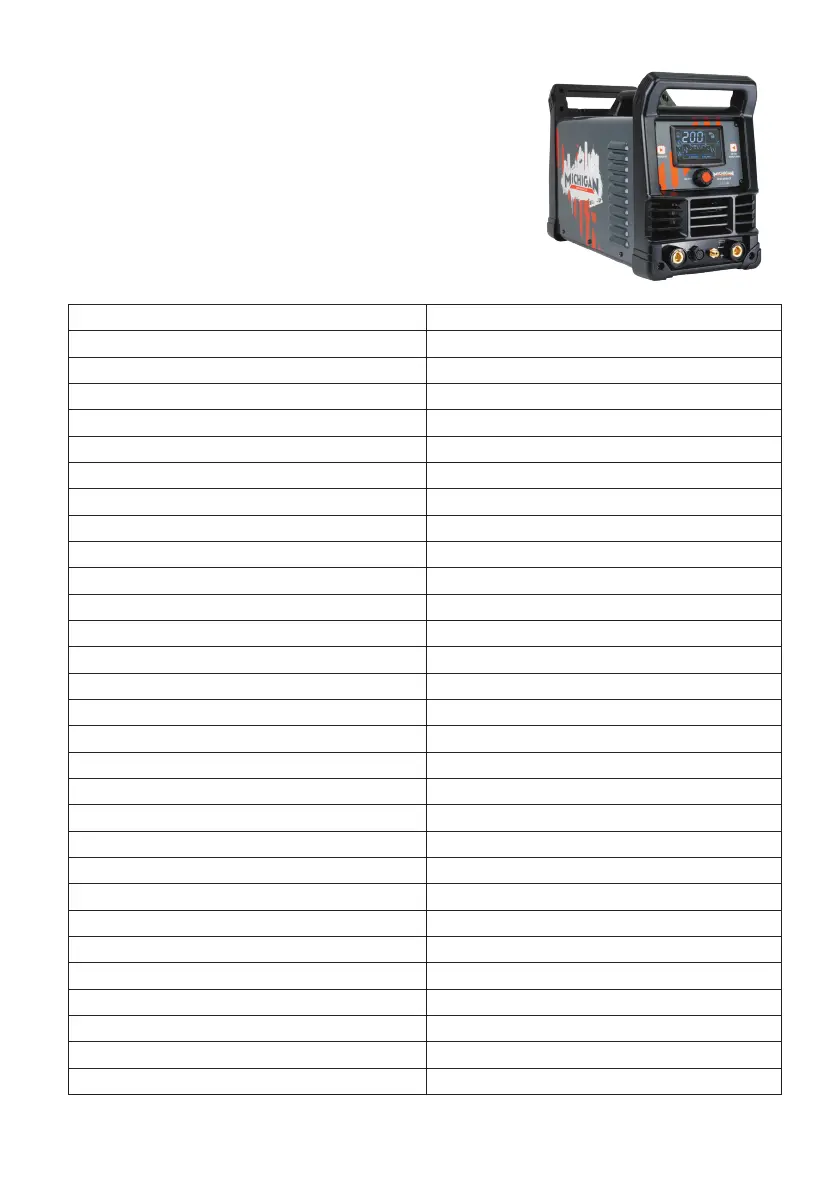

9OPERATING MANUAL
DESCRIPTION
The ACDC200LCD series is digitally controlled
machine which can be used for STICK, AC TIG,
DC TIG & PULSE TIG welding. This unit uses
1~Phase 240V, 50/60HZ AC power.
Specications and Dimensions
Item ACDC200LCD
Input voltage 240V (220 ~ 240)
Frequency 50/60Hz
Rated input current TIG: 28A, STICK: 31A
Rated input capacitance 8.7KVA
No-load voltage 71V
Rated working voltage TIG: 18V, STICK: 26.8V
STICK welding current 10 ~ 170A
DC TIG welding current 10 ~ 200A
AC TIG welding current 10 ~ 200A
Start Amps 10 ~ 200A
End Amps 10 ~ 200A
Up slope 0 ~ 10s
Down slope 0 ~ 10s
Base Amps 10 ~ 200A
Pulse frequency 0.1 ~ 200Hz
Pulse ratio 5 ~ 95%
AC Balance 10 ~ 50%
AC Frequency 50 ~ 160Hz
Pre ow 0.3 ~ 20s
Post ow 0.3 ~ 20s
Rated duty cycle 15%
10min/100% TIG: 66A, STICK: 54A
Eciency 56.9% η
Power factor 0.75 Cosφ
Insulation class H
Enclosure protection IP21S
Cooling type Fan cooled
Dimension 563x251x374 (L×W×Hmm)
Weight 20.5kg
