micro-trak MT-3405F II - Component Parts

5
MT- 3405 F
™
II
“Dual Display”
Automatic Rate Controller
R EFERENCE M ANUAL
Reference Manual
P/N 14946
MT-3405F™ II Console
P/N 14880
2
1
1
1
1
Terminal Kit w/ Fuse Holder
P/N 13270
10’ 10-Pin M/P Extension
Cable (1) P/N 13221
14” Nylon Cable Ties
P/N 12910
10’ Power/Boom Cable
P/N 14318
3’ 3-pin M/P Speed
Adapter Cable P/N 14324
10’ Flow, Servo, Pressure,
Run/Hold, Boom 6 Harness
P/N 14320
Console Mount Kit
P/N 13774
10’ Boom Harness (Booms 1-5)
P/N 17436
F. Hardware Bag
P/N 13251
D. Speed Sensor
Mounting Bracket
P/N 10013
E. Magnets (6)
P/N 12069
(2 in hardware bag)
Speed Sensor Kit P/N 01531
(optional)
A. 5’ Hall-effect Speed/Flow
Sensor Cable P/N 13096
C. 15’ 3-Pin Extension Cable
M/P 150 P/N 13207
B. 14” Nylon Cable Ties (10)
P/N 12910
Component Parts

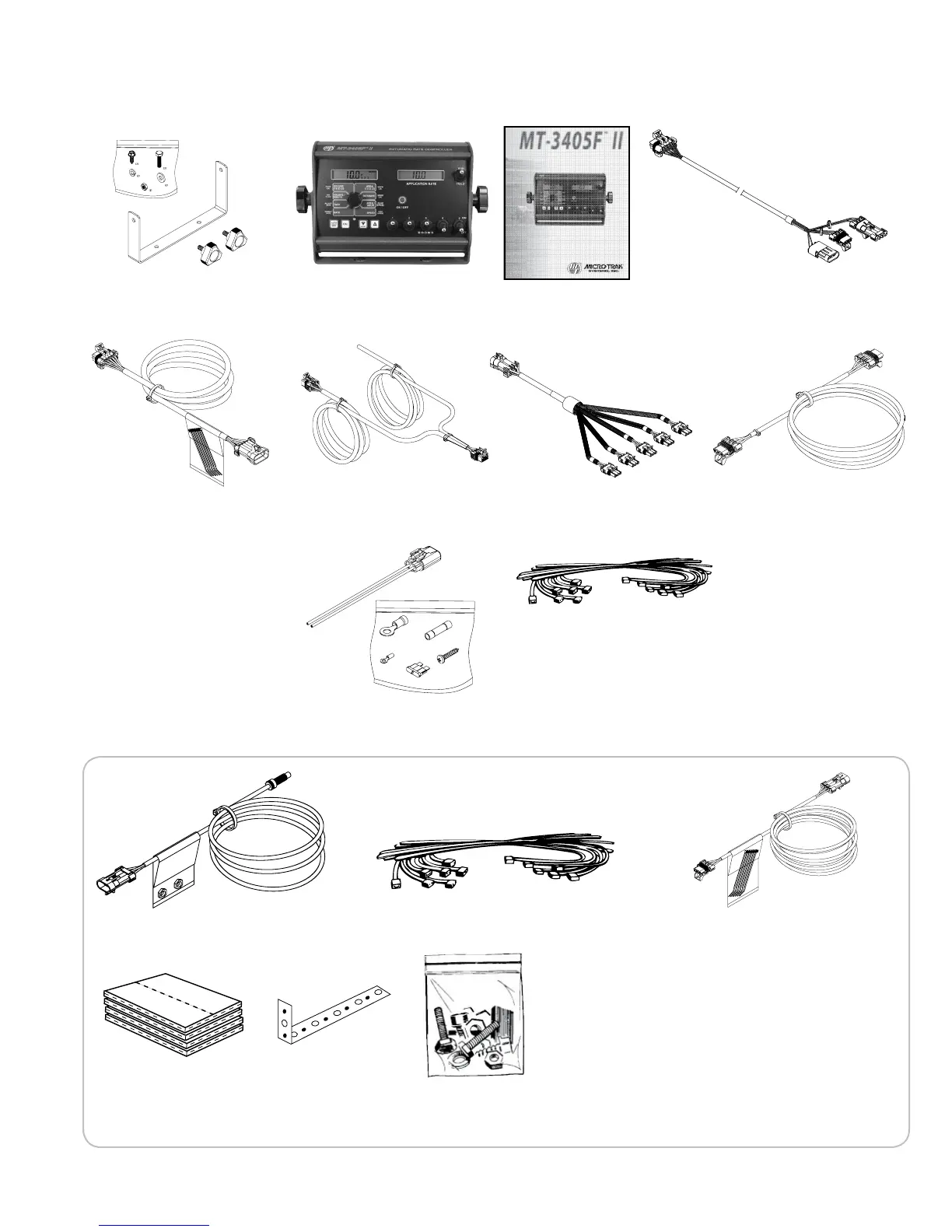

Before beginning installation, check the carton contents for the following items:
