9

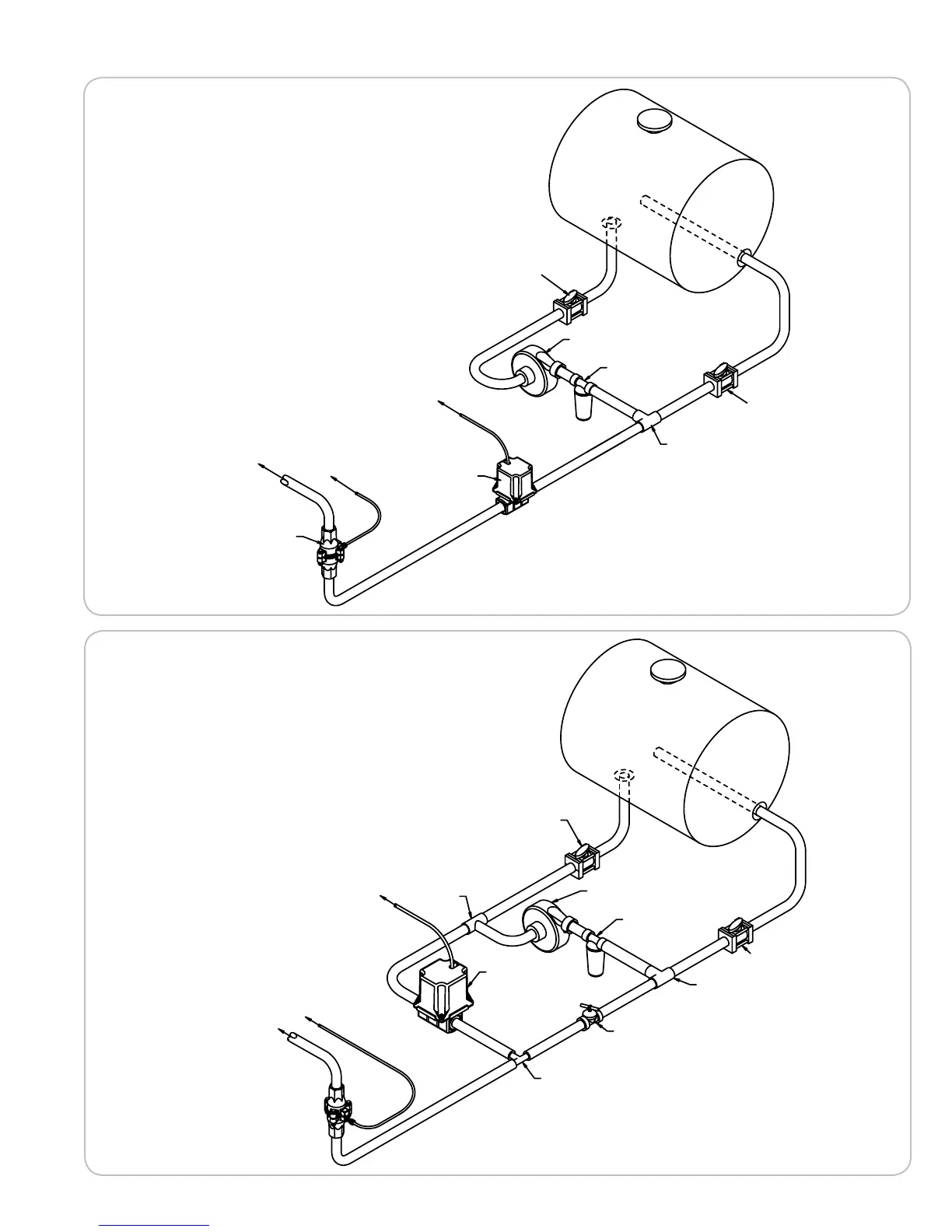

System Configurations
To Section Valves
To Console
To Console
Servo Valve
Tee “A”*
Tee “B”*
Tee “C”*
Agitation Valve*
Strainer*
Pump*
Tank Shut-o Valve*
To Section Valves
Flowmeter
To Console
To Console
Servo Valve
Tee “A”*
Agitation Valve*
Strainer*
Pump*
Tank Shut-o Valve*
*Items not included
with this system
Throttle Valve*
*Items not included
with this system
Inline
The flow is controlled by the servo valve
located “inline” between pump and
flowmeter. This is the most common
configuration.
Bypass
The flow is regulated by the servo
valve located in a bypass line between
pump and the tank return line. This
configuration accomodates very low
application rates.
