micro-trak MT-3405F II - Appendix F - Various Ball Valve Configurations

53
12-volts
+
Valve
Switching Wire
-
Ground
Valve
Switching Wire
12-volts
Ground
Relay +
Relay –
Motor –
Motor +
–
+
Appendix F - Various Ball Valve Congurations

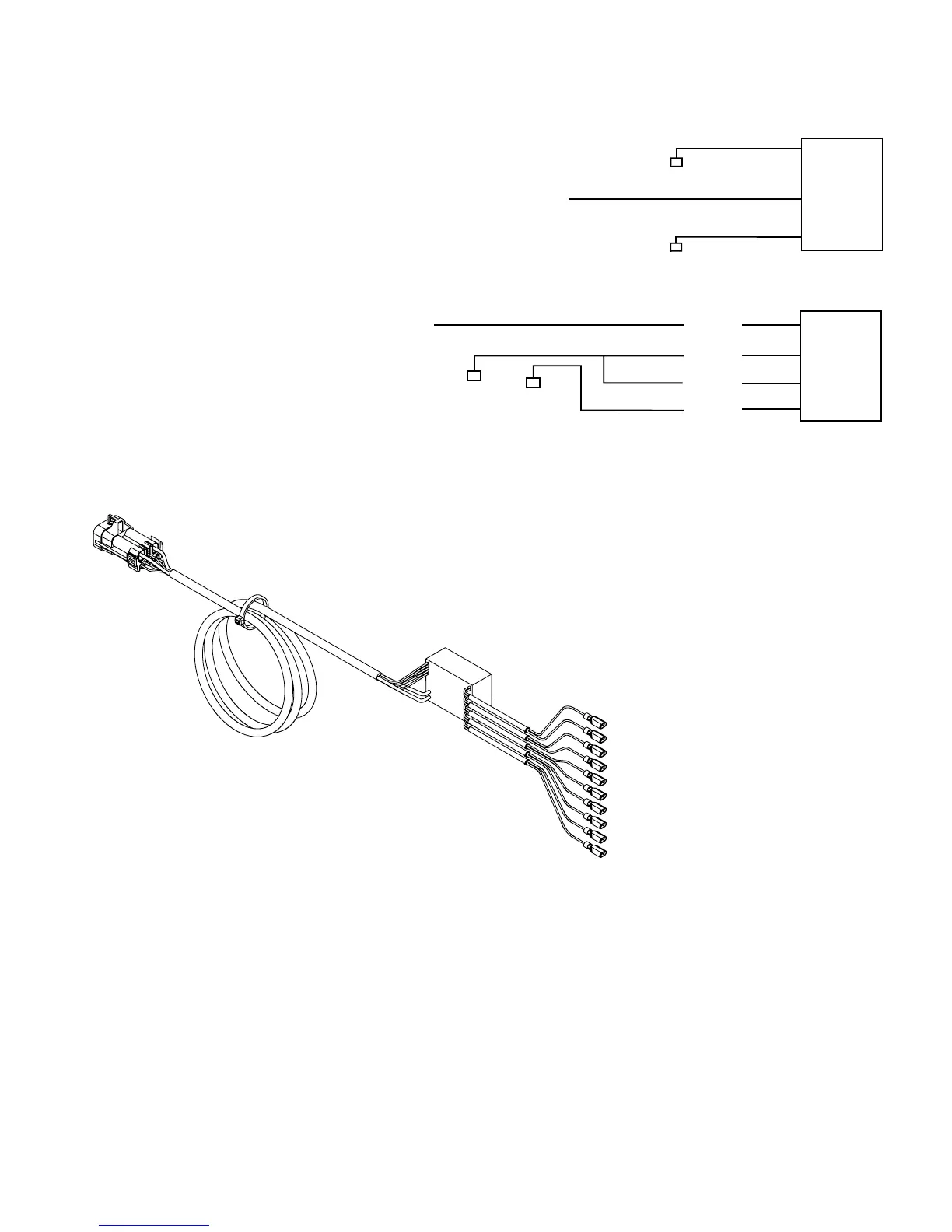

Some basic 2, 3 & 4-wire configurations are shown below.
If you need assistance for wiring other than shown, contact
Micro-Trak for wiring instructions.
For 2-wire (voltage reversing) valves, use P/N 17159 -
Bulkhead Console 5-Boom 2-wire Ball Valve Adapter Cable.
This cable would be used in place of the standard boom
harness P/N 14319.
