micro-trak MT-3405F II - NH3 Specific Wiring Diagram

50
Appendix E (cont)
MT-3405F
TM

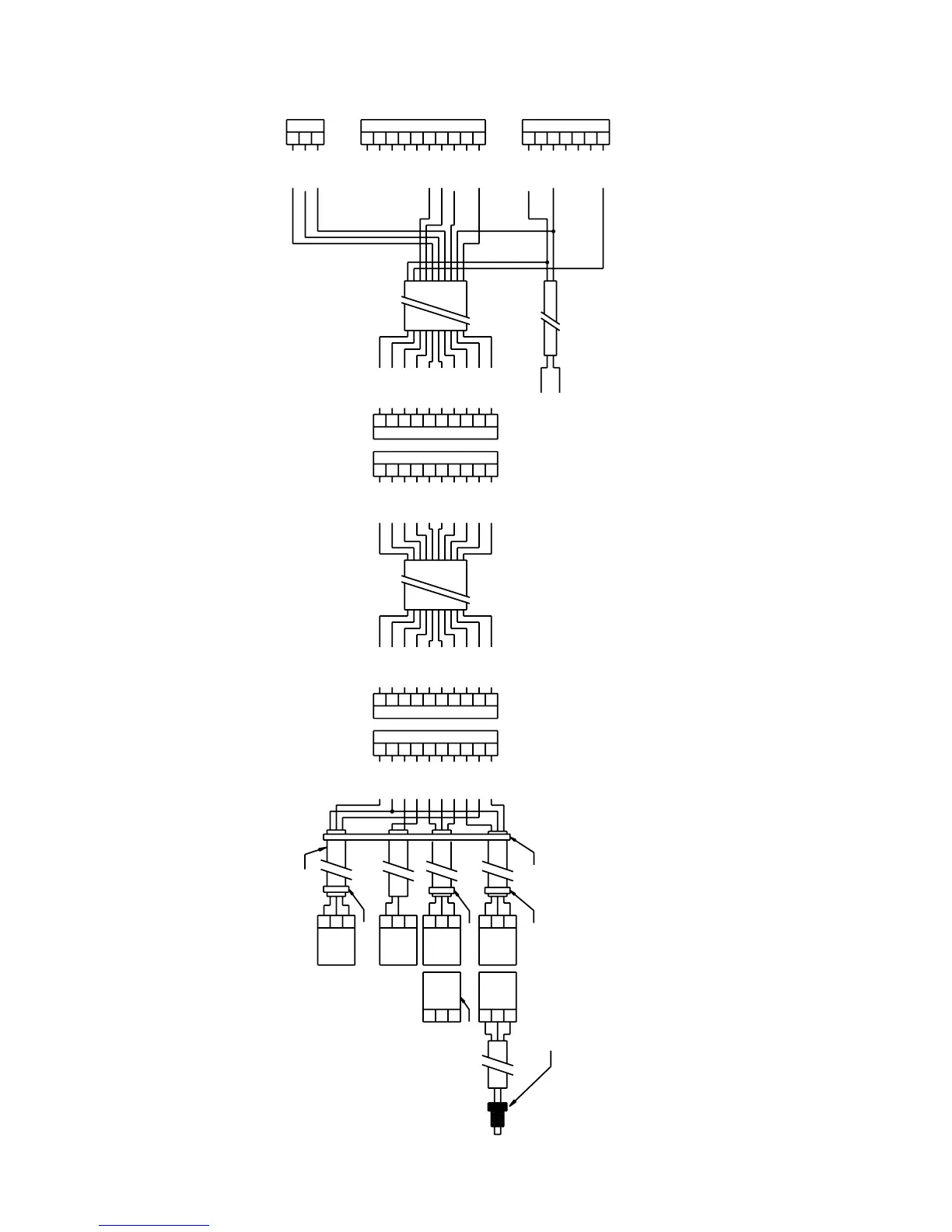

II NH3 Specific Wiring Di a gram
A B C D E F G A B C D E F G H J K
20 GA. WHT N/C N/C N/C 12 GA. WHT N/C 12 GA. BLK
20 GA. BRN N/C 20 GA. ORG 20 GA. VIO 20 GA. GRY N/C N/C N/C N/C N/C
7-PIN M/P MIXED TOWER
10-PIN M/P MIXED 150 TOWER
A B C
20 GA. YEL 20 GA. GRN 20 GA. BLU
3-PIN M/P 150 TOWER
10-PIN M/P 150 SHROUD
A B C D E F G H J K
20 GA. WHT +12 VDC 20 GA. BLK GND
240 IN.
120 IN.
A B C D E F G H J K
20 GA. BRN 20 GA. RED 20 GA. ORG 20 GA. YEL 20 GA. GRN 20 GA. BLU 20 GA. VIO 20 GA. GRY 20 GA. WHT 20 GA. BLK
10-PIN M/P 150 TOWER
20 GA. BRN 20 GA. RED 20 GA. ORG 20 GA. YEL 20 GA. GRN 20 GA. BLU 20 GA. VIO 20 GA. GRY 20 GA. WHT 20 GA. BLK
20 GA. BRN 20 GA. RED 20 GA. ORG 20 GA. YEL 20 GA. GRN 20 GA. BLU 20 GA. VIO 20 GA. GRY 20 GA. WHT 20 GA. BLK
A B C D E F G H J K
A B C D E F G H J K
10-PIN M/P 150 SHROUD
10-PIN M/P 150 TOWER
18 GA. RED 18 GA. WHT 18 GA. BLK 18 GA. RED 18 GA. WHT 18 GA. BLK 18 GA. RED 18 GA. BLK 18 GA. RED 18 GA. BLK
WHT
BLACK TIE
GREEN TIE
8 IN.
A B C
A B C
A B C
A B C
A B C
A B C
P/N 13273
BROWN TIE
YELLOW TIE
P/N 13096, INCLUDED WITH 13273
DUST COVER
FLOW
REMOTE SPEED
SERVO
NH3 SHUTOFF VALVE
3-PIN W/P SHROUD
3-PIN W/P SHROUD
3-PIN M/P TOWER
3-PIN M/P SHROUD
3-PIN M/P TOWER
3-PIN M/P SHROUD
