Figure 2-5. Debugging Session
2.2 SDK Settings
The 2-wire JTAG debug port (i.e. P1_2 and P1_3) on IS2083BM is multiplexed with I2C function. Before debugging,
the user must enable the buildoption ENABLE_JTAG_DEBUG. This enables SW I2C and disables Low Power mode
for the debugger to run properly. The user can select MSPKv2_App_MSPK_Debug project target, which includes
ENABLE_JTAG_DEBUG buildoption.
ENABLE_JTAG_DEBUG uses SW I2C port (P2_3 and P2_6 by default) instead of HW I2C. SDK enables Low Power
mode, which turns off the debugger clock and then disconnects the debugger. ENABLE_JTAG_DEBUG is used to
disable the Low Power mode to avoid this. Refer to the IS2083 Bluetooth
®
Stereo Audio SoC Data Sheet for more
details on JTAG program and debug feature.
For information on which SDK features are included in MSPKv2_App_MSPK_Debug project, see the IS2083 SDK
User's Guide, Section 2.2, and Table 2-1.

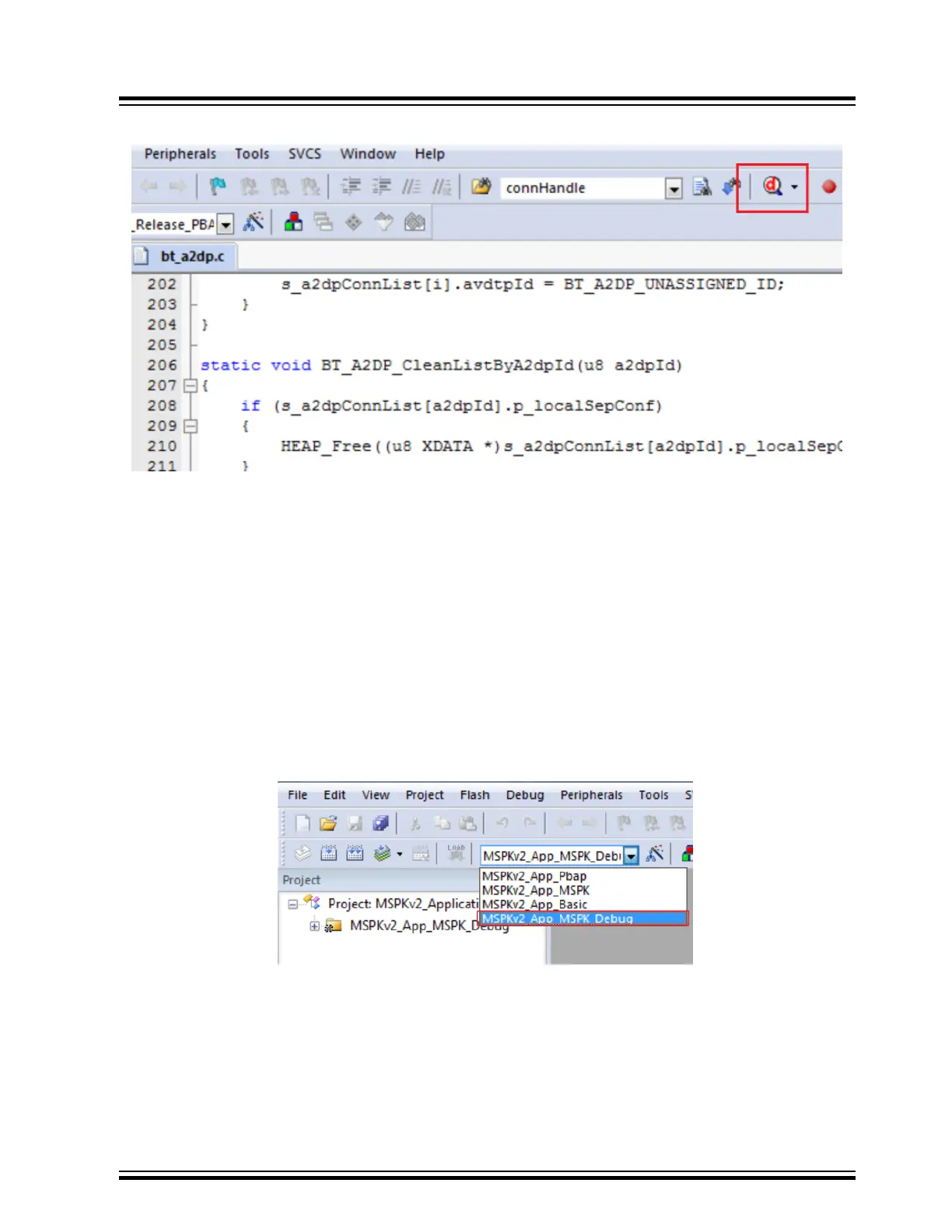

Figure 2-6. Target Build
IS2083
Software Setup
© 2019 Microchip Technology Inc.
User Guide
DS50002892A-page 10
