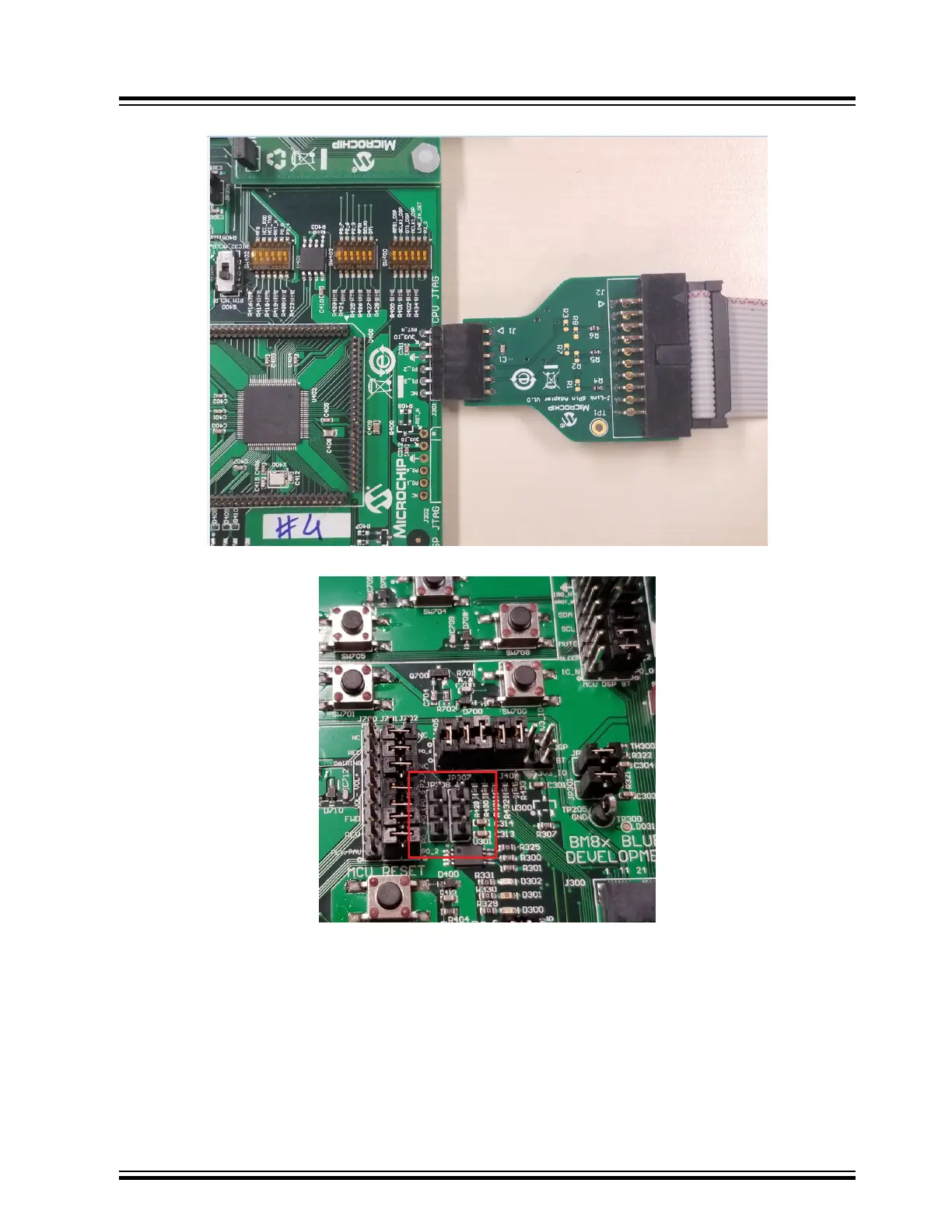

Figure 3-2. 6-pin Adapter Connection

Be sure to unplug jumpers in-between JP307 and JP308 so the HW-I2C interface will not be used:

In order to use Embedded mode, please connect P2_6 of JP309 to P1_3 of JP402, P2_3 of JP309 to P1_2 of JP402.

Then IS2083BM can communicate with ST codec over SW I2C.

IS2083

Hardware Connection

User Guide

DS50002892A-page 12
