MCP2515 CAN Bus Monitor Demo Board User’s Guide
DS50001757B-page 18  2008-2014 Microchip Technology Inc.
2.5.1 Bus Statistics Tab
This tab shows the status of the bus, including on/off the bus, bus loading, number of
transmitted and received messages, and bit timing settings status (see Figure 2-5).

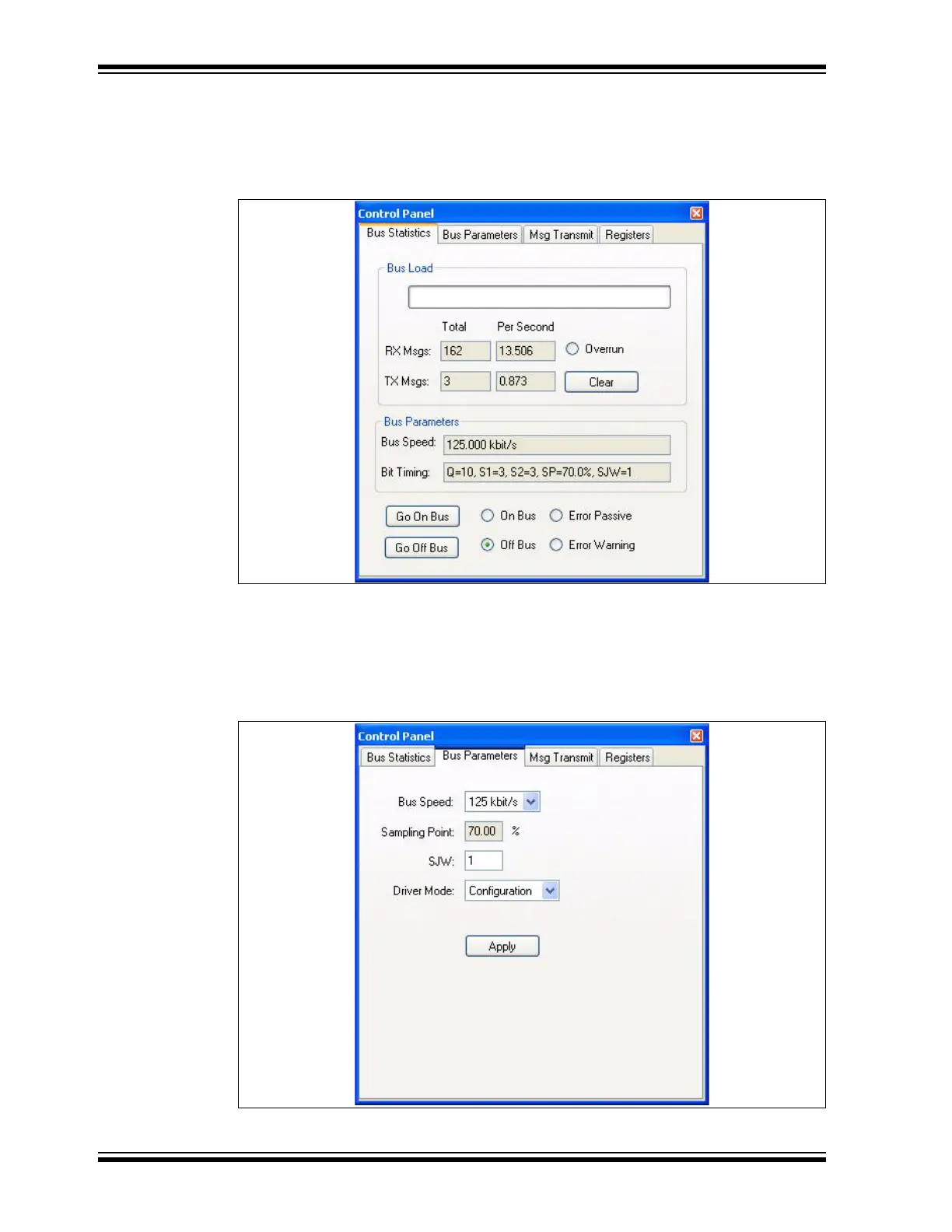

FIGURE 2-5: BUS STATISTICS TAB
2.5.2 Bus Parameters Tab
This tab is used to set basic bit timing. The bus speeds are limited to the values in the
pull-down box. To set custom bit timing, refer to the MCP2515 Configuration Window
(see Figure 2-6).
FIGURE 2-6: BUS PARAMETERS TAB
