2.5.3 Transmit Tab:

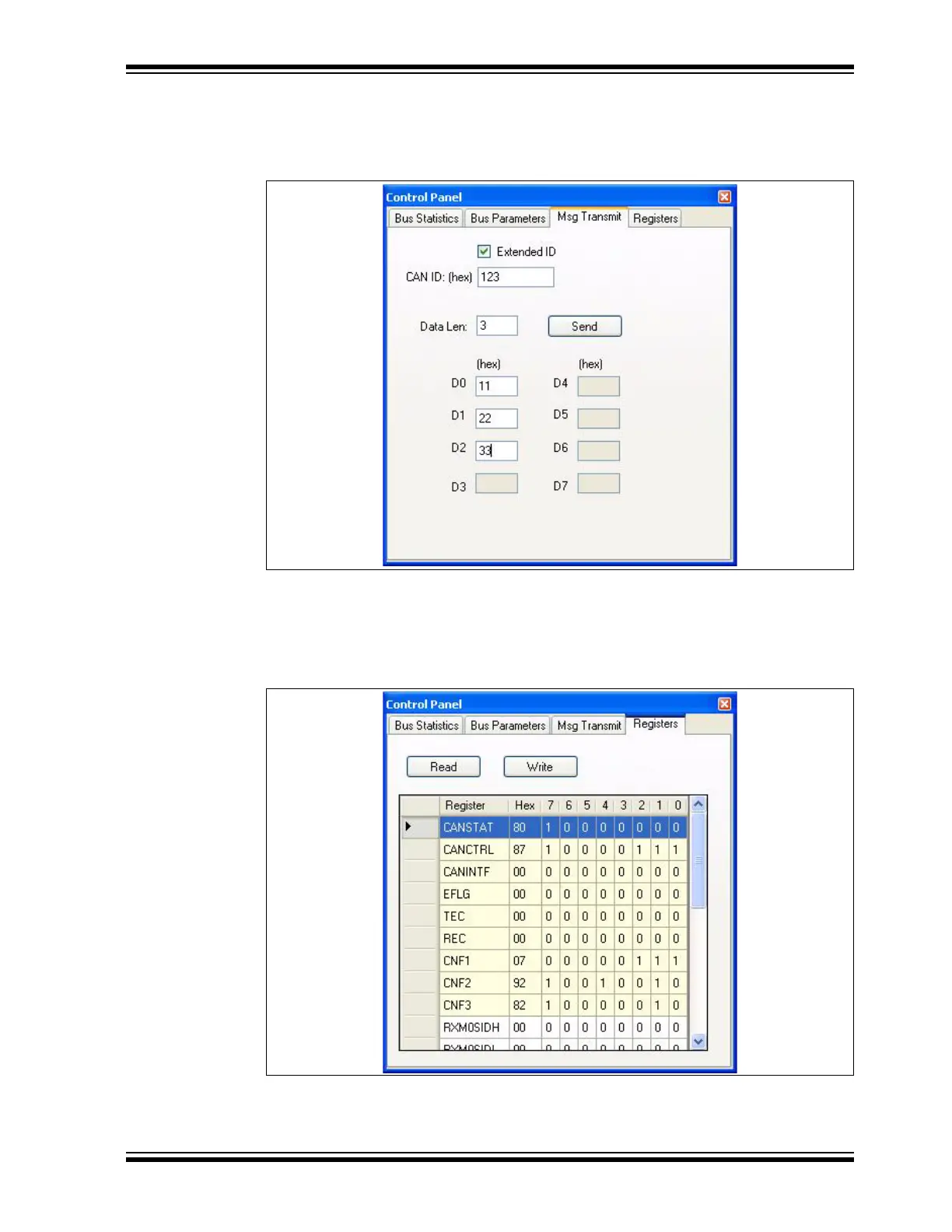

This screen is used to configure and transmit CAN messages (see Figure 2-7).
FIGURE 2-7: TRANSMIT TAB
2.5.4 MCP2515 Configuration Tab
This tab allows access to the MCP2515 registers. SPI commands can be issued (see
Figure 2-8).
FIGURE 2-8: CONFIGURATION TAB
