MCP2515 CAN Bus Monitor Demo Board User’s Guide
DS50001757B-page 20 2008-2014 Microchip Technology Inc.
2.5.5 CAN Messages Output Panel:
This panel displays the messages transmitted and received by the MCP2515. The right
mouse button can be used to display the time in free running or delta (see Figure 2-9).

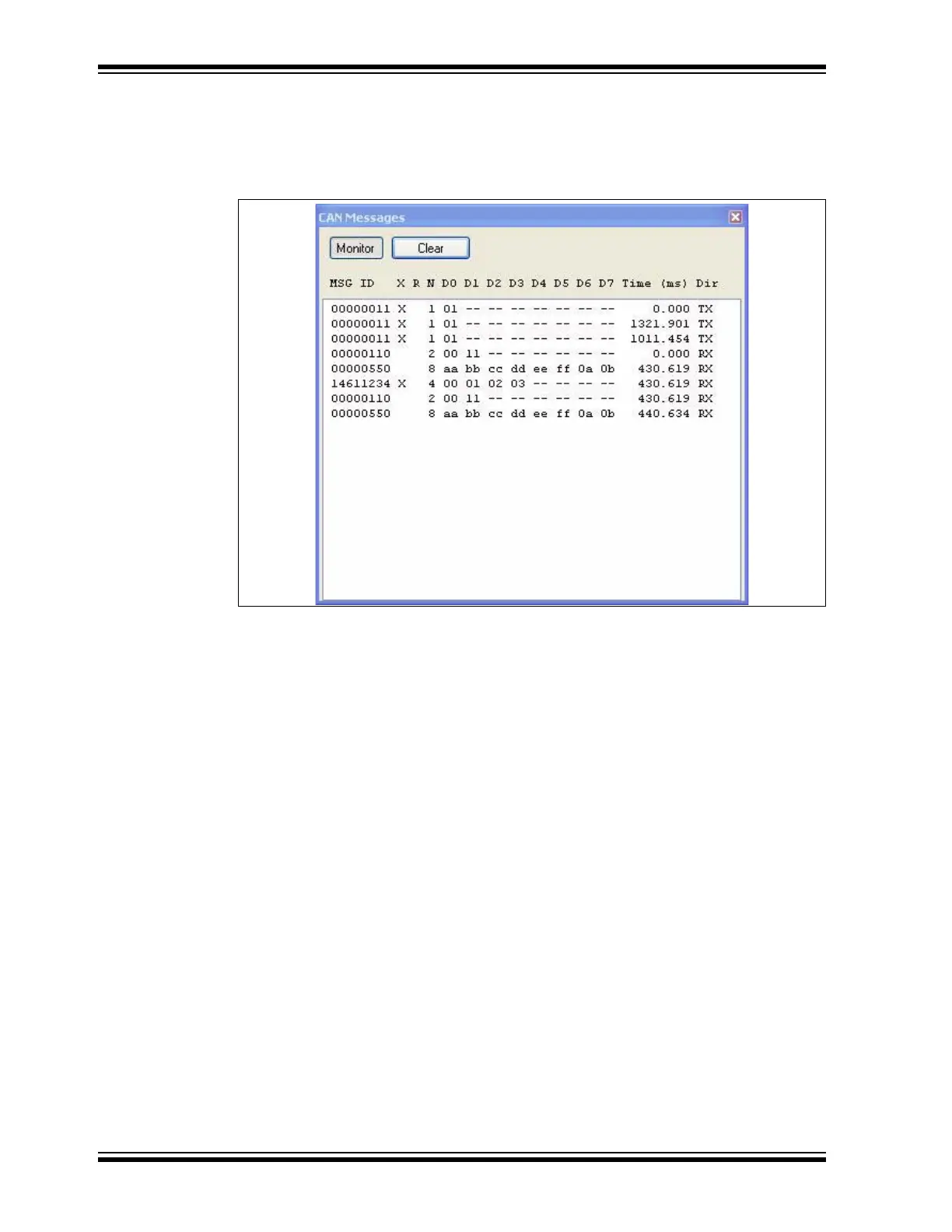

FIGURE 2-9: OUTPUT WINDOW
