21
2.5.3NF1-2B completes uploading Current BP Measurement to VitaDock App over
Bluetooth
Step 3 – Transfer stored values from 3NF1-2B to Smartphone / Tablets without
measurement (BT On /Off button is switched on)!
3.1.-Open [VitaDock App] & Press Button [Transfer BP Data]
-User select Either [Transfer Data Only] or [Trasnfer Data & Delet all Device BP Data]
3.2.Press Button [Connect Bluetooth Device]àVitaDopck App on Standby and Wait for
3NF1-2B to Link-up.
3.3.User press “Start” & “Memo” buttons on 3NF1-2B for >5 seconds, then 3NF1-2B
enters “Data Transfer” mode. 3NF1-2B LCD: Show User & Time & BT icon (Flashing) ,
BT module is on
3.4.3NF1-2B Links-up w/ Smartphone, it then Begins transfer all BP data on 3NF1-2B.
3.5.3NF1-2B LCD: Show User & Time & BT icon (Continuously) & Data Transfer Arrow
(Flashing)
3.6.3NF1-2B Completes all BP Data Transfer.
4.7. PC Link Software Functions

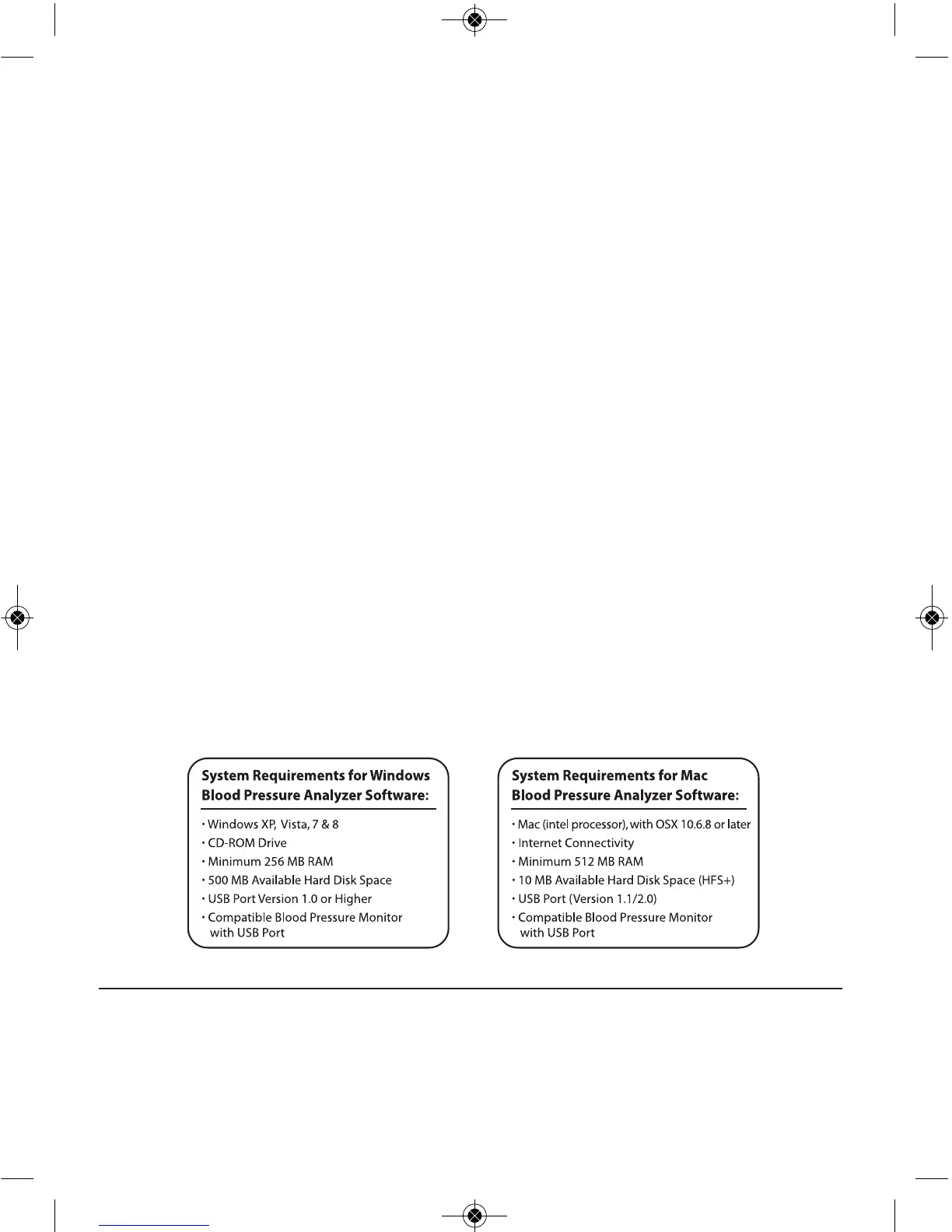

This unit can be used in connection with your computer (PC / MAC) running the PC Link
blood pressure analyzer software. Your computer will allow a capacity of monitoring 80
patients, each with 1000 data (note: overuse will lower system efficiency). The memory
data can be transferred to the computer by connecting the monitor via the included
USB cable. Users can download the BPA (Blood Pressure Analyzer) on Microlife web
site: http://www.microlife.com/support/software/
5. Memory
5.1. Recording the results
This unit features 2 separate memories, each with a capacity of 99 memory slots.
Results are automatically stored in the memory selected by the user. When the
memory is full, the oldest reading is always the first to be deleted.
