Micron IMTB - Installation Method; Monitor Placement; Installation Steps

1. Refer to relevant wiring diagram for the system you have chosen and ensure you
have the correct cable.

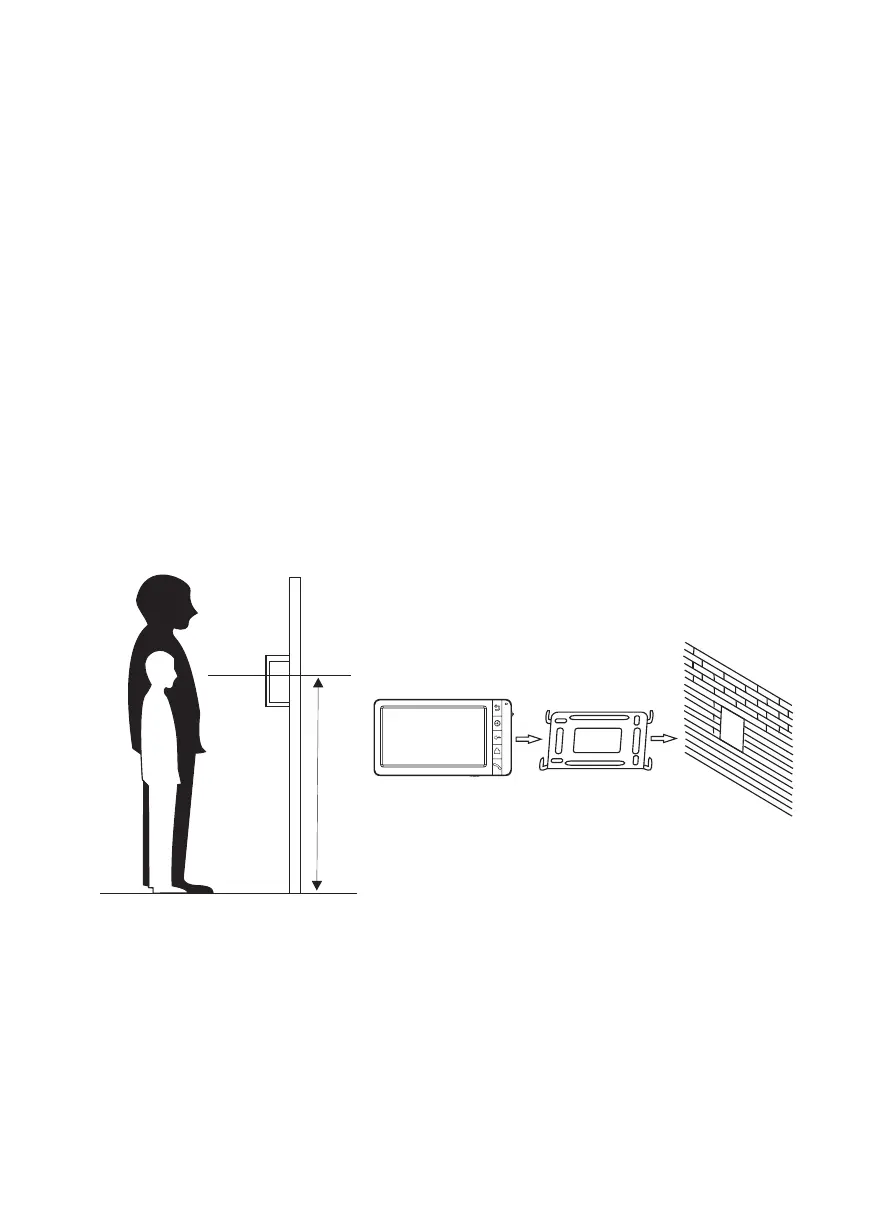

2. Determine the monitor installation position:
-suggest to install at 1.5~1.6Meters;
3. Ensure no power supply connection before installation finished
4. Install the bracket on the wall
5. Connect cables as per the wiring diagram indicated.
6. Fix the monitor onto the bracket.
7. Connect power when doorbell is installed.
SINGLE MONITOR INSTALLATION
Page 7
8、Installation method
150cm
