Flash User Guide for ZedBoard
™

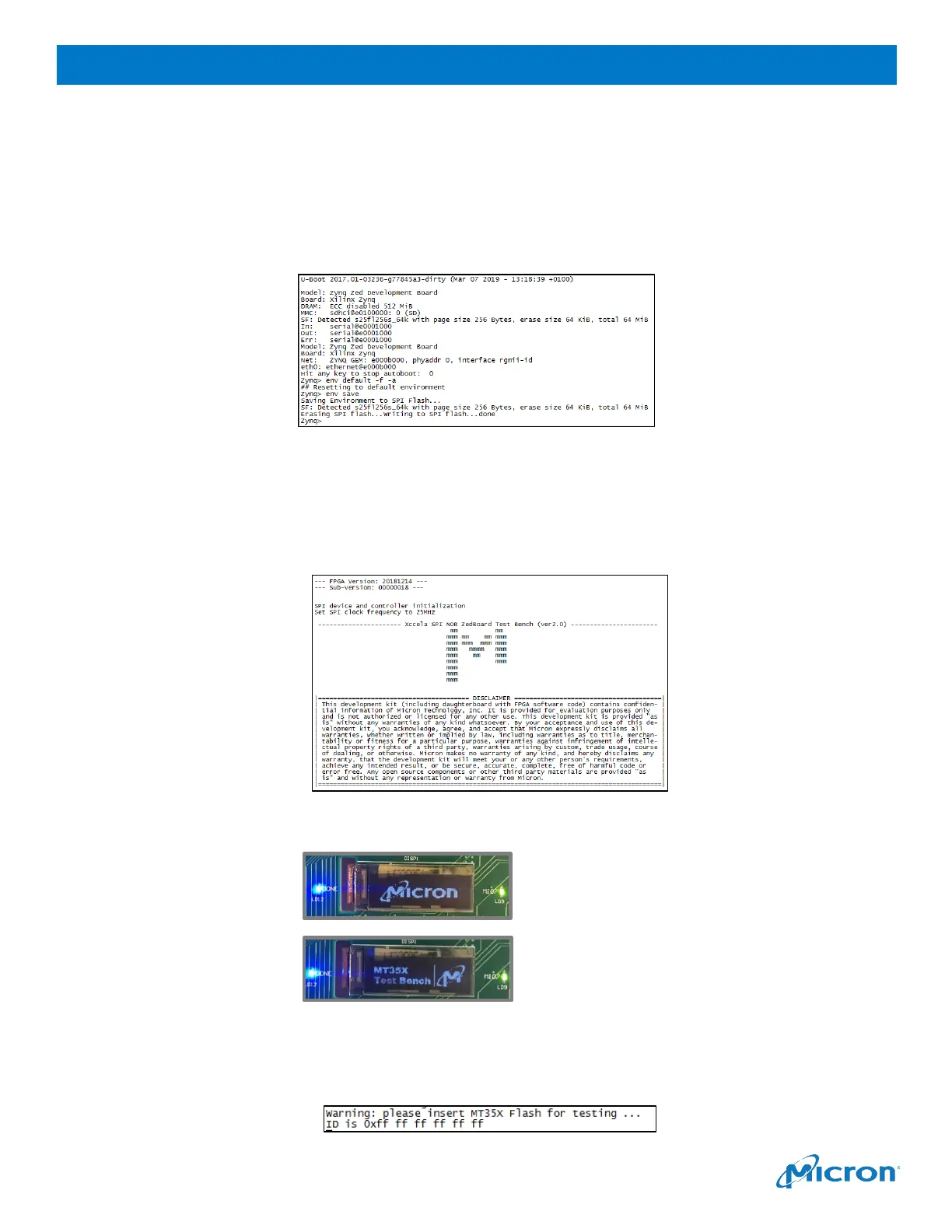

ZedBoard OLEDs after boot
MT35X logo indicates the DUT
is under testing
6.
If this is the first time booting the ZedBoard, run the following two commands to set up the system
boot environment, and then power down the board. Skip these three steps if you've previously
booted the ZedBoard.
•
Press any key when the message
Hit any key to stop autoboot
appears.
•
env default -f -a
•
env save
Figure 10: Setting the System Boot Environment
7.
Power on the ZedBoard.
When the XCCELA>> prompt appears after the Micron welcome screen (it may take a few
seconds), the system boots successfully and enters the SPI NOR test bench.
Figure 11: Xccela Flash Test Bench
Figure 12: LEDs After Booting
If another vendor’s memory is detected (instead of Micron’s Xccela family memory), or if no
memory is detected, the system hangs at the boot stage with the following message:
