MicroNet SP3367A - Page 16

15

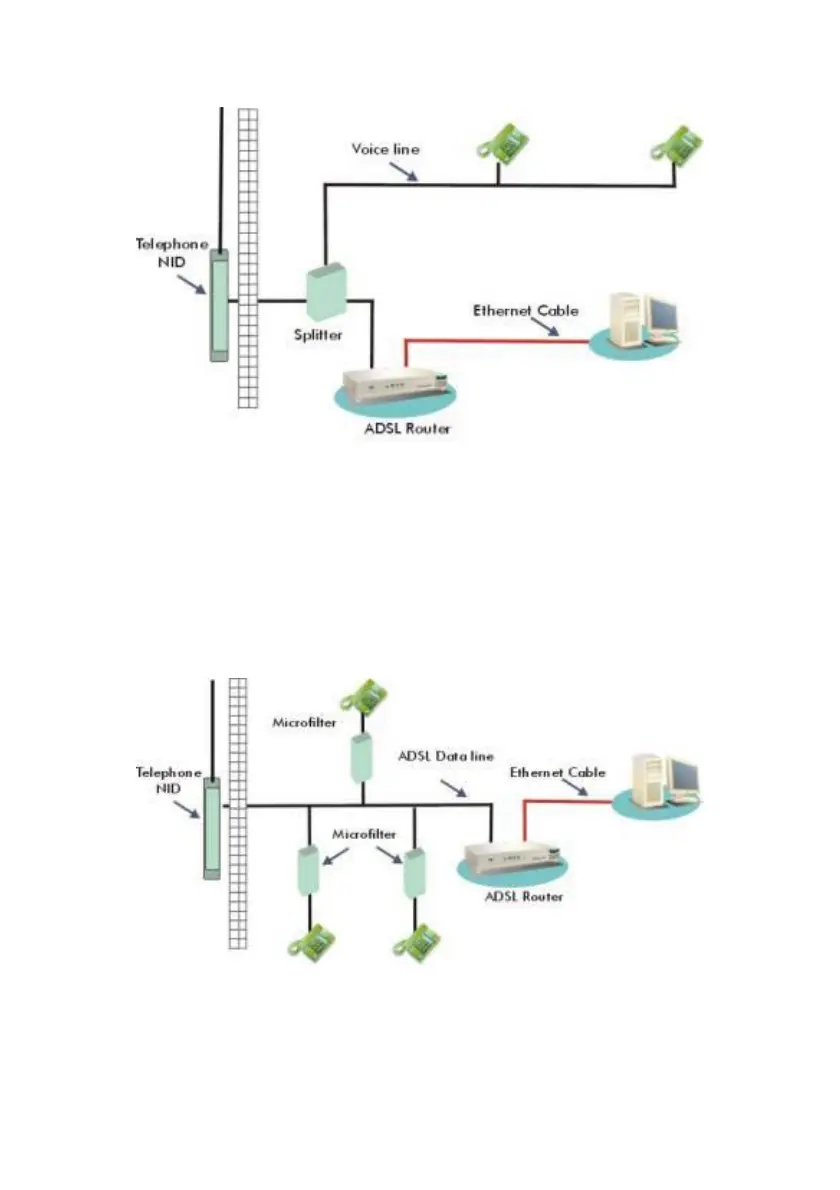

Figure 2-5.1 Router connected through a POTS Splitter
Note: The POTS splitter may also be installed on the outside of the house
adjacent to the telephone network interface device (NID).
Figure 2-5.2 Router connected through several micro-filters
