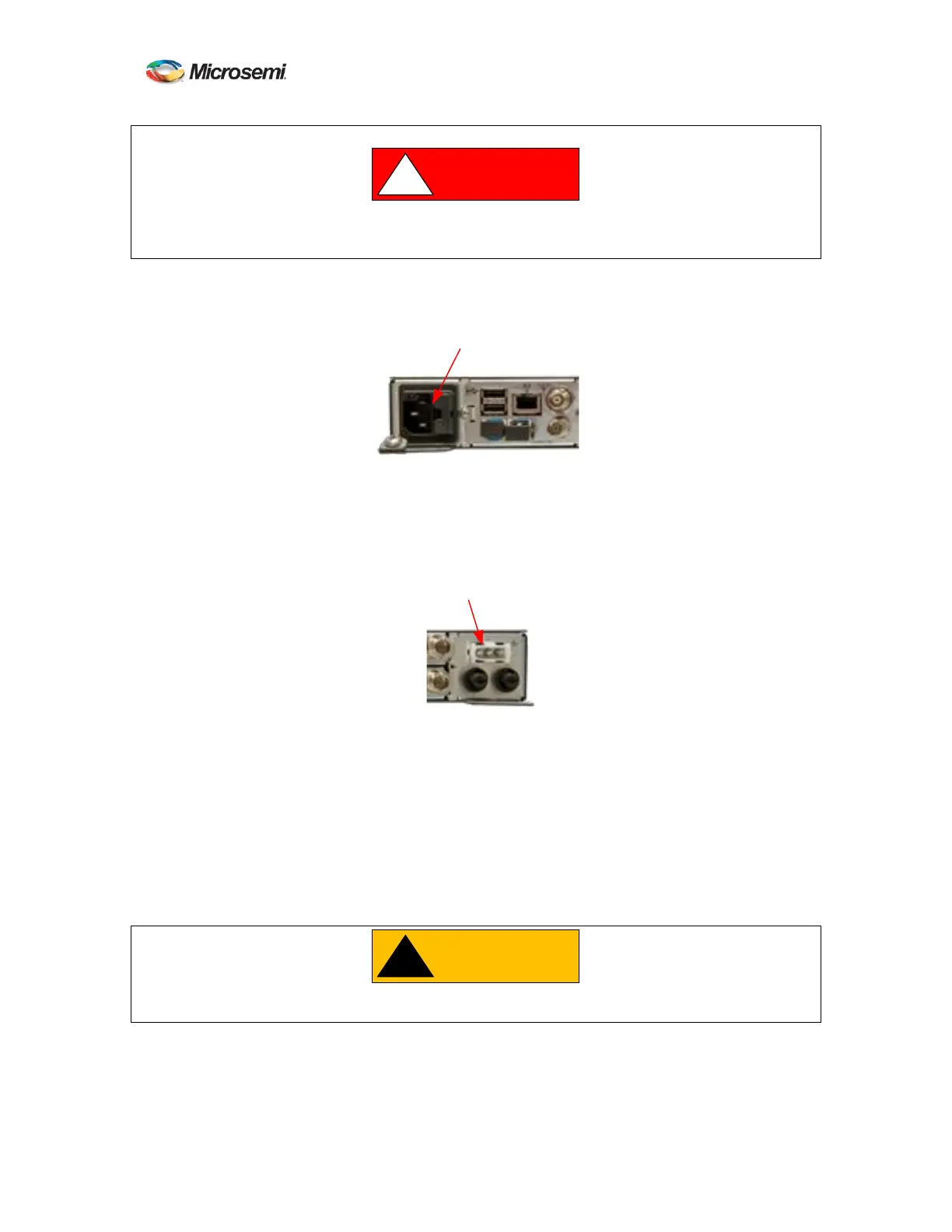

098-00723-000– Jul 2017 Revision 4.0 SyncSystem 4380A O&M Manual
!
DANGER
If the equipment is not used or protected in the manner specified by the manufacturer the protection
provided by the equipment may be impaired.
A.20 AC Power Supply (4385B)
100–240 VAC, 50-60 Hz, ~.70A, Power Factor Corrected to PF 0.97
AC Power Input
Figure 12 AC Power Input
A.21 DC Power Supply (4386A)
48 VDC (18 to 60 VDC), nominal current draw is 1 Amp. Power Inlet Type, DC input Mates with 3 pin
Amp Part#: 1-350346-0 connector with female sockets Amp Part# 925661-1
DC Power Input
Figure 13 DC Power Input
Power Supply Cord Set, DC input Minimum 1.5 mm² (14 AWG) with a 15A fuse or circuit breaker. A 20A
circuit breaker may be used if the external wiring is jacketed 14 AWG, with maximum length of 20 feet.
A.22 Power Consumption
55W total with a fully loaded chassis. The power supplies share approximately half the load. A single
power supply is capable of operating the unit.
A.23 Replacement Fuses
!
WARNING
To avoid the risk of Electrical fire rplace the fuses with the SAME size, type, and rating ONLY.
AC Input: Two 250V/1.5AT (Time delay) 5 x 20 mm
DC Input: Two 250V/5AT (Time delay) 5 x 20 mm
