Microtech 2300 - Connections

5
OM 1364
WWW.DAIKINAPPLIED.COM
CONNECTIONS AND TERMINALS
MT2300 Unit Controller & MT2310 I/O Board Connections

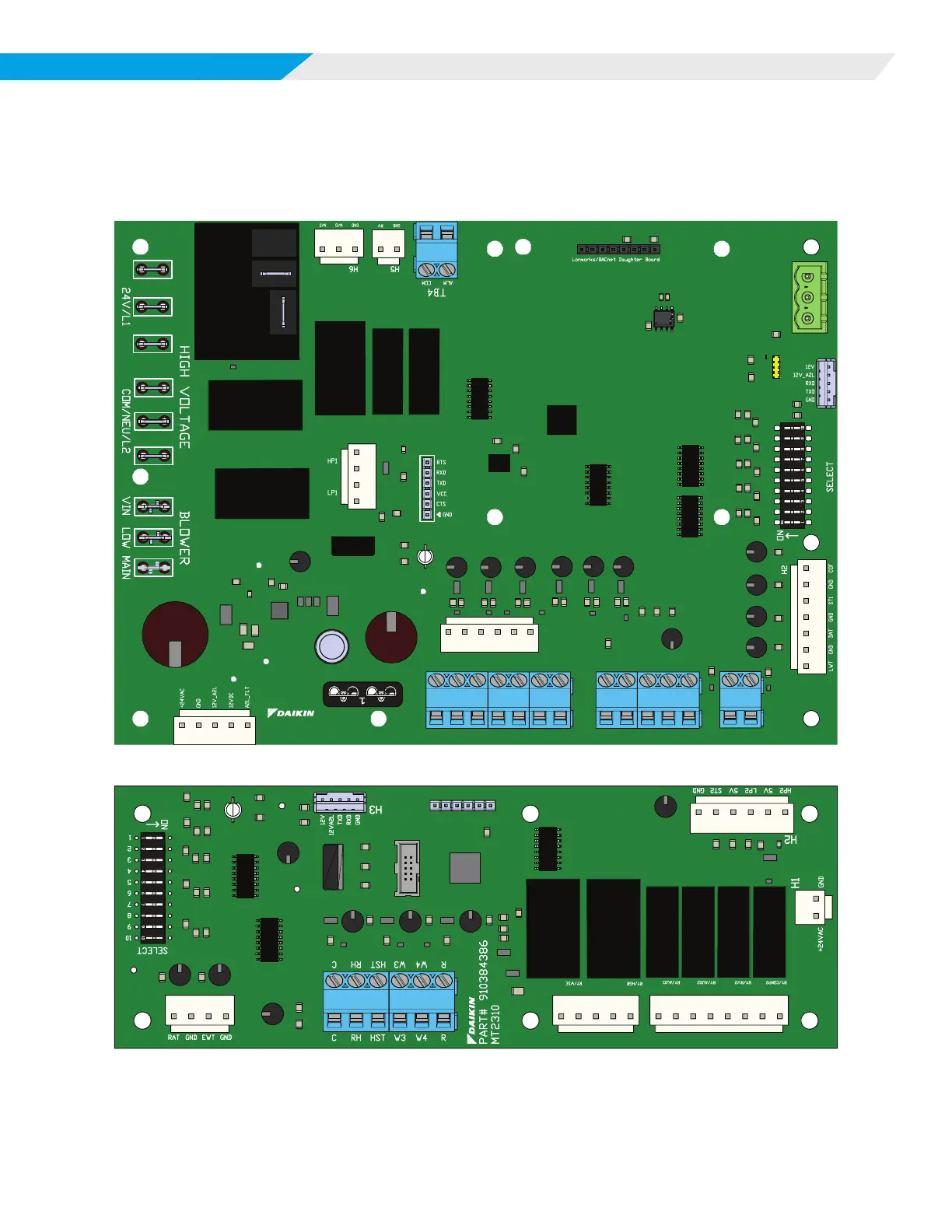

Figure 1: MT2300 and MT2310 Connections
NOTE: Refer to Table 1 on page 4 for MT2300 controller terminal descriptions and Table 2 on page 4 for MT2310 I/O terminal
descriptions
