MICROSCANNER
ENGLISH - 9
10BaseT Cable Token Ring
unshielded shielded
(2 pair, 4 wires) (2 pair, 4 wires)

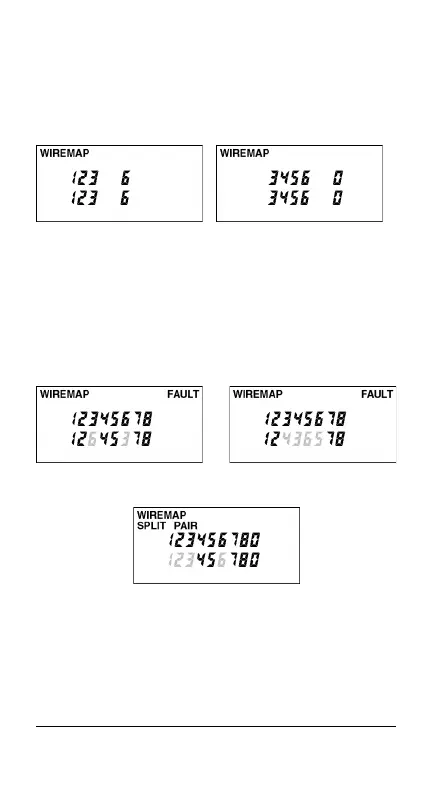

Below are examples of wiring faults. The FAULT
indicator will be displayed and the numerical wire
indicators will blink.
Reversed: Crossed:
Pair 3 - 6 Pairs 4 - 5, 3 - 6
Split Pair
Note: If a cable is wired correctly, pin-to-pin, but
there is a split pair, Wiremap will display SPLIT
PAIR. For example a wire from the 1 - 2 pair
could be twisted with a wire from the 3 - 6 pair.
