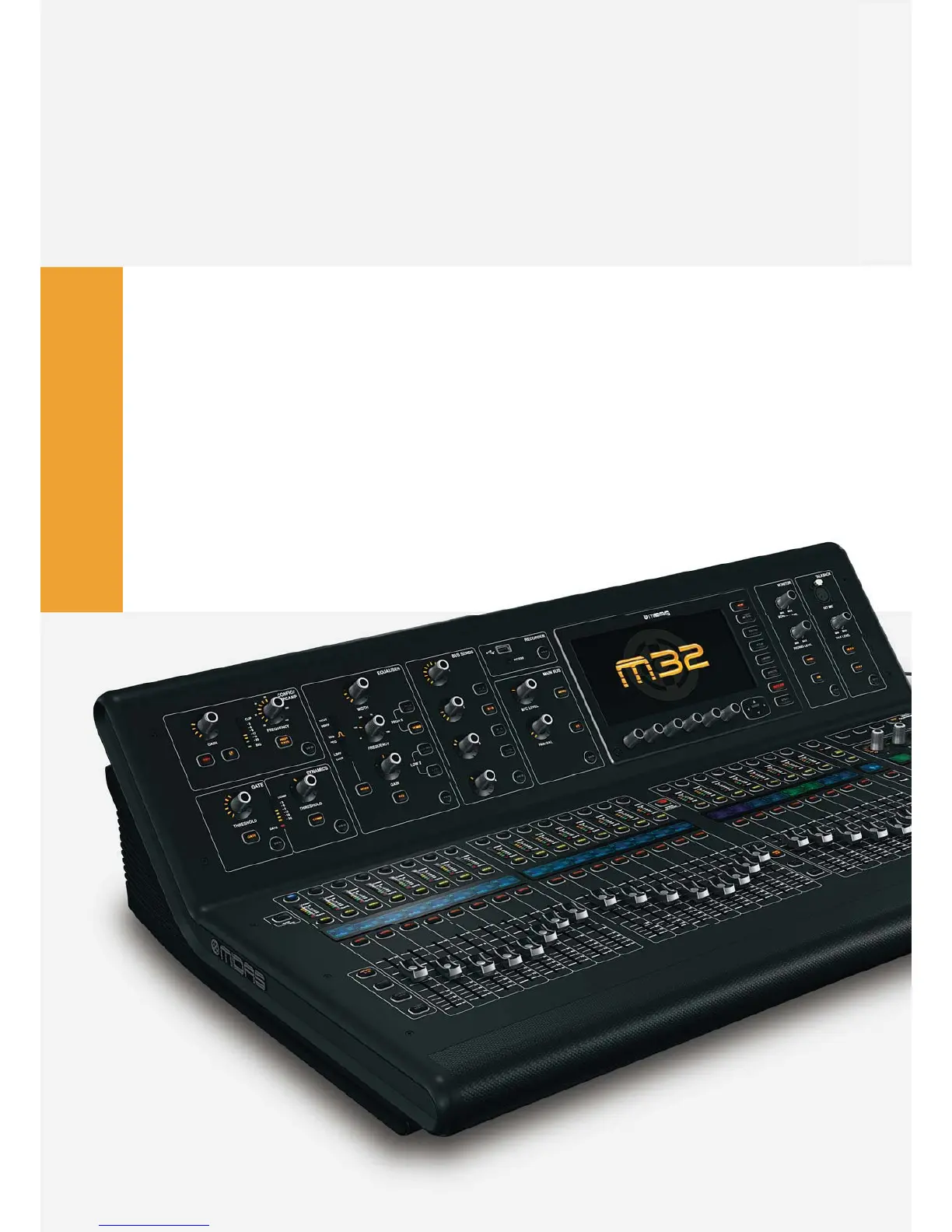

Midas M32 Brochure & Specs

You Are Connected
Each M32 comes loaded with all of the connectivity,
I/O and functionality you need, right out of the
box – but it doesn’t end there. Onboard USB 2.0
connectivity delivers a full 32 x 32 channels of audio
and MIDI to your DAW. Integrated multi-channel
digital audio interfaces connect to remote stage
boxes and/or the P16 Personal Monitor System.
Native Ethernet control enables remote operation
by computer, iPad or iPhone over a wired or wireless
network, across the room – or across the planet!
28
Dual AES50 network ports featuring KLARK TEKNIK
SuperMAC technology support up to 96 inputs and
96 outputs over shielded (STP) CAT5 cable, allowing
remote stage boxes and sharing signals among
several connected M32s and other MIDAS, KLARK
TEKNIK and AES50-equipped products.
On-board ULTRANET provides a 16-channel digital
mix direct to P16 Personal Monitor Mixers, without
added hardware, cost or latency.

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
