Midas M32 Brochure & Specs

29

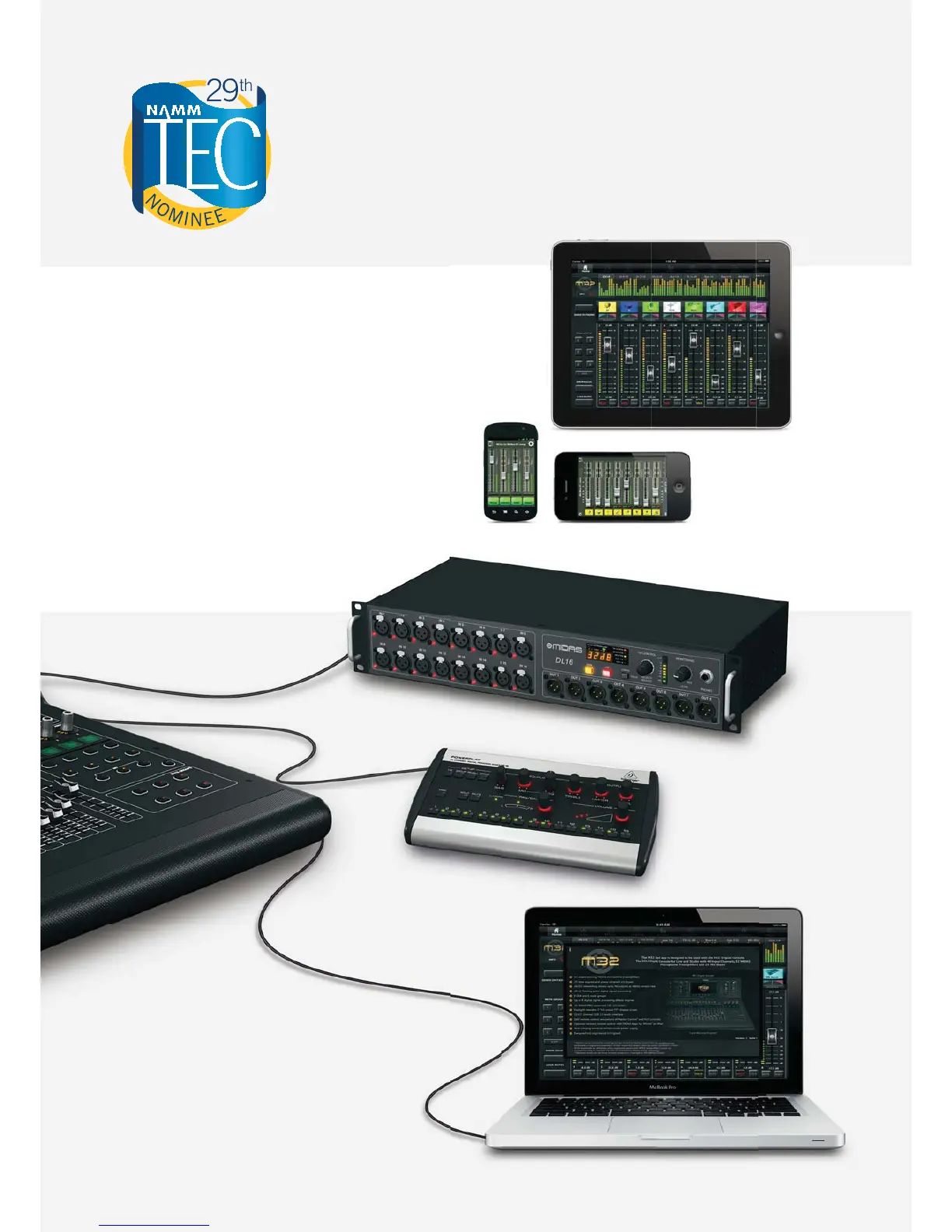

Ethernet, USB and MIDI are all standard features
on M32.
An additional expansion slot is also included, so that
the M32 can connect to current and future digital
audio networks and link protocols via a wide range
of expansion cards including USB, FireWire*, ADAT*,
MADI and Audinate Dante*.
NAMM TEC Nominee 2014

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
