Chapter 7: Setting Up The System
PRO6 Control Centre
Quick Refere
nce Guide

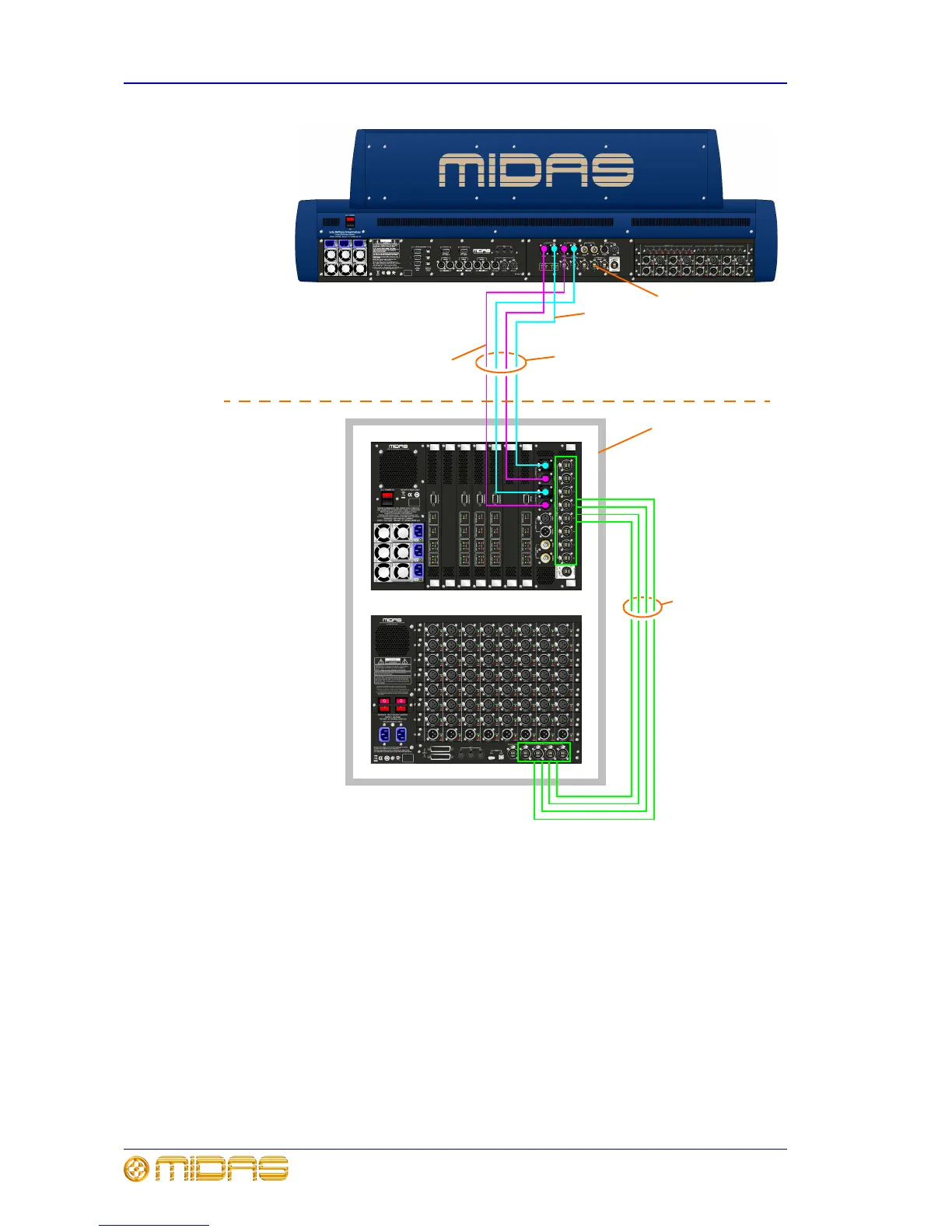

Figure 14: Standard system configuration
DL371 DSP
(4 x AES50
expansion ports)
Rack (the DL351 and
DL371 units are
typically located in a
single 14U rack)
Maximum 100 m,
typically 0.5 m
(N+1 redundant
AES50)
Dual cable redundan
t HyperMAC
(fibre optic or coppe
r)
PRO6 Control Centre
(control surface, router, 8 x inputs,
8 x outputs, 8 x insert Jack I/Os and
6 x monitor outputs)
DL351 Modular I/O
(56 x inputs and
8 x outputs)
Copper
Fibre optic
Mix position
Stage
3 x AES50 expansion
ports
73
75
Table of Contents
Default Chapter
9
General Precautions
9
Safety Warnings
9
Audio Connections
10
Table of Contents
13
Introduction
15
Chapter 1: Introducing the PRO6
17
Overview of the PRO6 Live Performance System
17
System Components (Standard Supply)
18
About this Guide
18
Chapter 2: About the PRO6 Control Centre
19
Overview of the PRO6 Control Centre
19
Bay and GUI Layout
20
PRO6 Control Surface
21
Gui
22
Front Panel Connections
23
Rear Panel Connections
23
Chapter 3: Working with the PRO6 Control Centre
27
Basic GUI Operation
27
Operating the GUI Screen Controls
28
Using the GUI Menu
29
Text Editing
30
Chapter 4: Navigation
31
An Introduction to PRO6 Navigation
31
About the Navigational Controls
32
About the Navigation 'Select' Sections
33
How to Navigate
33
Chapter 5: Patching
37
Introduction
37
Function Buttons
38
About the Patching Procedure
39
Configuring the Devices
39
Configuring the PRO6 with the Snake Type
41
Setting up the I/O Rack Devices
41
How to Patch
43
Chapter 6 Basic Operation
45
Principles of Operation
45
Operating Modes
45
Normal Mode
45
Hints and Tips
46
Saving Your Work
47
Setting a MIC Amplifier's Input Gain
48
Setting the High and Low Pass Filters
49
Input Equalisation (E Zone)
50
Input Dynamics Processing (D Zone)
51
Using VCA/POP Groups
53
Setting up a MIX
55
Setting up the Effects Rack
58
Simple Routing to Master Stereo Outputs
60
Scene and Show Management (Automation)
60
Configuring the Inputs and Outputs
65
Using Copy and Paste
65
Surround Panning
68
Two-Man Operation
68
Saving Your Show Files to USB Memory Stick
70
Connecting and Setting up the System
71
Chapter 7 Setting up the System
73
Initial Set-Up Procedure
73
Unpacking the Equipment
73
Making up a Rack
73
Wiring Instructions
73
Powering the PRO6 System
75
Switching the PRO6 Control Centre On/Off
76
Setting up the DL351 Modular I/O Unit ID
77
Appendices
79
Appendix A Troubleshooting
81
No Audio
81
Diagnostics
81
Swapping the Active Master Controller
82
