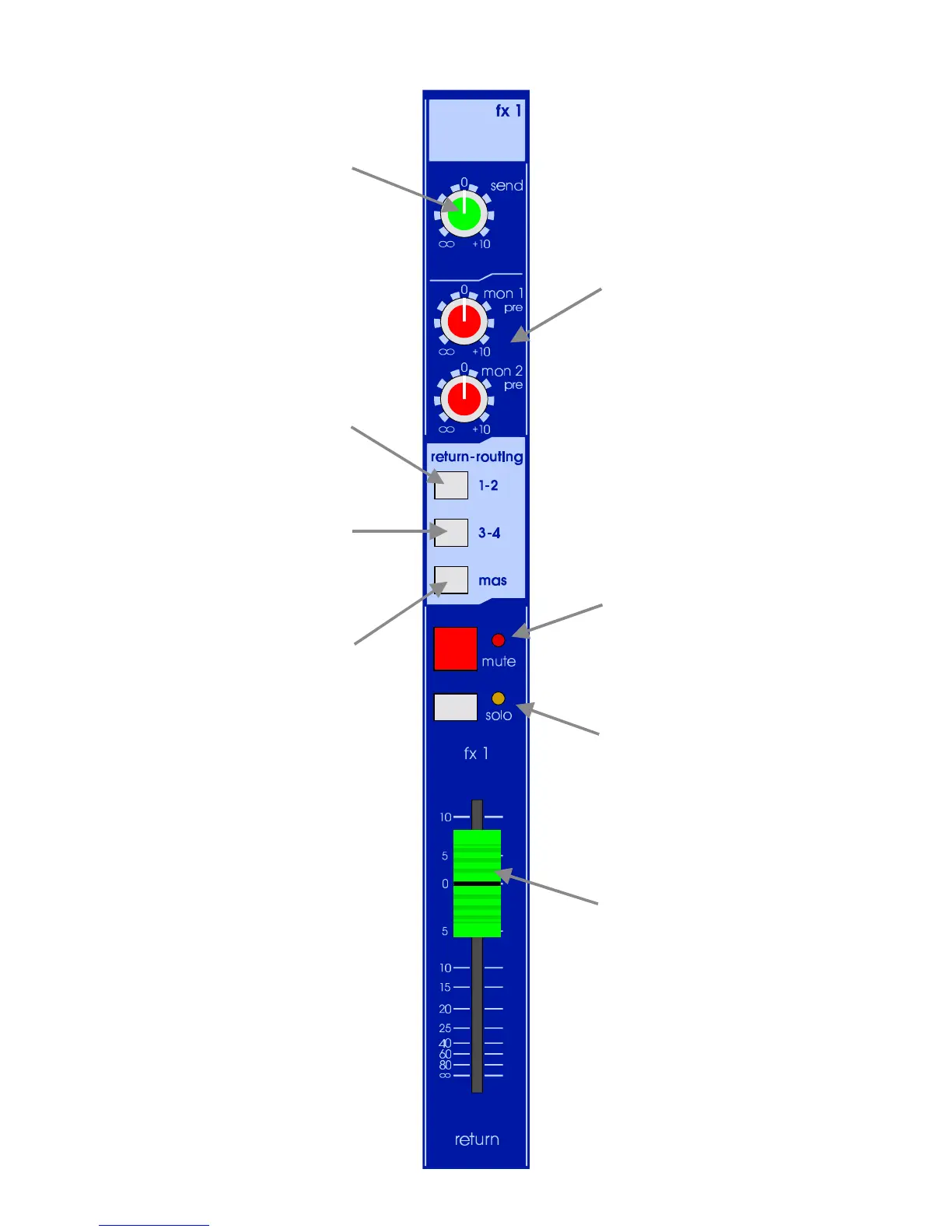

The FX SEND control gives con-
tinuous adjustment of the FX
send output level from +10dB to
off with 0dB at the centre positi-
on of the rotary control.
The 1-2 switch connects the post
fader FX- return left signal to the
group 1 bus and right signal to
the group 2 bus.
The 3-4 switch connects the post
fader FX- return left signal to the
group 3 bus and right signal to
the group 4 bus.
The MAS switch connects the
post fader FX- return stereo si-
gnal to the stereo master bus.
The MON controls give conti-
nuous adjustment of the pre- fa-
der signal sent from the FX-
return channel to the MON bus-
ses. The level adjustment is from
+ 10dB to off with 0dB at the
centre position of the rotary con-
trol.
The MUTE switch mutes the FX-
return at all pointes.
The SOLO switch sends the FX-
return signal to the PFL / mono
and AFL / stereo busses. If the
switch is engaged the mon 1/2
meters are automatically used
for solo metering
The FADER gives continous ad-
justment of the FX- return level
from +10dB to off.
