Midas XL200

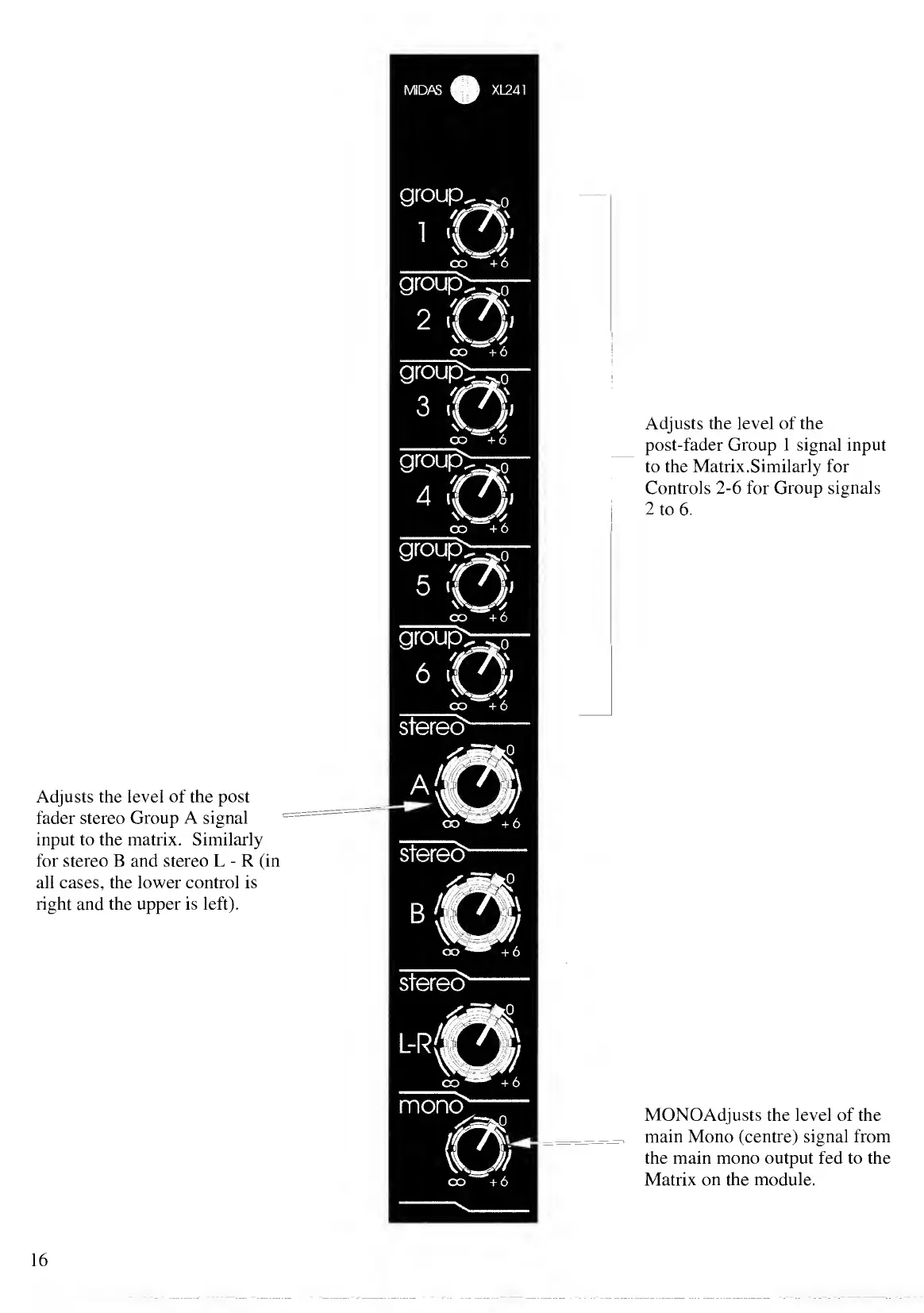

Adjusts the level of
the
post
fader stereo
Group A signal
input to the matrix. Similarly
for stereo B and stereo L
-
R (in
all cases, the lower control is
right and the upper is left).
Adjusts the level of the
post-fader Group 1 signal input
to
the Matrix. Similarly for
Controls
2-6
for Group signals
2
to 6.
MONOAdjusts the level of the
main Mono (centre) signal from
the main mono output fed to the
Matrix
on the module.
16
