Midas XL200

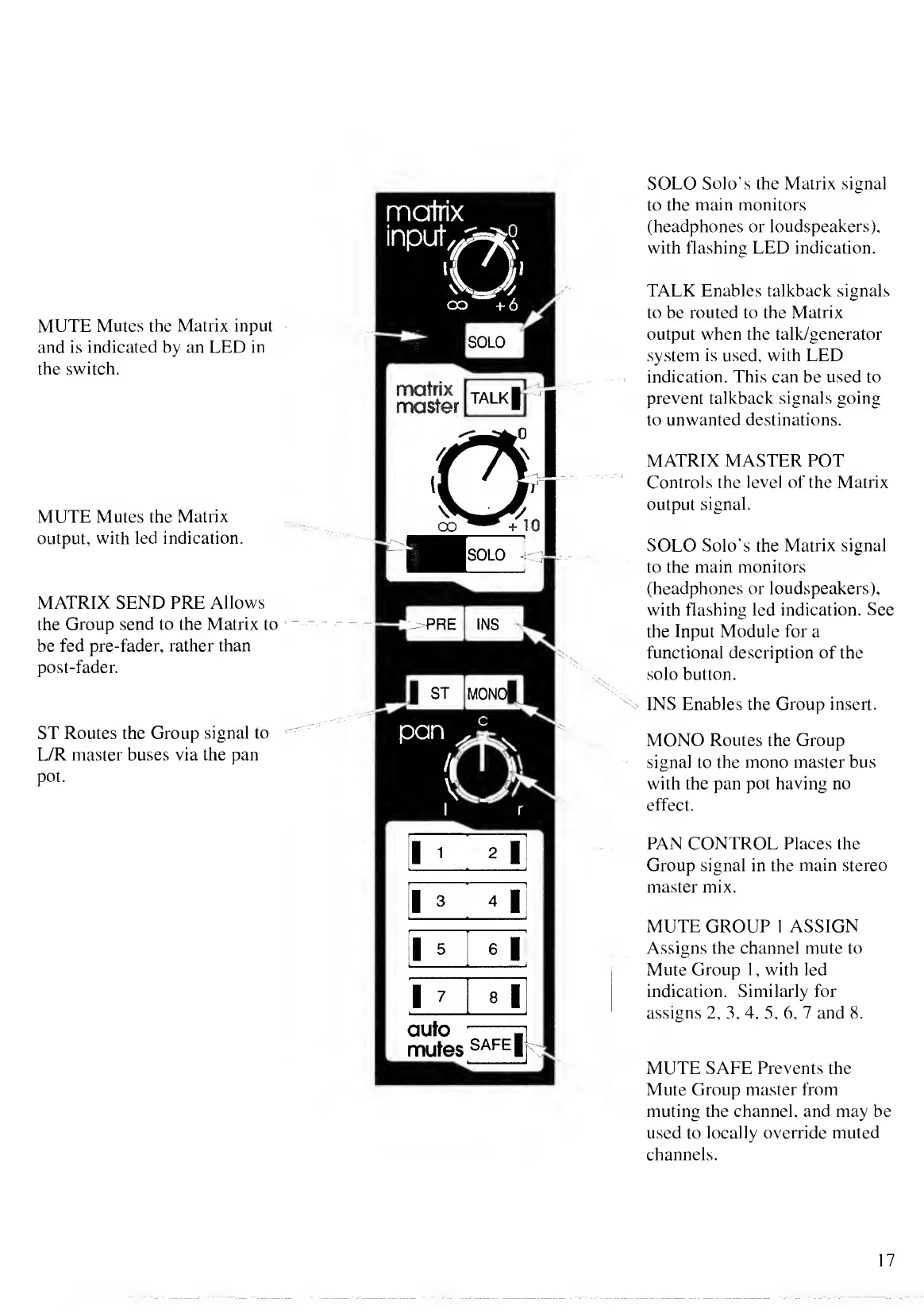

MUTE Mutes
the Matrix input
and is indicated by an LED
in
the switch.
MUTE Mutes the Matrix
output, with led indication.
MATRIX SEND PRE
Allows
the
Group send to the Matrix to
be fed
pre-fader, rather than
post-fader.
ST Routes the Group
signal to
L/R master buses via the pan
pot.
SOLO Solo’s the Matrix signal
to
the main monitors
(headphones or
loudspeakers),
with flashing LED indication.
TALK Enables talkback signals
to be routed to
the Matrix
output when the talk/generator
system is used, with LED
indication. This can
be
used
to
prevent
talkback signals going
to unwanted destinations.
MATRIX MASTER POT
Controls the level of the Matrix
output signal.
SOLO
Solo's the Matrix signal
to the main monitors
(headphones or loudspeakers),
with flashing led indication. See
the
Input Module for
a
functional description of the
solo button.
INS
Enables the Group insert.
MONO Routes the Group
signal to the
mono master bus
with
the pan pot having no
effect.
PAN CONTROL Places the
Group signal in the
main stereo
master mix.
MUTE GROUP 1 ASSIGN
Assigns the channel mute to
Mute
Group
1,
with led
indication. Similarly for
assigns
2,
3,
4,
5, 6,
7
and 8.
MUTE SALE Prevents the
Mute Group master from
muting the channel, and may be
used to
locally override muted
channels.
17
