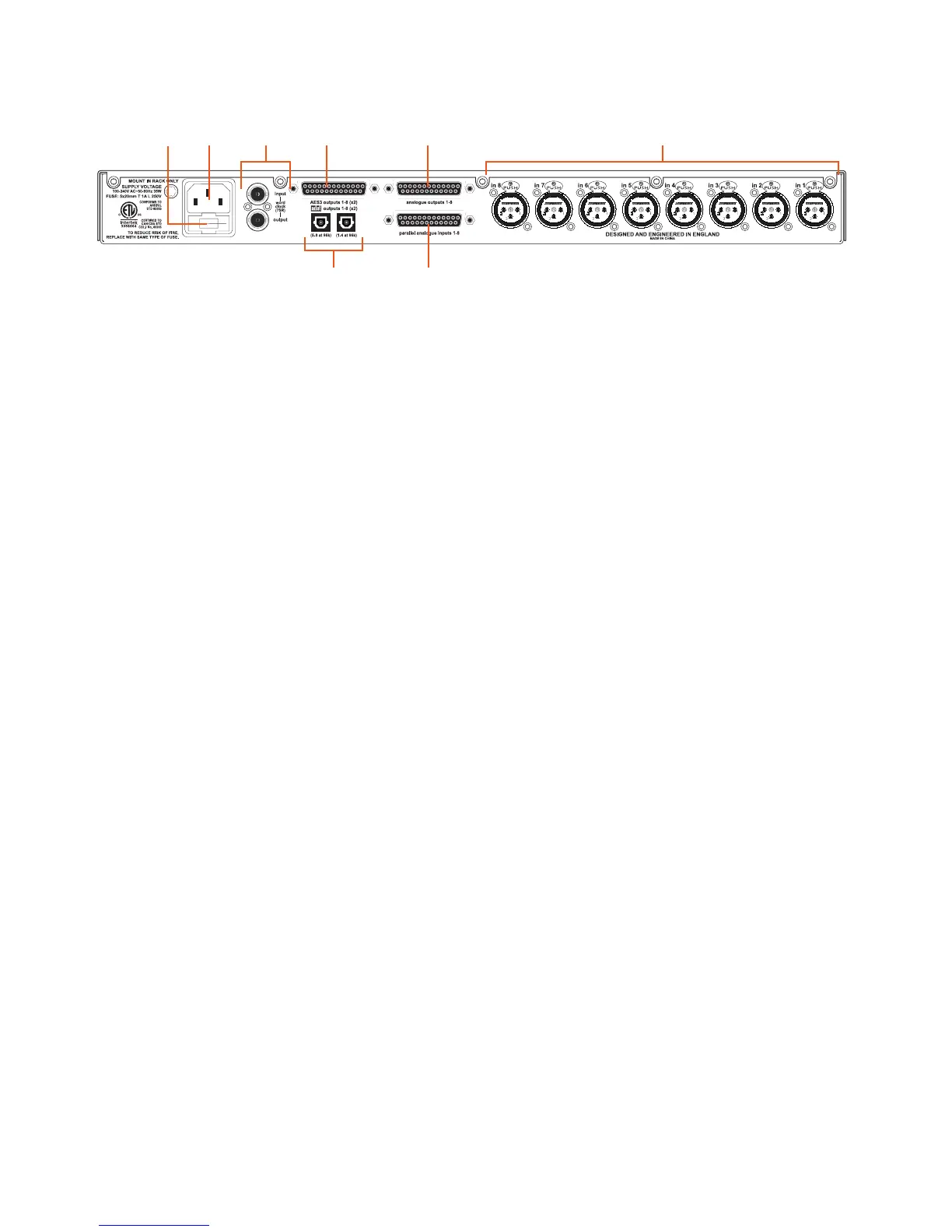

4. Rear Panel
2 3 64 5
7
8
1
(1) Mains fuse — compartment housing the mains fuse.
(2) Mains power inlet — IEC socket for mains power supply in the range 100V
to 240 V AC, 50 Hz to 60 Hz.
(3) Word clock connectors — input and output BNC connectors for connecting
to a word clock Input terminated (75R) and output notterminated.
(4) AES3 outputs connector — two sets of eight AES3 connections on one
25way Dtype connector.
(5) Analogue outputs connector — eight balanced analogue outputs connected
via a 25way Dtype connector.
(6) Analogue inputs — eight electrically balanced female XLR chassis
connectors (pin 2 hot).
(7) Parallel analogue inputs connector — eight balanced analogue inputs
connected via a 25way Dtype connector.
(8) ADAT outputs — two ADAT (Alesis Digital Audio Tape) high speed optical
output TOSLINK connectors provide eight channels of 24bit audio at 44.1kHz,
48kHz, 88.2kHz or 96kHz FS (sample frequency).
