6. Conguring The XL48
Selecting the sample frequency and sync
96k/
int sync
88.2k/
int sync
48k/
int sync
44.1k/
int sync
96k/
ext sync
88.2k/
ext sync
48k/
ext sync
44.1k/
ext sync

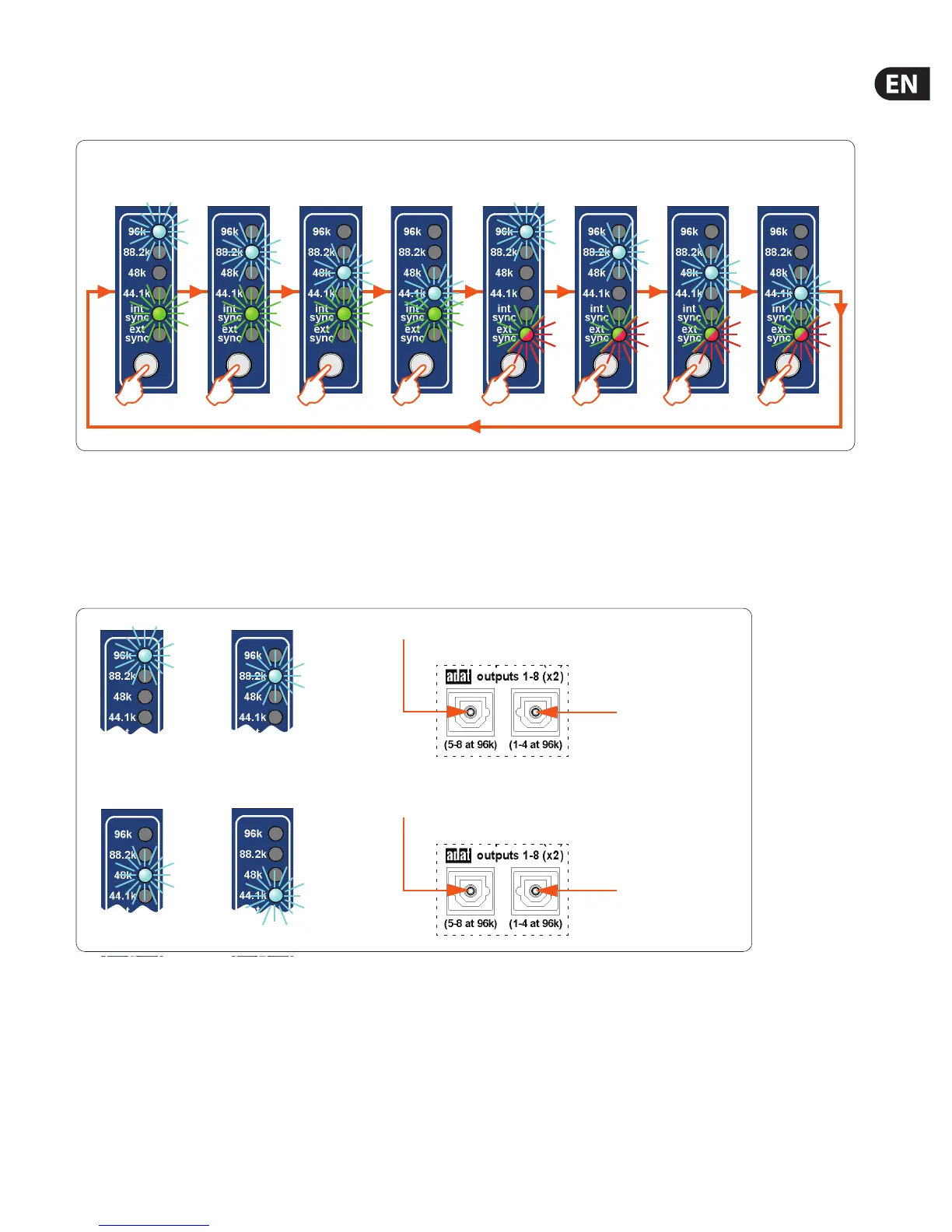

Figure 3: Scrolling through the sample rate/sync options.
When using an external clock source the dual coloured ext sync LED will
illuminate red until the unit recognises a valid clock, at which point the ext sync
LED will turn green to indicate that the incoming clock is locked.
Holding down the button at power on resets the unit to its default settings
(internal clock = 96kHz).
Channels 5 to 8 only
Channels 1 to 4 only
or =
Channels 1 to 8
Channels 1 to 8
or =
Figure 4: Available ADAT output channels per sample rate.
