SECTION 3 - SERVICING COMPONENTS

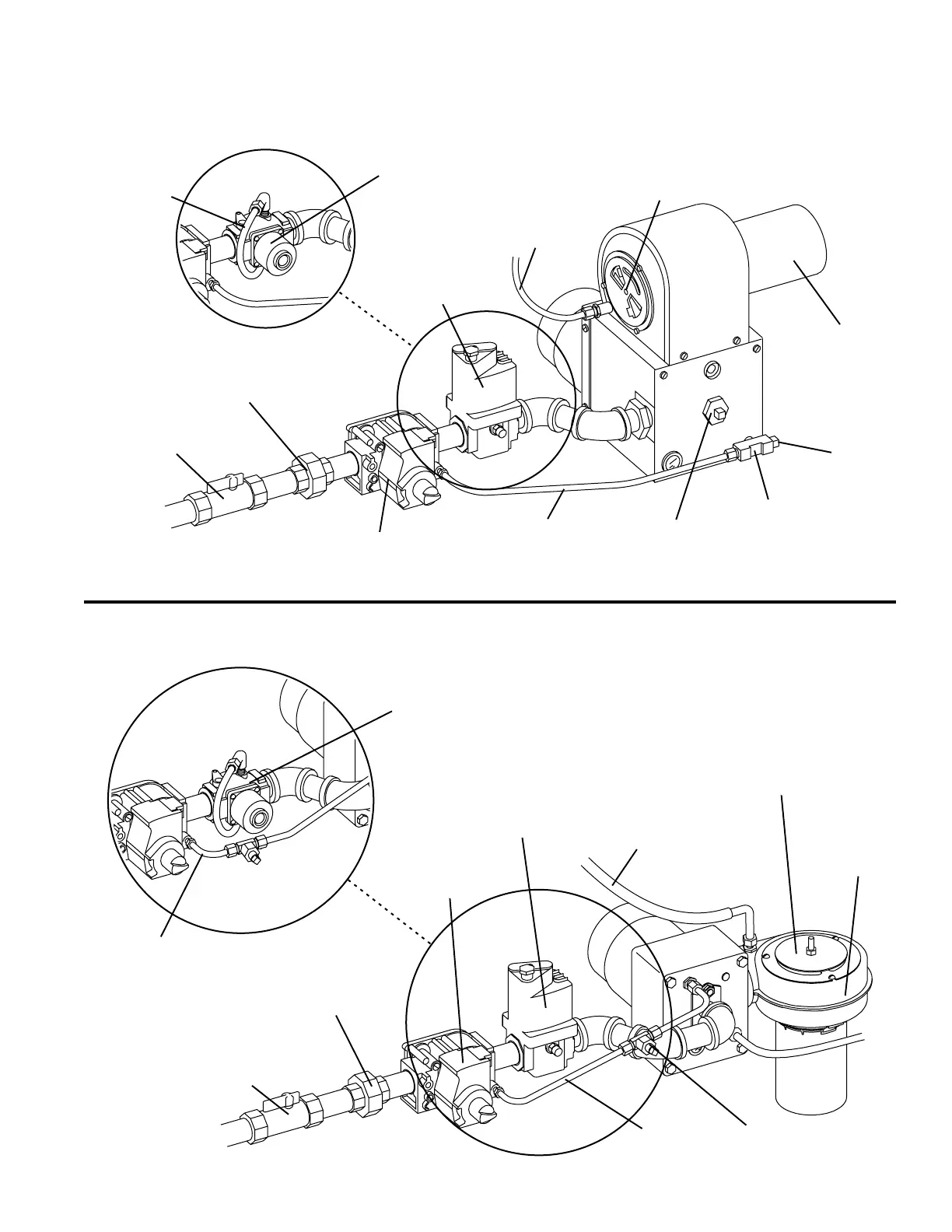

Figure 56
PS360EWB or PS360WB70 gas train with Midco burner
Figure 57
PS360EWB or PS360WB70 gas train with Wayne burner
Air shutter
42810-0087
Burner blower
and motor assy,
208/240V
27170-0287
Manual shutoff
valve, 3/4
23115-0010
3/4 union
23051-0004
Combination gas
control valve, 3/4
32569
PS360EWB ONLY:
M520 modulating
valve, 3/4
32570
PS360WB70 ONLY:
Solenoid valve, 3/4
31500
Pilot
pressure
tap
30185
Air shutter
36830
Burner blower
motor,
208/240V
32195
Manual shutoff
valve, 3/4
23115-0010
3/4 union
23051-0004
Combination gas
control valve, 3/4
32569
PS360EWB ONLY:
M420 modulating
valve, 3/4
32570
PS360WB70 ONLY:
Solenoid valve, 3/4
31500
Pilot orifice
See chart on
Page 69
Pilot
pressure
tap
Pilot line
(1/4 aluminum tubing)
15125-0002
(per foot)
PS360WB70
ONLY:
Bypass line
(1/4 aluminum
tubing)
15125-0002
(per foot)
Air tube
(silicone rubber)
22450-0297
(per foot)
TO NEGATIVE (-)
SIDE OF AIR
SWITCH
Air tube
(silicone rubber)
22450-0297
(per foot)
TO POSITIVE (+)
SIDE OF AIR
SWITCH
PS360WB70 ONLY:
Bypass line
(1/4 aluminum tubing)
15125-0002
(per foot)
Pilot line
(1/4 aluminum
tubing)
15125-0002
(per foot)
Main orifice
See chart on
Page 69
