Middleby Marshall PS360 SERIES Technical & Service Manual

88

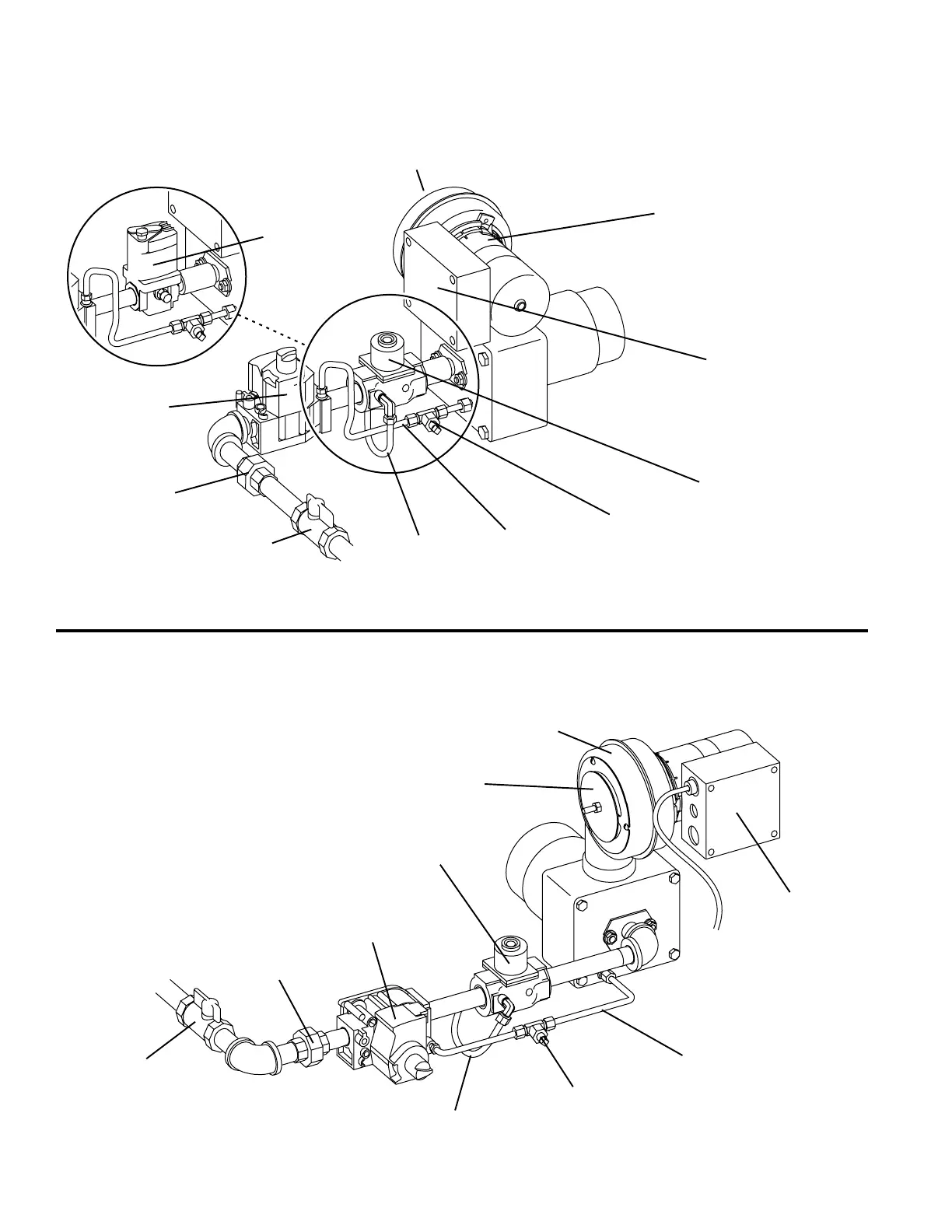

Figure 54
PS200-series gas train
Figure 55
PS310, PS314, PS360 or PS360WB gas train
Manual shutoff
valve, 1/2
23115-0009
1/2 union
23051-0003
Combination gas
control valve, 1/2
45688
Solenoid valve, 1/2
28091-0017
Pilot
pressure
tap
30185
Bypass line
(1/4 aluminum tubing)
15125-0002
(per foot)
Pilot line
(1/4 aluminum
tubing)
15125-0002
(per foot)
Burner blower and motor assy, 120V
with centrifugal safety switch
27170-0011
Air shutter
42810-0087
Junction box
Includes:
240Vp:120Vs
transformer
27170-0017
Relay
27170-0016
Manual shutoff
valve, 1/2
23115-0009
1/2 union
23051-0003
Combination gas
control valve, 1/2
45688
OVENS WITH
ON/OFF GAS
SYSTEM ONLY:
Solenoid valve, 1/2
28091-0017
Burner blower and motor assy
OVENS WITH ON/OFF
GAS SYSTEM ONLY:
120V motor assy with centrifugal
safety switch 27170-0011
OVENS WITH MODULATING
GAS SYSTEM ONLY:
208/240V motor assy 27170-0287
Pilot
pressure
tap
30185
Pilot line
(1/4 aluminum
tubing)
15125-0002
(per foot)
Bypass line
(1/4 aluminum
tubing)
15125-0002
(per foot)
Air shutter
42810-0087
OVENS WITH ON/OFF
GAS SYSTEM ONLY:
Junction box
Includes:
240Vp:120Vs
transformer 27170-0017
Relay 27170-0016
X. GAS TRAIN AND BURNER SYSTEM
A. Part Number Reference -
Gas Train Components
SECTION 3 - SERVICING COMPONENTS
OVENS WITH
MODULATING GAS
SYSTEM ONLY:
M420 modulating
valve, 1/2
41647
