Middleby Marshall PS640 - Page 10

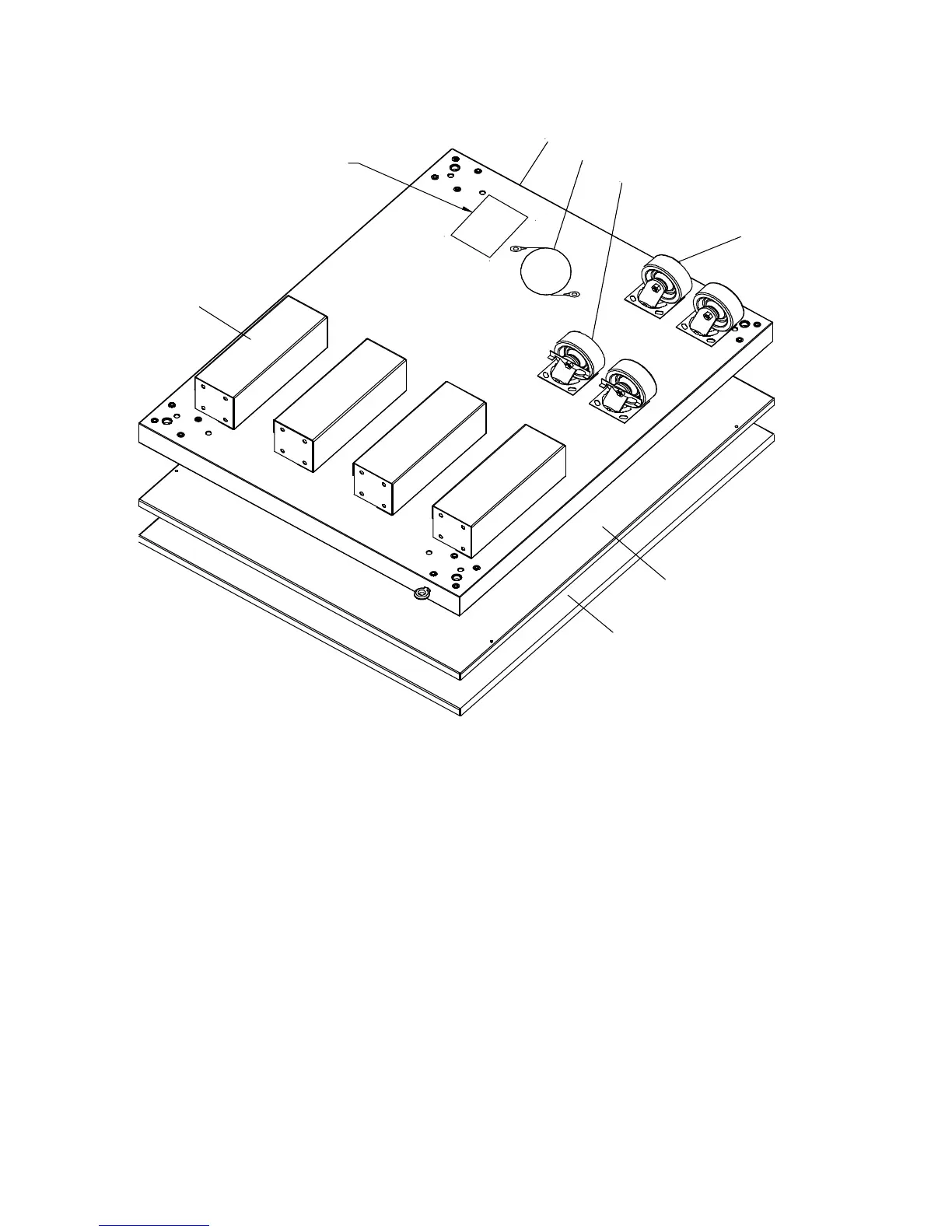

Figure 2-2A. Model PS640 24
″″
″″
″ Single Oven
Option Base with Legs and Top
PARTS LIST FOR PS640 SERIES 24
″″
″″
″ SINGLE OVEN OPTION - BASE w/15
″″
″″
″ LEGS & TOP
P/N 61123
HARD WARE BA G
5, 6, 7, 10 & 11
1
2
3
4
9
8
12
ITEM NO. QTY PART NO. DESCRIPTION
1 1 61126 COMPLETE BASE WELDMENT
2 4 37900-0024 TOP PLATE, LEG WELDMENT
3 2 22290-0009 SWIVEL CASTER W/BRAKE FLAT PLATE
4 2 22290-0010 SWIVEL CASTER FLAT PLATE
5 32 2000531 3/8″-16 × 1″ HEX SCREW, SST
6 32 21416-0001 3/8″ FLAT WASHER, SS
7 32 21422-0001 3/8″ SPLIT LOCK WASHER, ZP
8 1 22450-0228 RESTRAINT CABLE ASSEMBLY
9 1 61125 TOP COVER
10 2 59677 SCR, MS SL TR HD 10-32 × 2-1/2″
11 2 7A2S15 SCR, MS STR TRSHD 10-32 × 3/4″
12 1 61128 SUPPORT, SHELF
