Middleby Marshall PS640 - Page 15

ITEM NO. QTY PART NO. DESCRIPTION
1 1 60287 COMPLETE BASE WELDMENT
2 4 45209 QUAD OUTRIGGER WELDMENT
3 2 22290-0009 SWIVEL CASTER, W/BRAKE FLAT PLATE
4 2 22290-0010 SWIVEL CASTER, FLAT PLATE
5 4 45206 INSERT,QUAD ADJUSTMENT FOOT
6 4 45205 SPACER,QUAD CASTER
7 32 A27727 3/83 -16x1-1/4 HEX BOLT
8 32 A21924 3/83 FLAT WASHER, SS
9 32 21422-0001 3/83 SPLIT LOCK WASHER, ZP
10 16 21172-0004 3/83 -16 NYLON INSULATED LOCKNUT, ZC
11 8 2001048 1/23 -13 x 1-3/8 18-8 HEX CAPSCREW
12 8 A27750 1/23 18-8 FLAT WASHER
13 8 21422-0016 1/23 18-8 LOCK WASHER
14
2 59677 SCR, MS SL TR HD 10-32X2-1/2
15 1 22450-0228 RESTRAINT CABLE ASSEMBLY
16 1 59560 TOP COVER
17 2 7A2S15 SCR, MS STR TRSHD 10-32X3/4″
PARTS LIST FOR PS640 SERIES 32
″″
″″
″ TRIPLE OVEN OPTION - BASE w/CASTERS & TOP
P/N 59726
HARDWARE BAG
7, 8, 9, 10, 11, 12,
13, 14, & 17
1
2
3
4
16
15
6
5

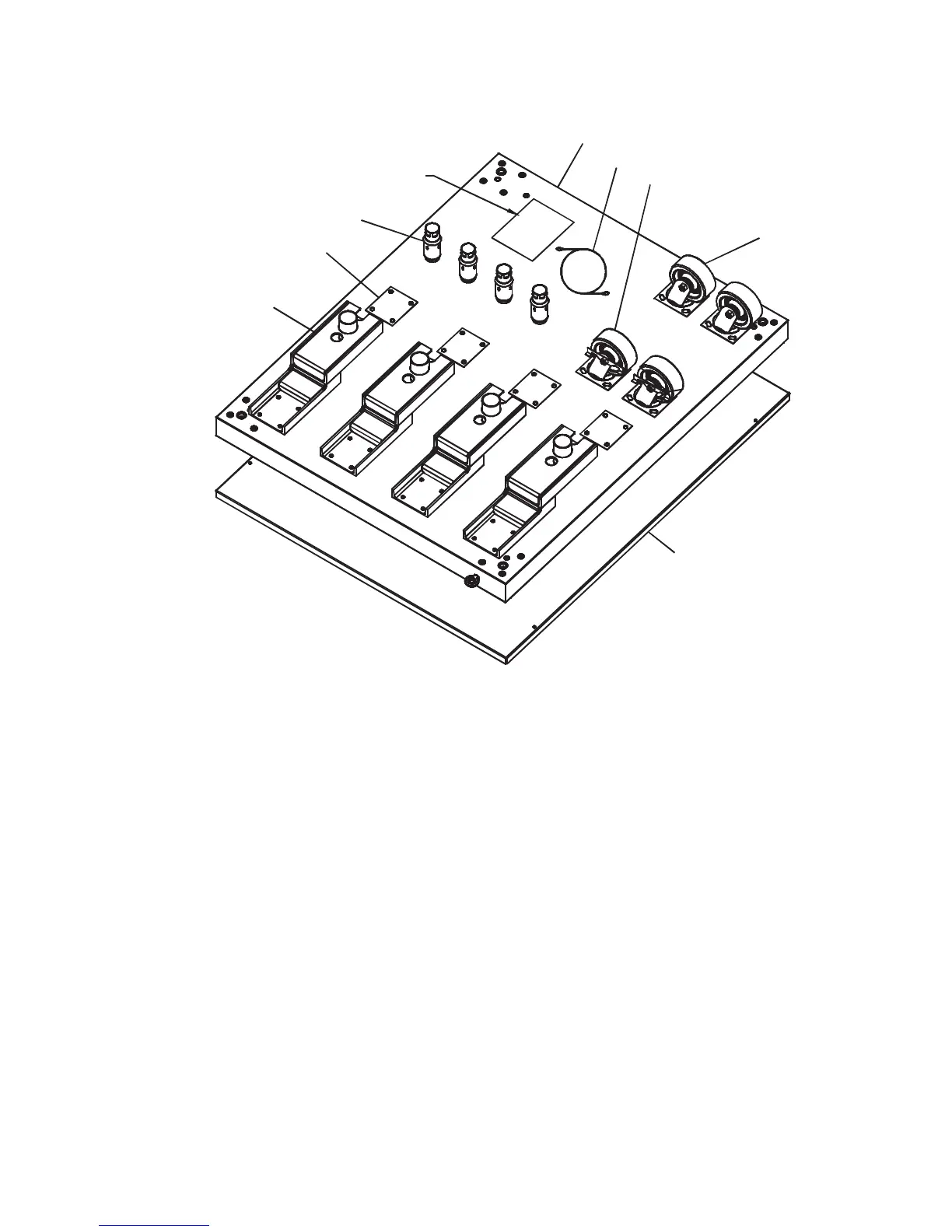

Figure 2-4B. Model PS640 32
″″
″″
″ Triple Oven
Option Base with Outriggers and Top
