MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
115

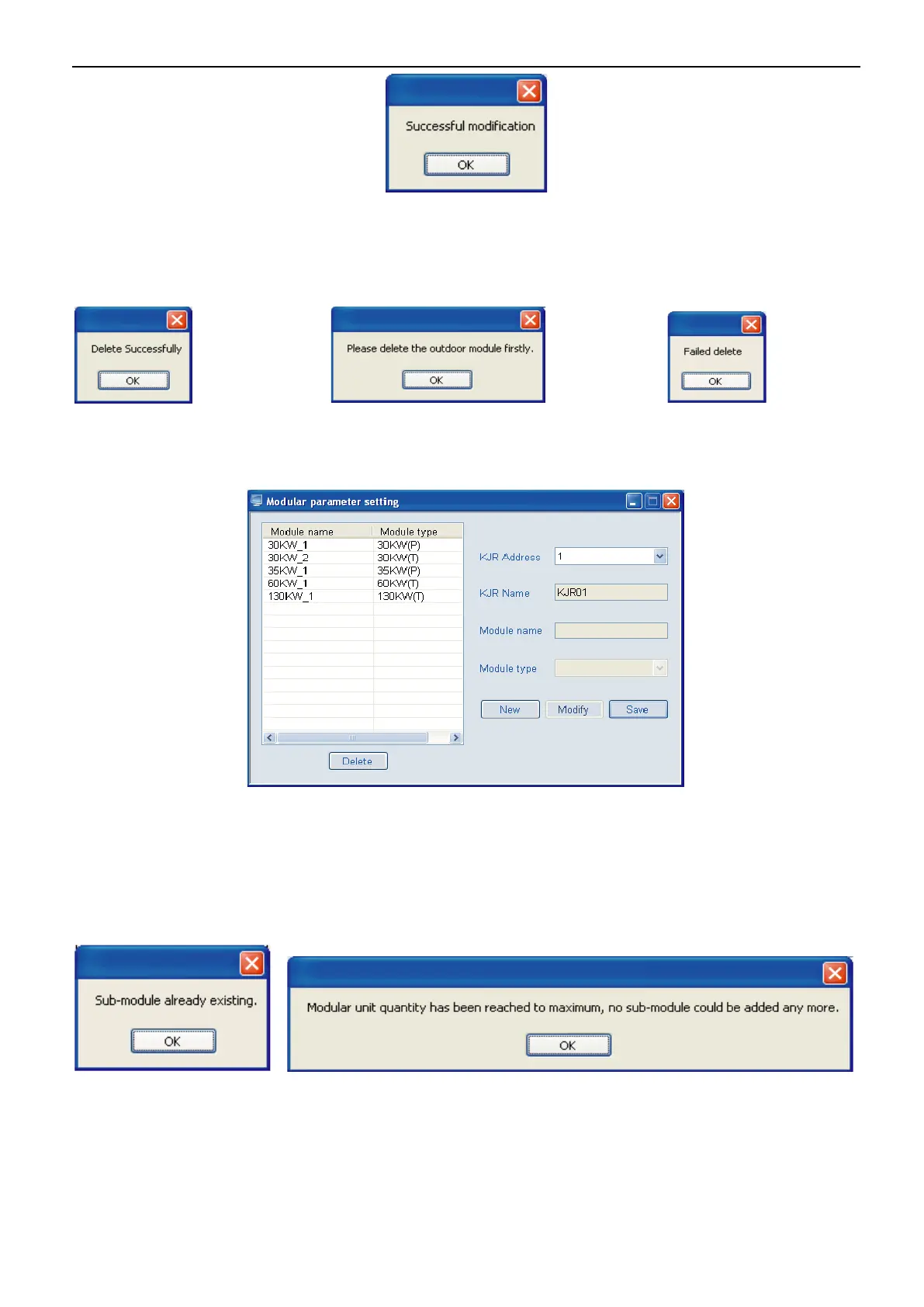

c、 Delete wired controller: Select an existing wired controller (as above method), and click “Delete”, if there
is no outdoor module controlled by any wired controller (see Fig. 4-22), the one could be deleted; if there are
outdoor modules controlled by wired controller (see Fig. 4-23), a failed delete message box would pop up
(see Fig. 4-24). As long as delete all modules under connect the wired controller, the wired controller could be
deleted.
Note: Please select wired controller according to actual system condition.
② Click the “Module parameter setting”, a window as Fig.4-25 will pop up: add module group under connect
with the wired controller
a、Add sub-module: Select the existing wired controller address from the “KJR Address”, and select the
configured module group at the drop-down box of “Module name”, select the sub-module address in the
drop-down box of the configured “Sub-module address”, and then click “Add”. The sub-module would not be
configured, if the sub-module address without configured in this wired controller; if sub-module is exists, a
message box would pop up as Fig. 4-26 to note you, the sub-module cannot be configured. If the sub-module
quantity exceeds than the maximum module under connect with wired controller, the message box as Fig.
4-27 will pop up.
b、Delete sub-module: Select the sub-module which wanted to delete (select the wanted delete sub-module at
the drop-down box of “Sub-module address”), and click “Delete” to finish this operation.
3）“ Schedule management” includes: “Weekly timing setting” and “Error record”。 See Fig. 4-28
