Midea Aqua Tempto Power Series

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
29
2.4 MGBT-F120W/RN1

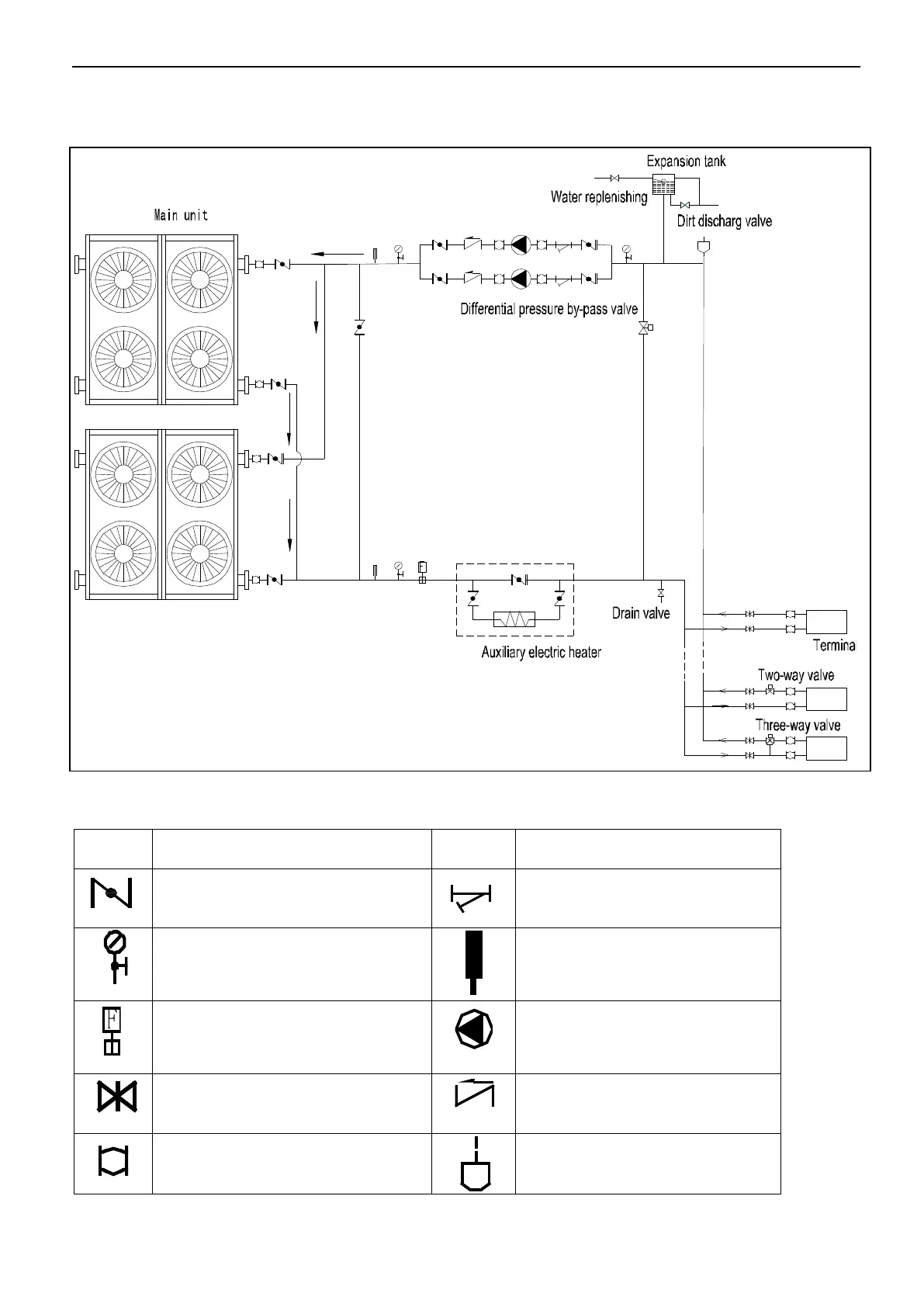

The table below describes the symbols.
Symbol
Symbol explanation
Symbol
Symbol explanation
Stop valve
Y-shaped filter
Pressure gauge
Thermometer
Water flow switch
Circulating pump
Gate valve
Check valve
Flexible joint
Automatic discharge valve
