MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
117

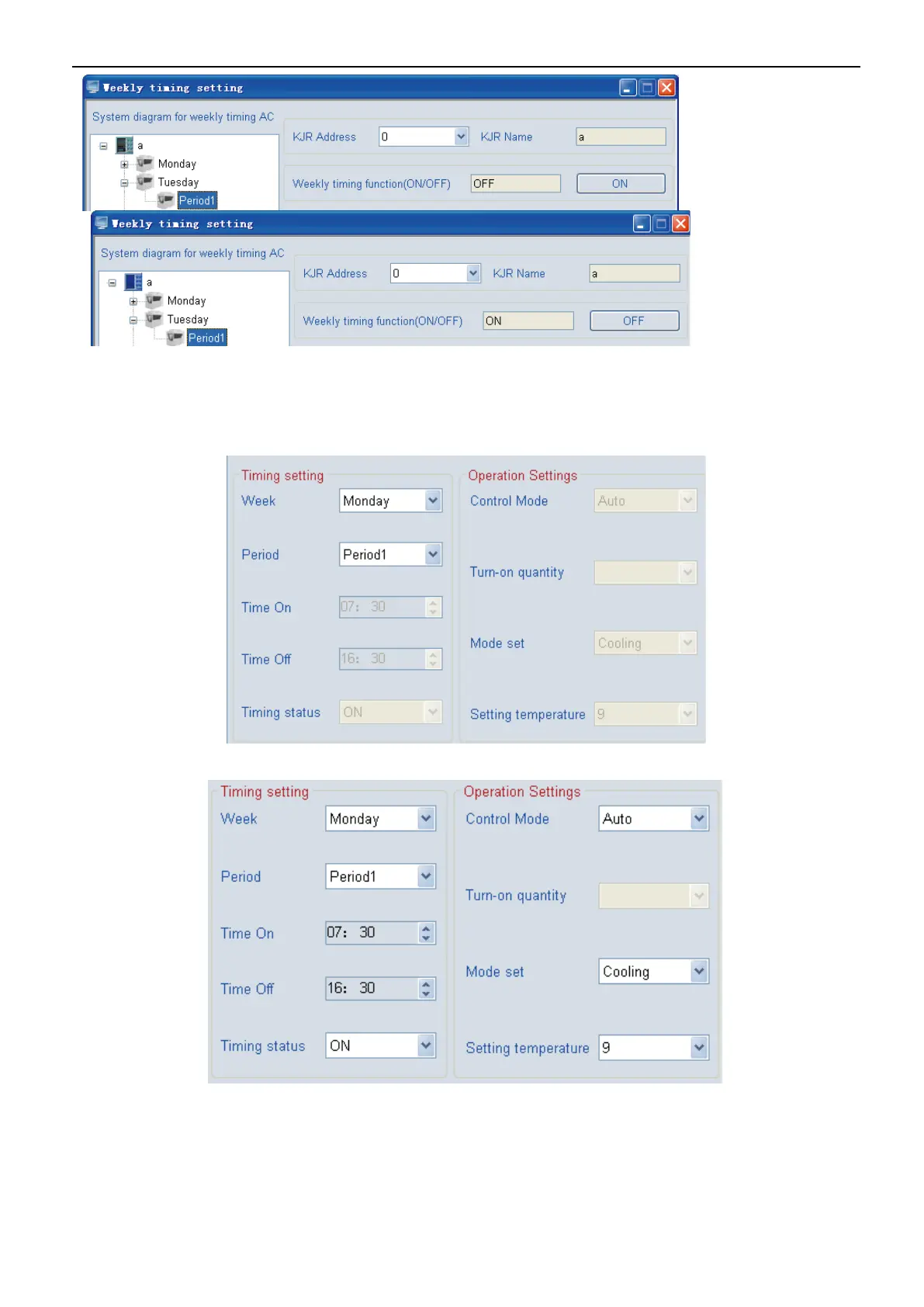

e、Save（See the ② key in the Fig.4-29）―― Save the current settings or the modified settings.
f、Modify(See the ③ key in the Fig.4-29) ――Press this key the parameter of selected period become
changeable, and then click “Save”. Press the key again, all parameters in this period become unchangeable.
See Fig. 4-33.
Select the setting Period, click “Modify”, all parameter will become changeable status, see Fig. 4-34.
g、Delete key (See the ④ key in the figure) ――select a Period and click the key, the current selected
Weekly Timing setting period could be deleted. Click the key, window as Fig. 4-35 shows, click “OK” to
delete Period. Successful delete the Period, message box as Fig. 4-36 will show.
