MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
121

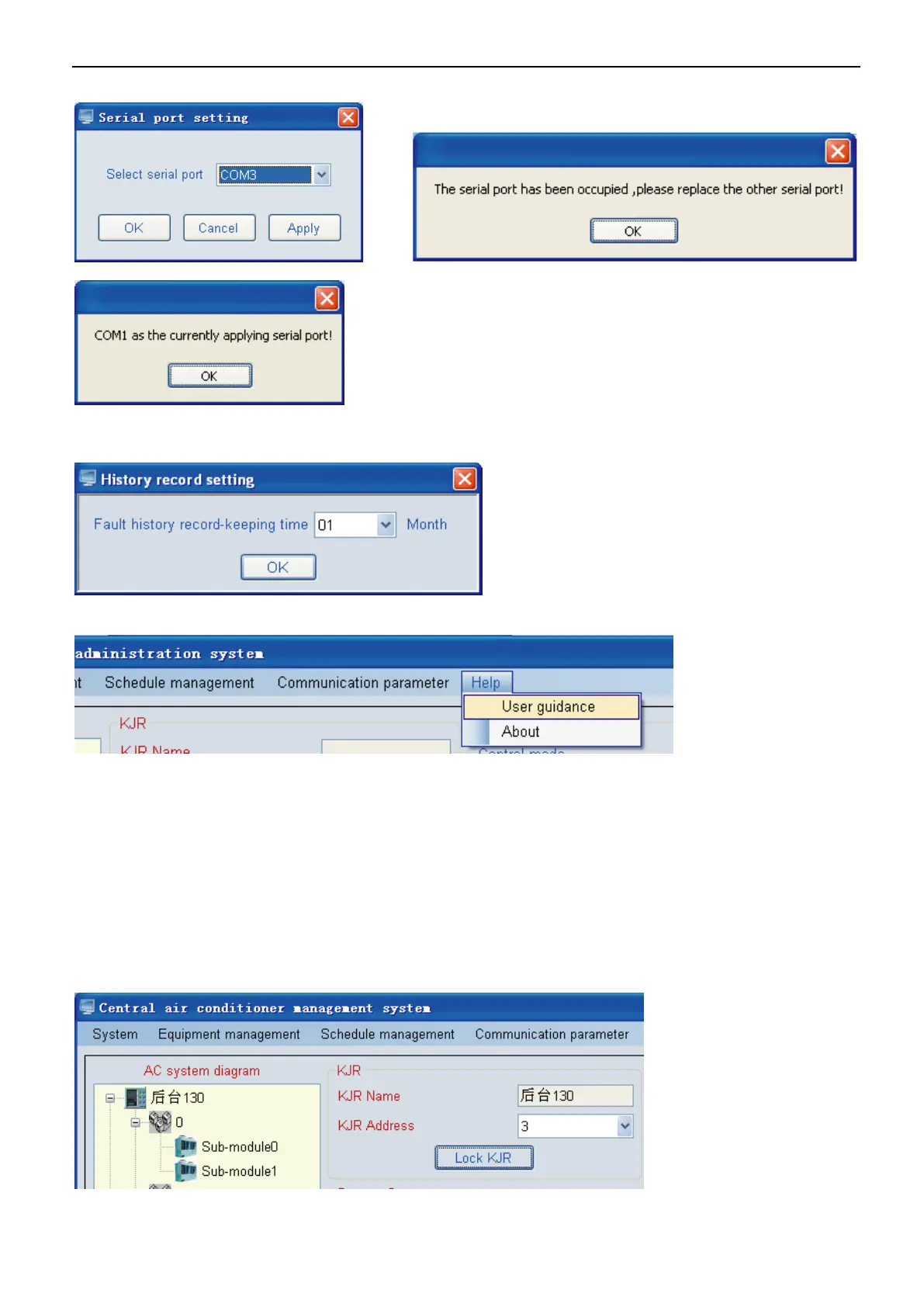

②Click “History set”, an interface as Fig. 4-54 displays ―――to modify or select the history error saving
duration.
5） “Help” includes：“ User guidance” and “About”. See Fig. 4-55
○
1 Owner’s manual——Software application manual, i.e. this manual.
②About——some relevant software information
Wired controller lock/unlock
Provided that the selected wired controller in unlock status, the key would display “Lock KJR”(see Fig. 4-56),
once successful lock the wired controller, the message box (see Fig. 4-57) would display, tells user that the
setting is successful, then the key displays “Unlock KJR”(see Fig. 4-58); If the set failed, message box (Fig.
4-59) would display. If without select wired controller, message box as Fig. 4-60 will display.
