Midea Aqua Tempto Power Series

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
125

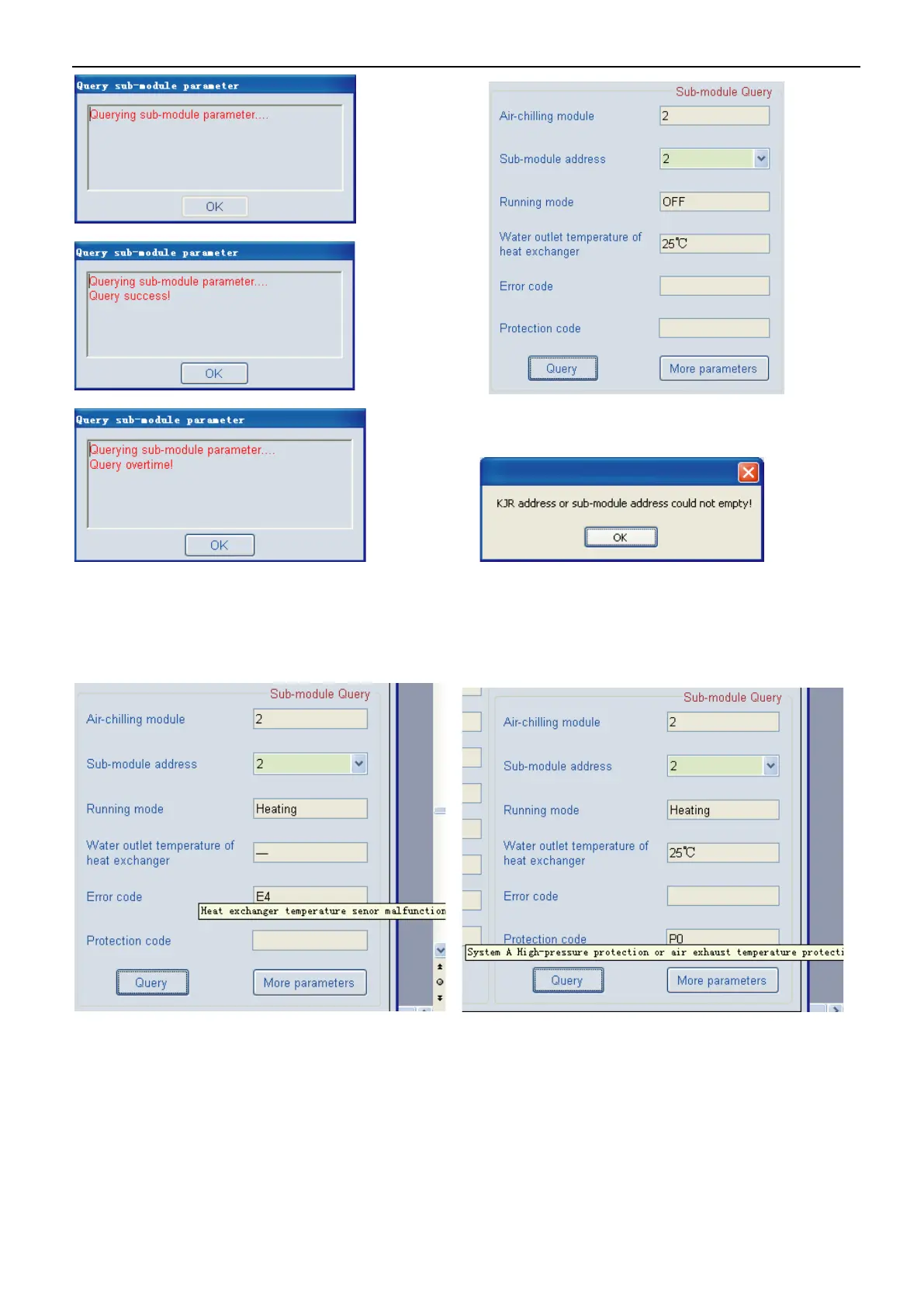

Provided that malfunction occur, the corresponding error code will show in the Sub-module query; Provided
that protection function perform, the corresponding protection code will show in the Sub-module query; if
move the mouse arrow to the these codes, a floating window as the follows Fig. 4-77 and 4-78 will
appearance to giving the specific error or protection information.
More parameters
Click More Parameters, you could query more data (See Fig.4-79). If the sub-module hasn’t been selected, a
message box as Fig. 4-80 would show. You must click a certain sub-module firstly, and then to click the “More
parameters” key, more parameter could be queried; a message box (See Fig.4-81) will display informing more
parameters are empty.
Fig.4-80
Fig.4-79
Fig.4-72
Fig.4-74
Fig.4-75
Fig.4-76
Fig.4-77
Fig.4-78
Fig.4-73
