Midea Aqua Tempto Power Series

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
57

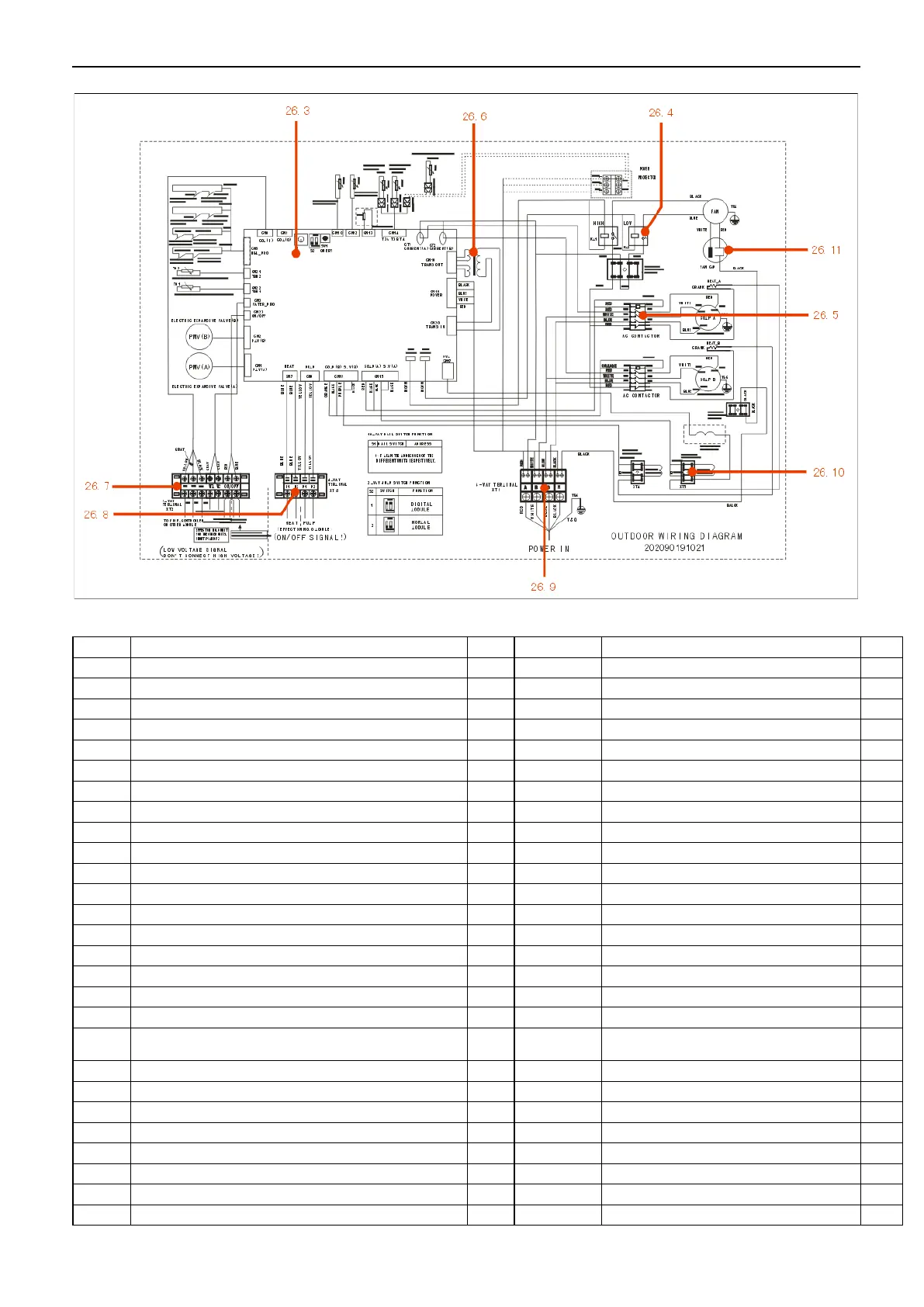

No.
Part Name
Qty
No.
Part Name
Qty
1
Net
2
33
Cover
1
2
Right seal plate ass'y D of condenser
1
34
Ass'y C of left seal plate,condenser
1
3
Tube heat exchanger
1
35
Condenser components of unit B
1
4
Right seal plate ass'y A of condenser
1
36
Motor holder
2
5
Input pipe ass'y of unit B
1
37
Side sealed board
7
5.1
Electronic expansion valve
1
38
Clapboard supporting board
3
6
Input pipe ass'y II of unit B
1
39
Motor bracket bonding parts
1
7
Input pipe ass'y I of unit A
1
40
Cover
2
7.1
Electronic expansion valve
1
41
Motor
1
8
D machines take over the assembly solenoid valve
1
42
Axial fan
1
8.1
Pressure-relief-valve
1
43
Top cover
1
9
Output pipe ass'y of unit A
1
44
Middle partition plate
1
10
Four-way valve ass'y of unit A
1
45
Top cover
1
10.1
Four-way valve
1
46
Sealed board
1
10.2
Meter connector
3
47
Rear Cover
1
10.3
Muffler
1
48
Front cover
1
11
Input pipe ass'y II of unit A
1
49
About clapboard
2
12
Four-way valve ass'y of unit B
1
50
Wired controller
1
12.1
Four-way valve
1
51
Total water temperature mouth
components
1
12.2
Meter connector
3
52
EXV solenoid
2
12.3
Muffler
1
53
Pipe temperature sensor ass'y
2
13
Suction pipe ass'y A
1
54
Pipe temperature sensor ass'y
4
13.1
Meter connector
1
55
Room temp. sensor ass'y
1
14
Suction pipe ass'y of unit D
1
56
Discharge temperature sensor
2
14.1
Meter connector
1
57
Pressure controller
2
15
Support board
2
58
Pressure controller
2
16
Cover
1
32
Cover
1
