Midea Aqua Tempto Power Series

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
69
No.
Part Name
Qty
No.
Part Name
Qty
1
Column
4
43.3
Meter connector
2
2
About the protective screen
4
44
Evaporator output pipe ass'y
1
3
Network Rail fixed plate II
2
44.1
Pressure controller
1
4
The middle beams
2
45
Evaporator output ass'y
1
5
Roof rack crossbar
2
45.1
Pressure controller
1
6
I sealed connector condenser
3
46
Evaporator output pipe ass'y
1
7
Vertical beam roof rack
2
46.1
Pressure controller
1
8
Condenser sealed connector II
3
47
Welded base plate
1
9
Roof rack beam welding parts
2
48
Left panel II
1
10
Top cover
6
49
Strengthened beams II
2
11
Rear Panel II
1
50
I left panel
3
12
Condenser output tube II
3
51
Panel fasteners II
8
13
In lane bridge I
2
52
Triangular reinforcement
12
14
Block I installed electronic control box
2
53
Trunking II
1
15
Block III electronic control box installed
2
54
II trunking cover
1
16
Rear Panel I
1
55
Four-way valve Ⅲ
1
17
Block II Electronic Control Box Installation
2
55.2
Pressure controller
1
18
Electronic control box cover panel B
1
55.3
Meter connector
2
19

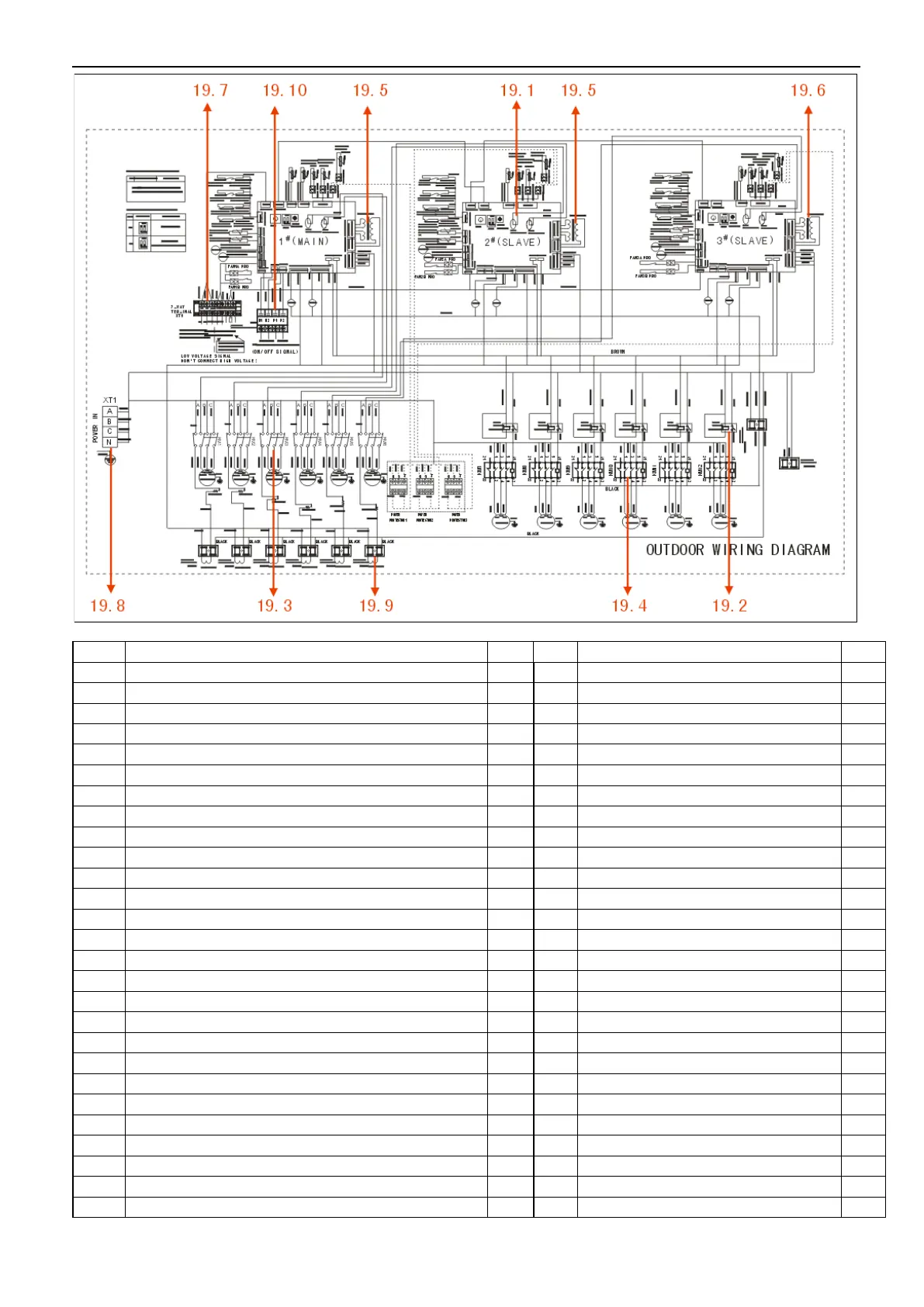

electronic control box assembly of Air-cooled module
1
56
Condenser output transition tube(unit C)
1
19.1
Main control board ass'y
3
57
Condenser output transition tube(unit D)
1
19.2
Relay
6
58
Input pipe of evaporator ass'y(unit F)
1
19.3
AC contactor
6
59
I output tube condenser
3
19.4
AC contactor
6
60
Input pipe ass'y of evaporator(unit E)
1
19.5
Transformer
2
61
Input pipe ass'y of evaporator(unit D)
1
19.6
Transformer
1
62
Tube fixed plate Ⅳ
1
19.7
7-terminal Block
1
63
Shell and tube evaporator
1
19.8
Wire joint(4P)
1
64
Duct I
1
