Midea ATOM MDV-V28WDHN1 - Dimensions

Atom B Series VRF 50/60Hz
16
Midea Atom B Series Engineering Data Book

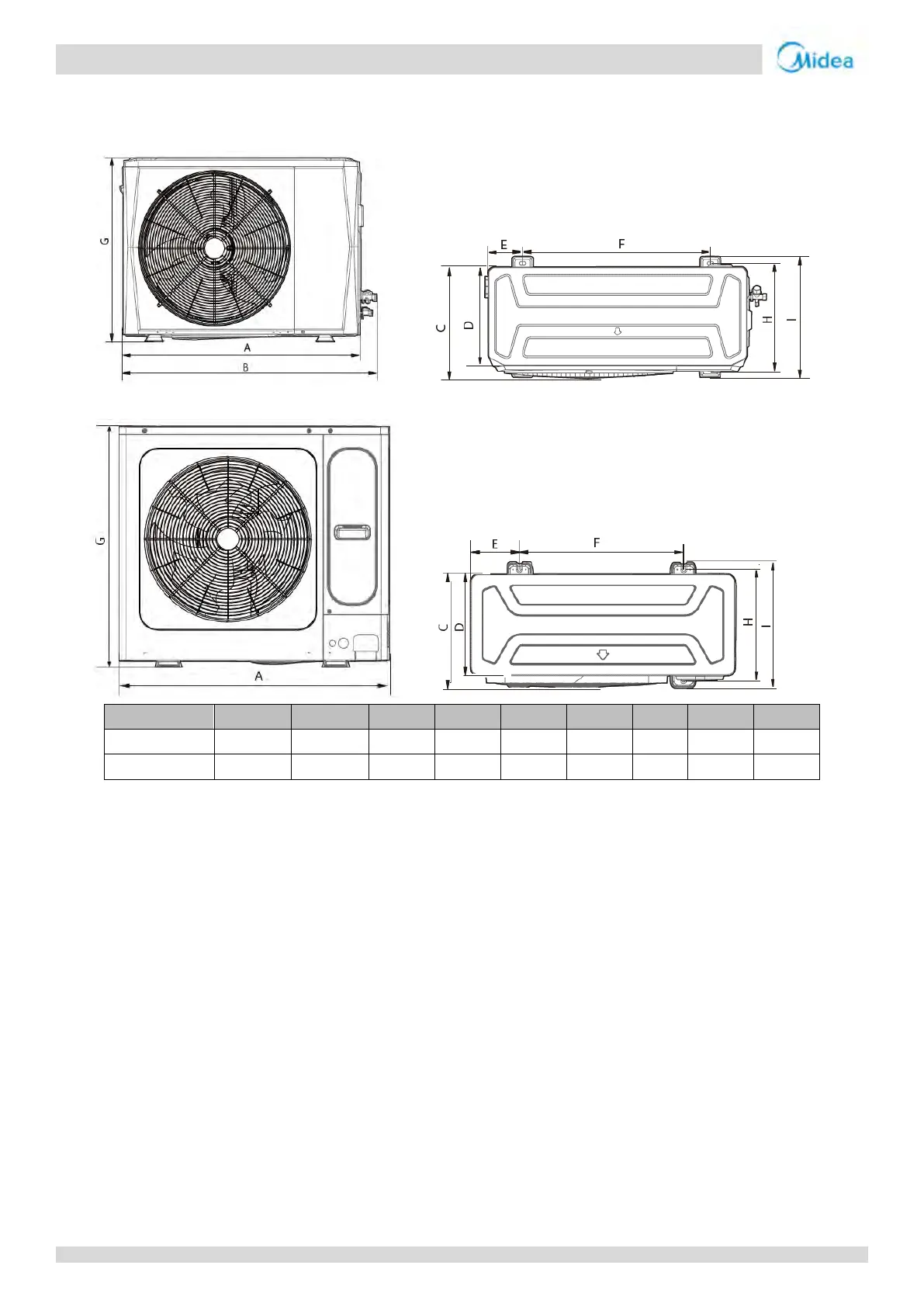

2 Dimensions (unit: mm)
Figure 2-2.1: Model 28 Front view dimensions Figure 2-2.2: Model 28 Top view dimensions
Figure 2-2.3: Model 36-56 Front view dimensions Figure 2-2.4: Model 36-56 Top view dimensions
Model
A
B
C
D
E
F
G
H
I
28
910
982
390
345
120
663
712
375
426
36/42/48/56
950
/
406
360
175
590
840
390
440
