Part 2 - Outdoor Unit Engineering Data

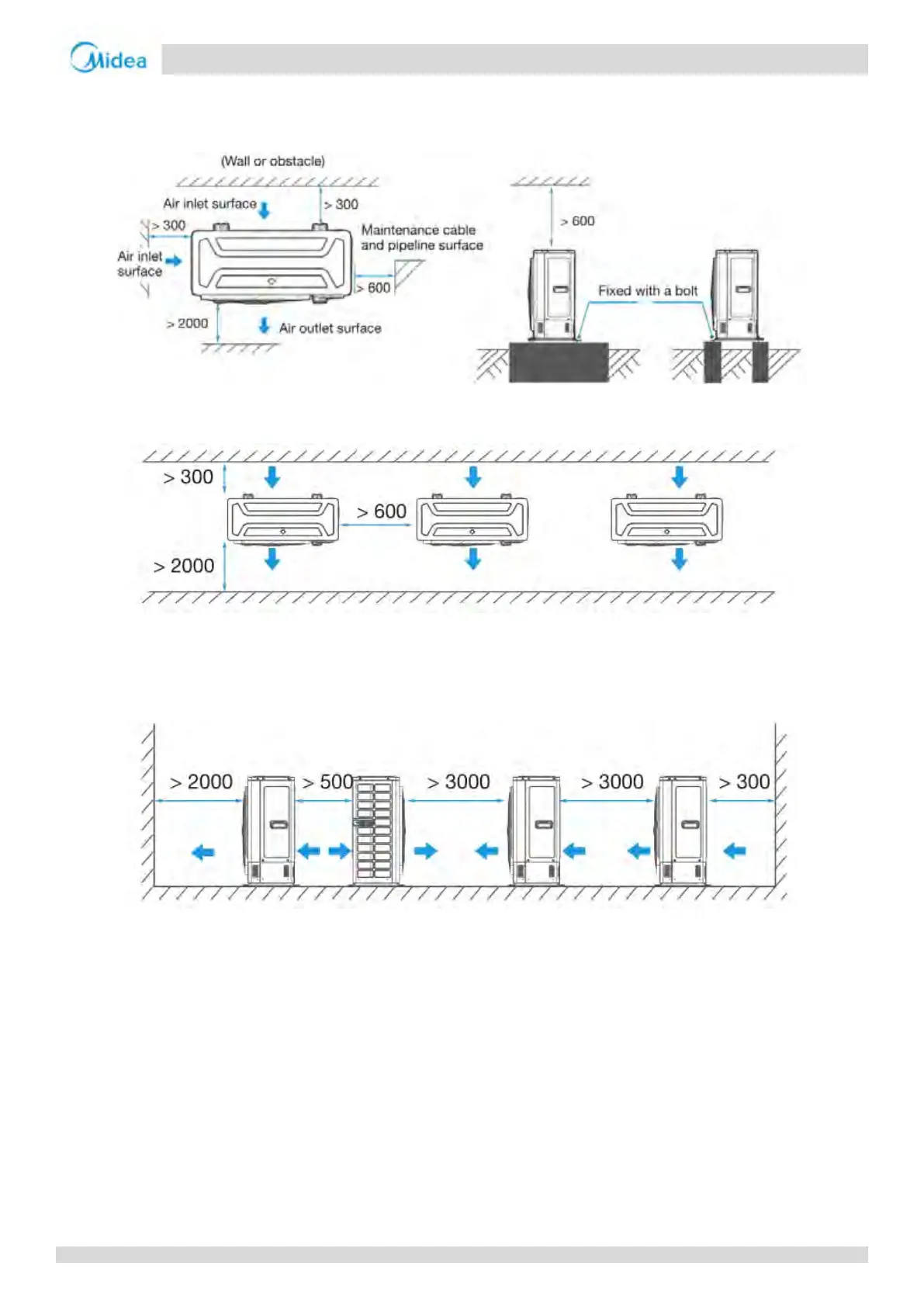

3 Installation Space Requirements
Figure 2-3.1: Single unit installation top view (unit: mm) Figure 2-3.2: Single unit installation side view (unit: mm)
Figure 2-3.3: Multiple unit installation top view (unit: mm)
Figure 2-3.4: Multiple unit installation side view (unit: mm)
