Midea Atom B Series Engineering Data Book
4 Piping Diagrams

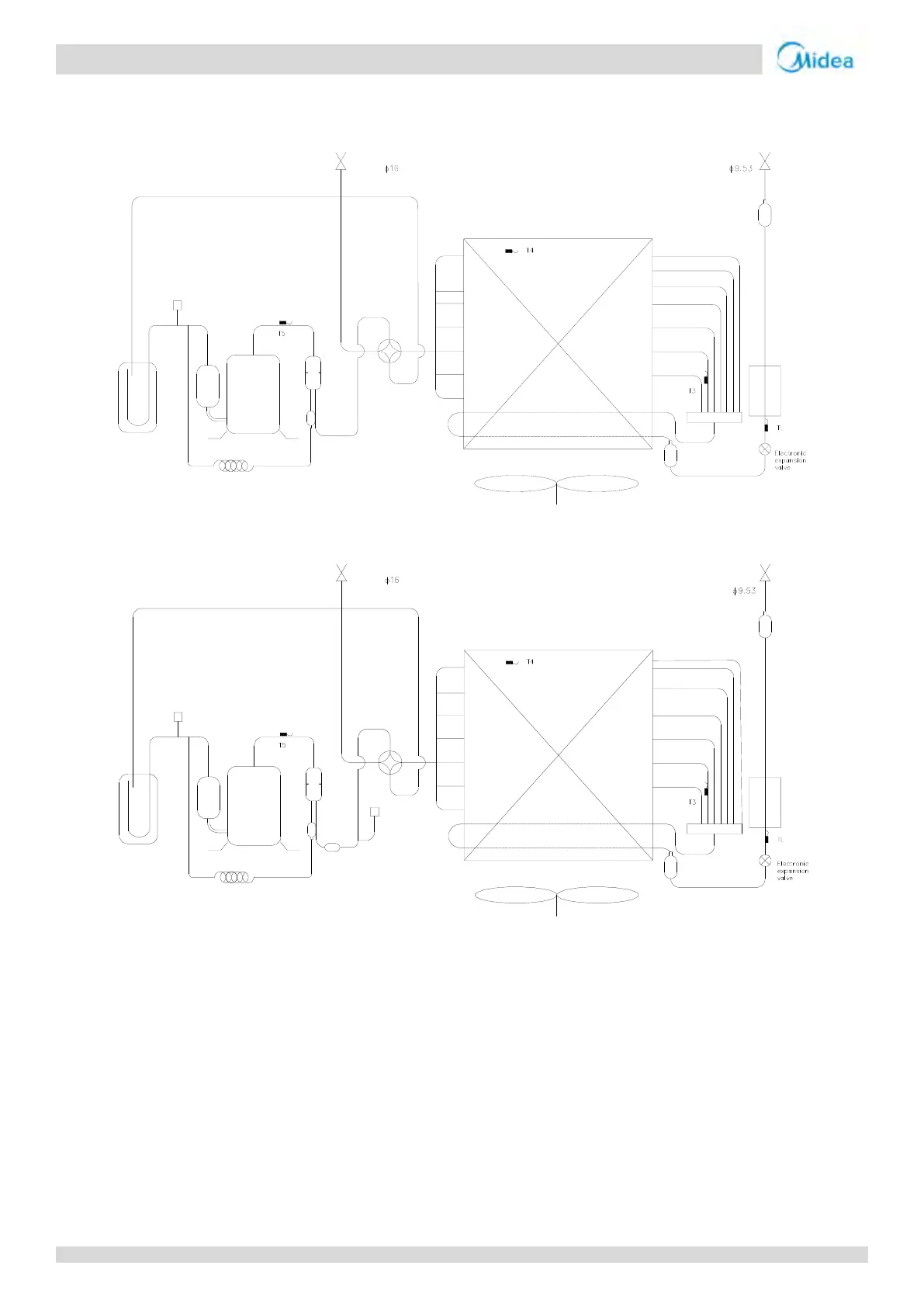

Figure 2-4.1: 28 model Piping diagram
Figure 2-4.2: 36 model Piping diagram
Oil
return
hole
Temperature
sensor
Distributor
Liquid pipe
Temperature
sensor
4 way valve
Gas pipe
Compressor
Temperature
sensor
Low pressure switch
Accumulator
Refrigerant
radiator
module
Temperature
sensor
Filter
Filter
Oil return capiliary
Oil seperator
DC motor
Silencer
High pressure switch
Temperature
sensor
Distributor
Liquid pipe
Temperature
sensor
4 way valve
DC motor
Gas pipe
Compressor
Temperature
sensor
Low pressure switch
Accumulator
Refrigerant
radiator
module
Temperature
sensor
Filter
Filter
Oil return capiliary
Oil sepetator
