Midea AURORA ONOFF Series - Page 22

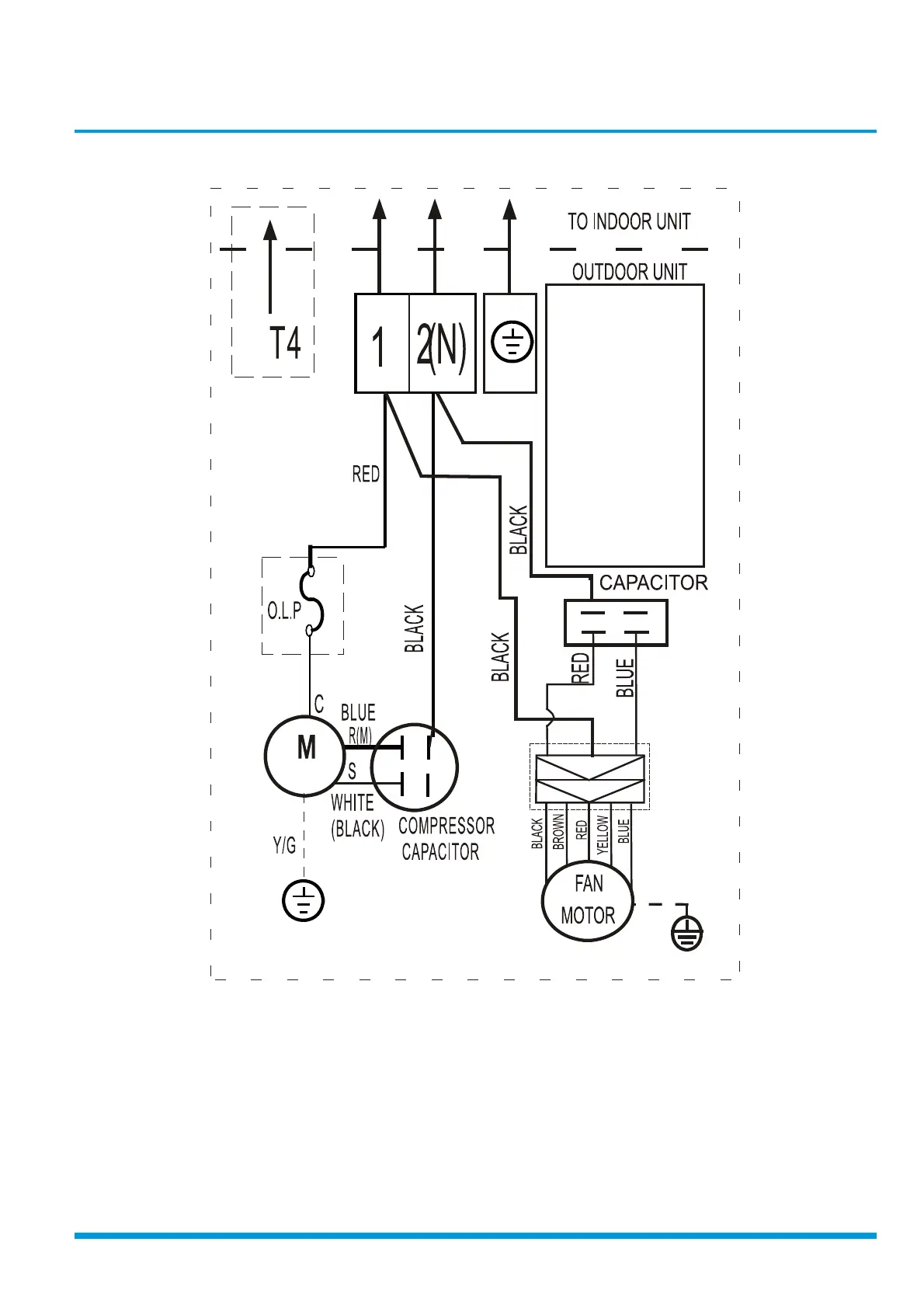

Outdoor unit wiring diagram: 16022000002522
1
NOTE:
1. The wi r i ng
di agr am is for
expl anat i on
pur pose onl y. The
act ual shape of
the component s may
be di f f er ent .
2. Symbol 1
indicates
compr essor
i nt er nal or
ext er nal
component s.
3.--------
i ndi cat es opt i onal
component s.
~
COMP
1
