Indoor Unit Disassembly 3
2. Indoor Unit Disassembly
2.1 Front Panel

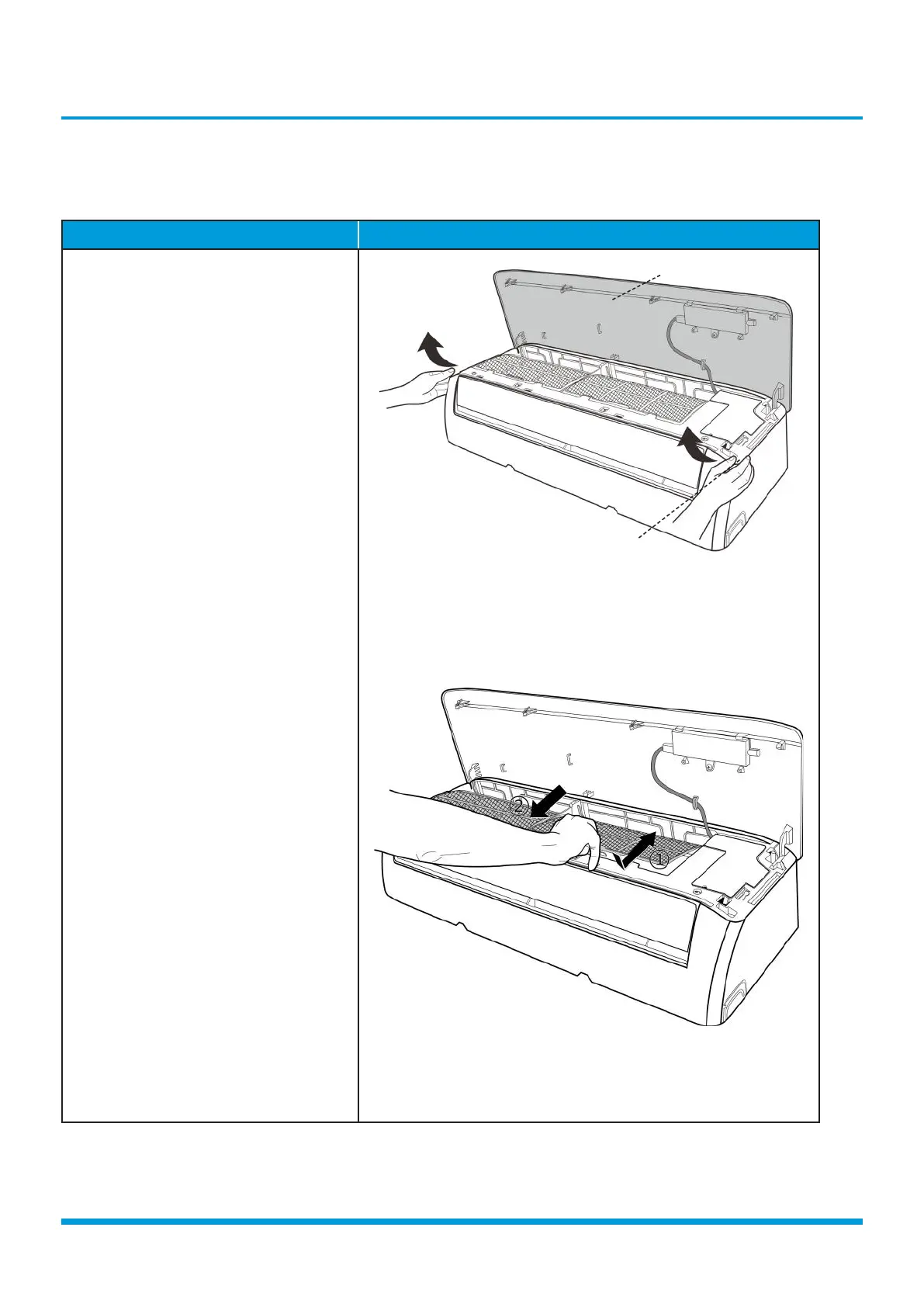

Procedure Illustration
1) Hold the front panel by the tabs on
the both sides and lift it (see CJ_AB_
INV_001).
2) Push up the bottom of an air
filter (step 1), and then pull it out
downwards (step 2) (see CJ_AB_
INV_002).
CJ_AB_INV_001
CJ_AB_INV_002
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Tab
To Next Page
