Indoor Unit Disassembly 17
2.5Step motor
Note: Remove the front panel and electrical parts (refer to 1. Front panel, 2. Electrical parts) before
disassembling step motor.
Procedure Illustration

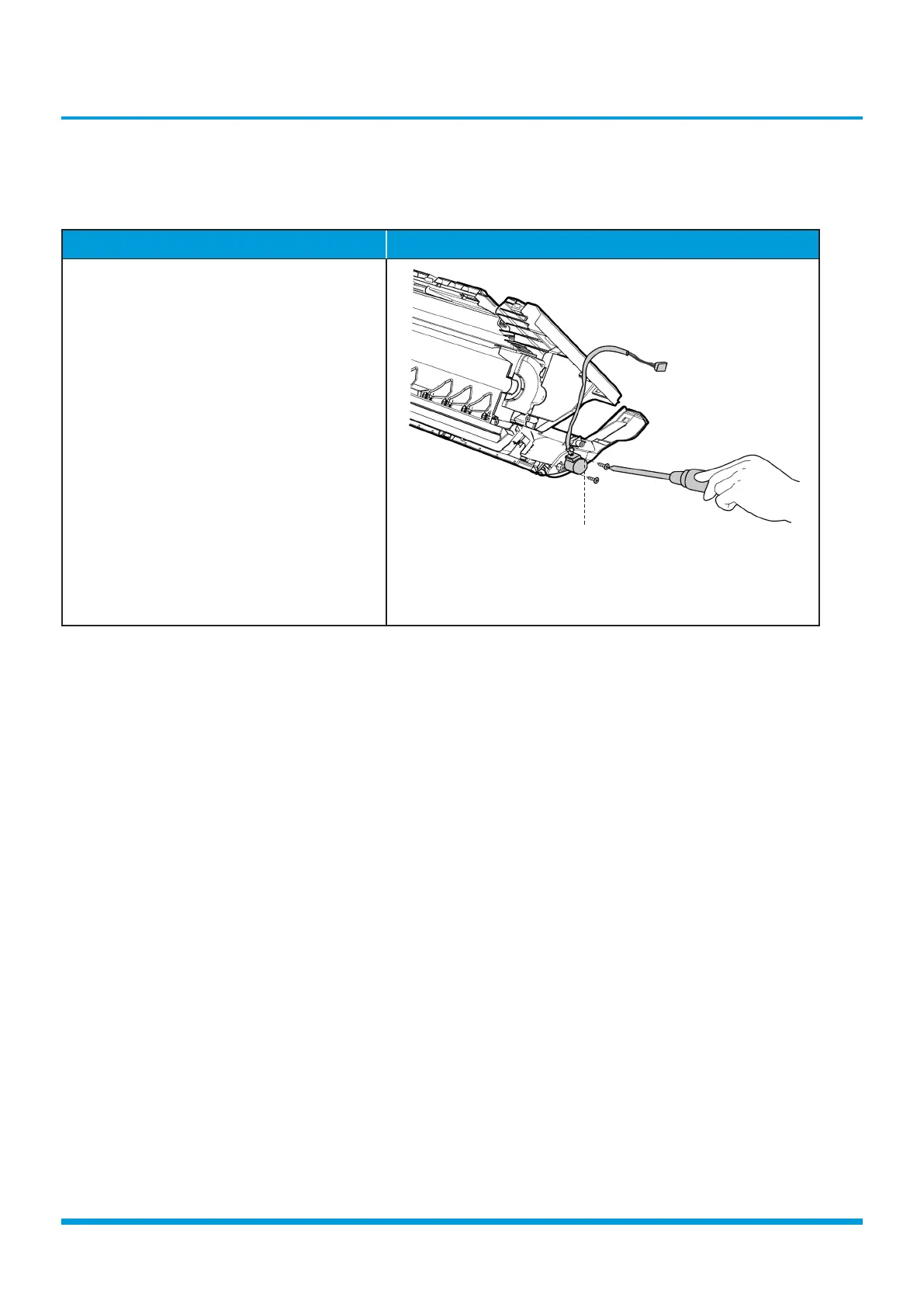

1) Remove the two screws, then remove the
stepping motor (see CJ_AB_INV_031).
CJ_AB_INV_031
Note: This section is for reference only. Actual unit appearance may vary.
Stepping Motor
