Indoor Unit Disassembly 13
2.3 Evaporator
Note: Remove the front panel and electrical parts (refer to 1. Front panel and 2. Electrical parts) before
disassembling evaporator.
Procedure Illustration

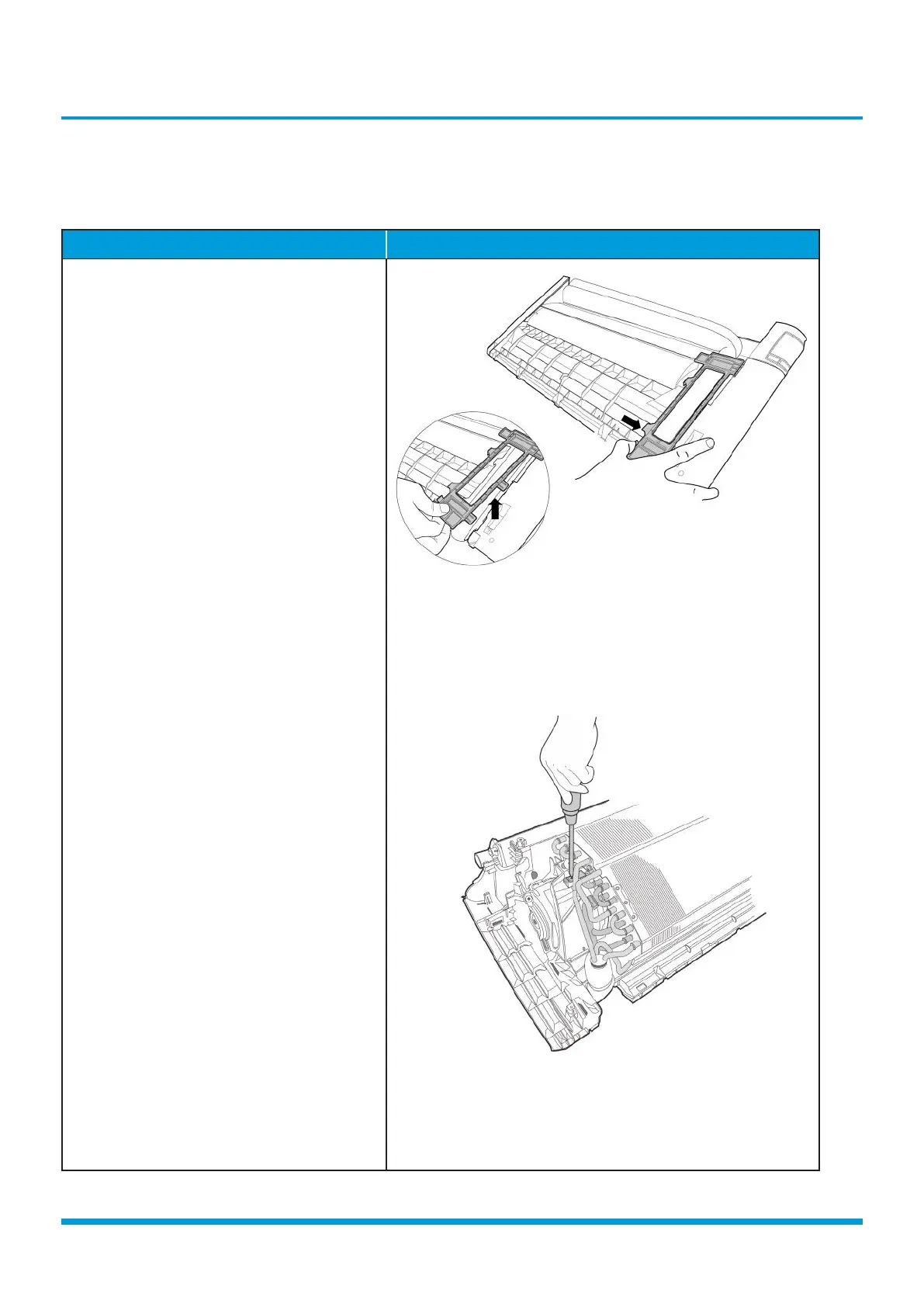

1) Disassemble the pipe holder located at the
rear of the unit (see CJ_AB_INV_023).
2) Remove the 1 screws on the evaporator
located at the fixed plate (see CJ_AB_
INV_024).
CJ_AB_INV_023
CJ_AB_INV_024
Note: This section is for reference only. Actual unit appearance may vary.
To Next Page
