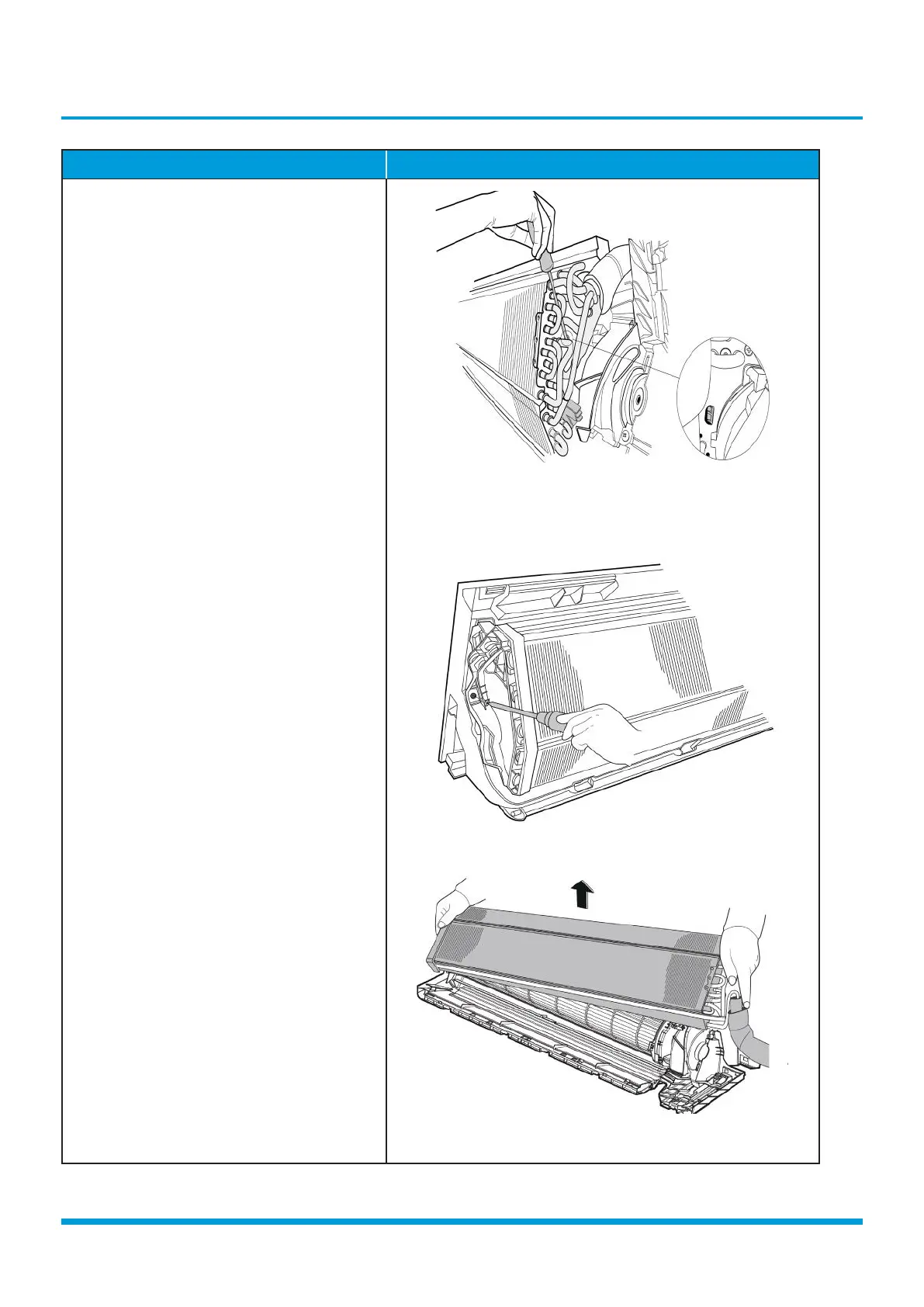

Indoor Unit Disassembly 14
Procedure Illustration
3) Release the hook on the evaporator (see
CJ_AB_INV_025).
Remote the one screw on the evaporator
located at the fixed plate (see CJ_AB_
INV_026).
4) Pull out the evaporator (see CJ_AB_
INV_027).
CJ_AB_INV_025
CJ_AB_INV_026
CJ_AB_INV_027
Note: This section is for reference only. Actual unit appearance may vary.
